3-63
(6) Remove the two cup S M3x6 Taptite screws, and then remove the Driver PCB ASSY from
the Driver PCB shield.

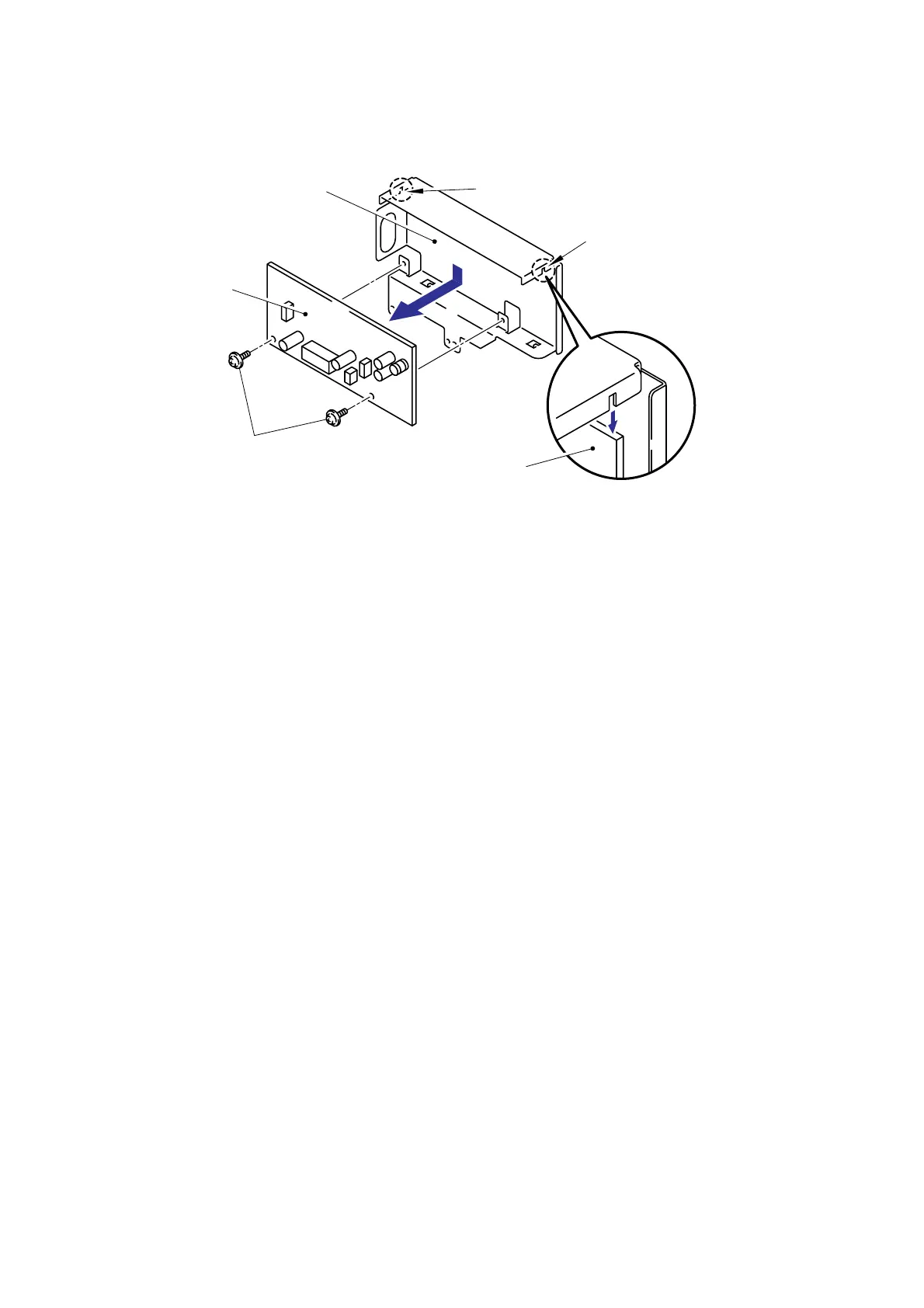

Fig. 3-52
Driver PCB ASSY
Driver PCB ASSY
Taptite, cup S M3x6
Driver PCB shield
Groove
Groove
