Confidential
3-118

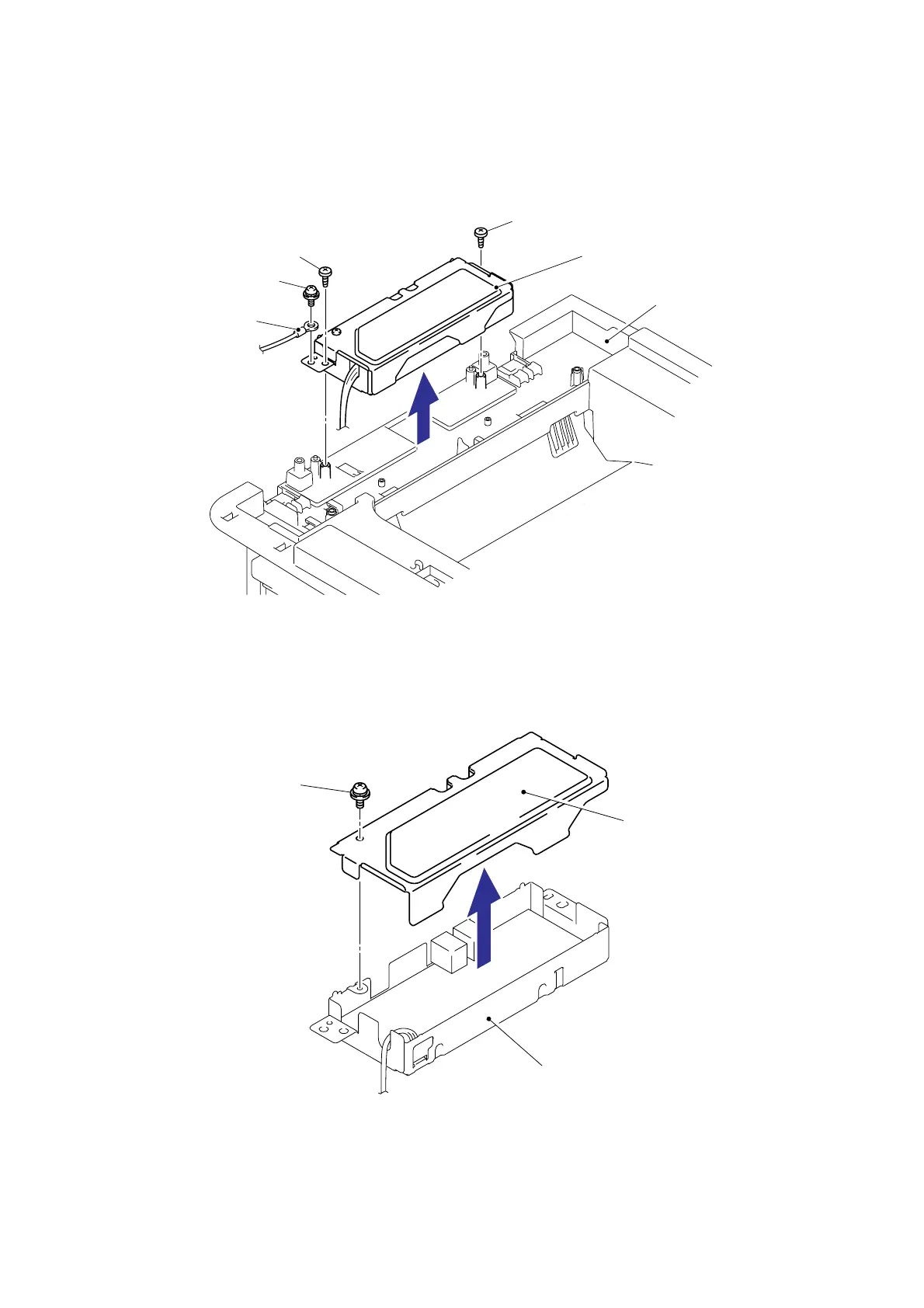

(4) Remove the Screw pan (S/P washer) M3.5x6, and then remove the FG harness NCU.
(5) Remove the two bind B M4x12 Taptite screws, and then remove the NCU unit from the
Joint covers ASSY.
Fig. 3-151
(6) Remove the Screw pan (S/P washer) M3.5x6, and then remove the NCU shield plate from
the NCU shield cover.
Fig. 3-152
NCU unit
Taptite, bind B M4x12
Screw pan (S/P washer) M3.5x6
FG harness NCU
Joint covers ASSY
Taptite, bind B M4x12
Screw pan (S/P washer) M3.5x6
NCU shield plate
NCU shield cover
