Confidential
3-136

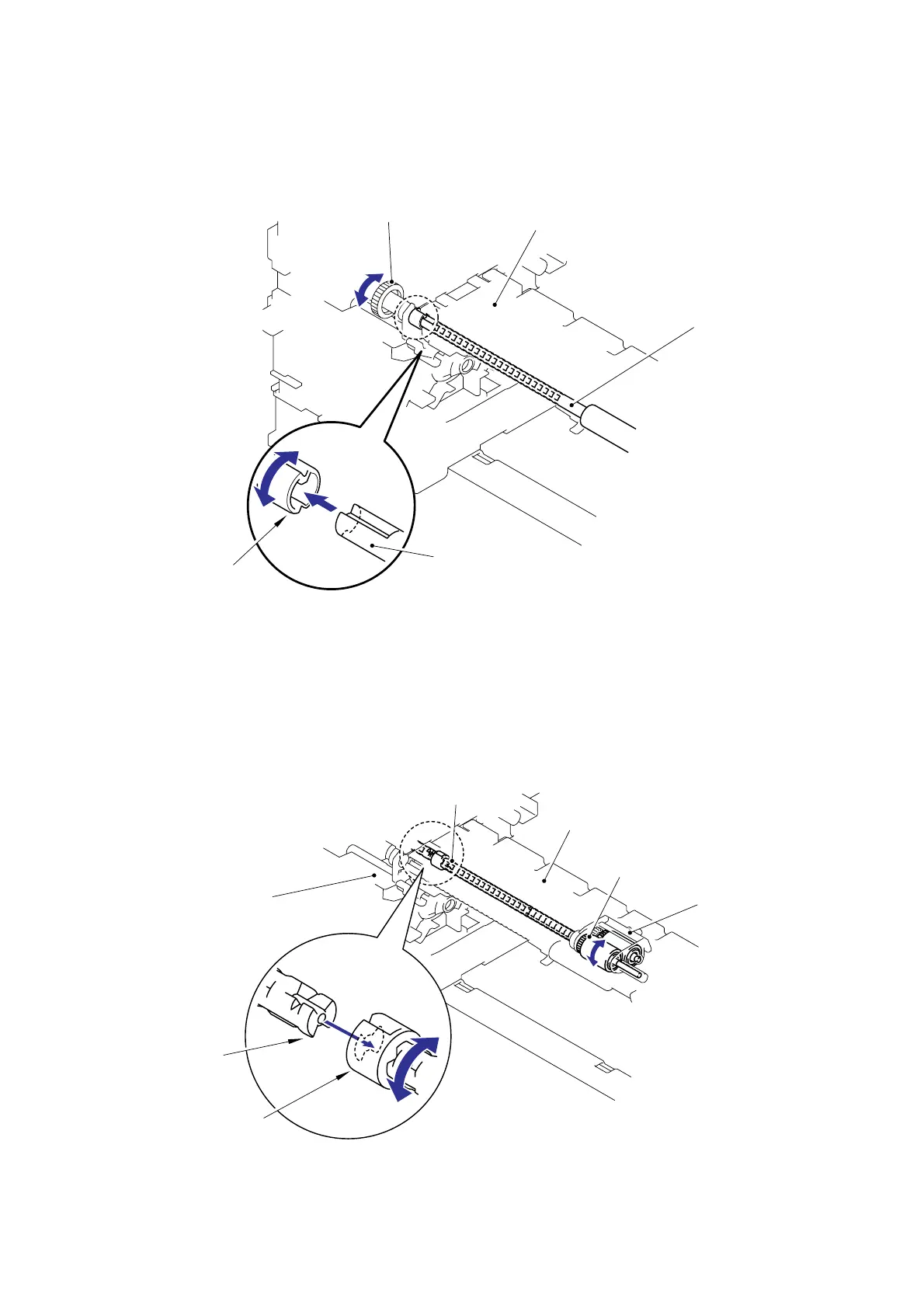

<Assembling the Feed roller shaft TR>
While moving the Paper feed frame unit to the left hand side, turn the Gear to align the
section “C” with the Feed roller shaft TR and put the shaft into the section “C”.
Fig. 3-184
<Assembling the Separation roller drive shaft>
While moving the Paper feed frame unit to the left hand side, turn the Separation roller of
the Roller holder ASSY to align the section “D” of the Separation roller drive shaft with the
section “E” of the Side frame L and put the section “E” into the section “D”.
Fig. 3-185
Paper feed frame unit
Gear
Feed roller shaft TR
Feed roller shaft TR
“C”
<Front>
<Left side>
Separation roller
Roller holder ASSY
Side frame L
“E”
“D”
<Front>
Separation roller drive shaft
<Left side>
Paper feed frame unit
To Next Page
