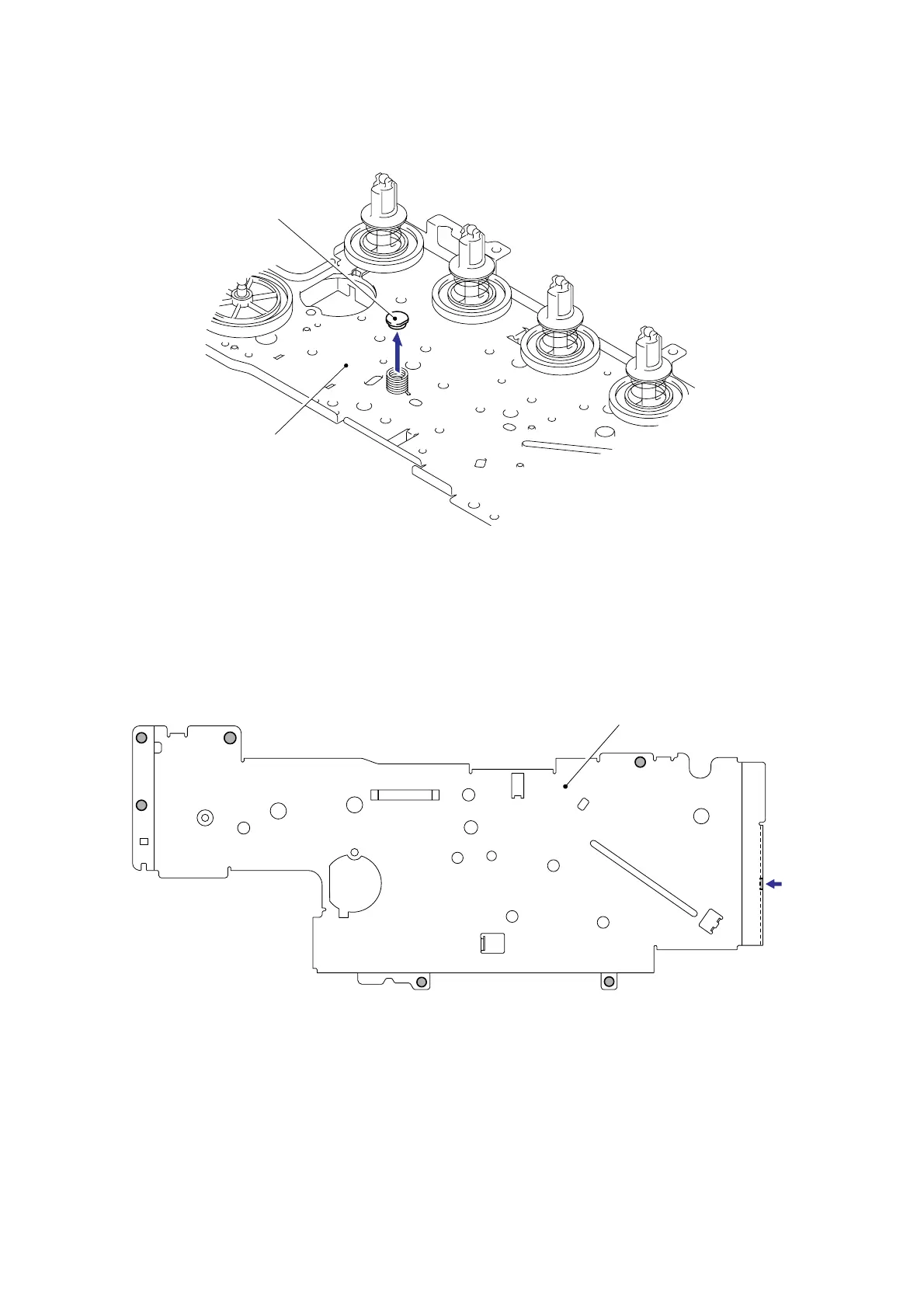

(6) Remove the Friction cap from the Develop gear plate ASSY.
Fig. 3-229
Assembling Note:
- When assembling the Develop gear plate ASSY onto the Frame unit, secure the screws in the
order of the numbers which are indicated on the plate.
5
6
1
3
4
7
2
Fig. 3-230
Develop gear plate ASSY
Friction cap
Develop gear plate ASSY
