Brother MFC-9840CDW - Page 327

Confidential
3-194

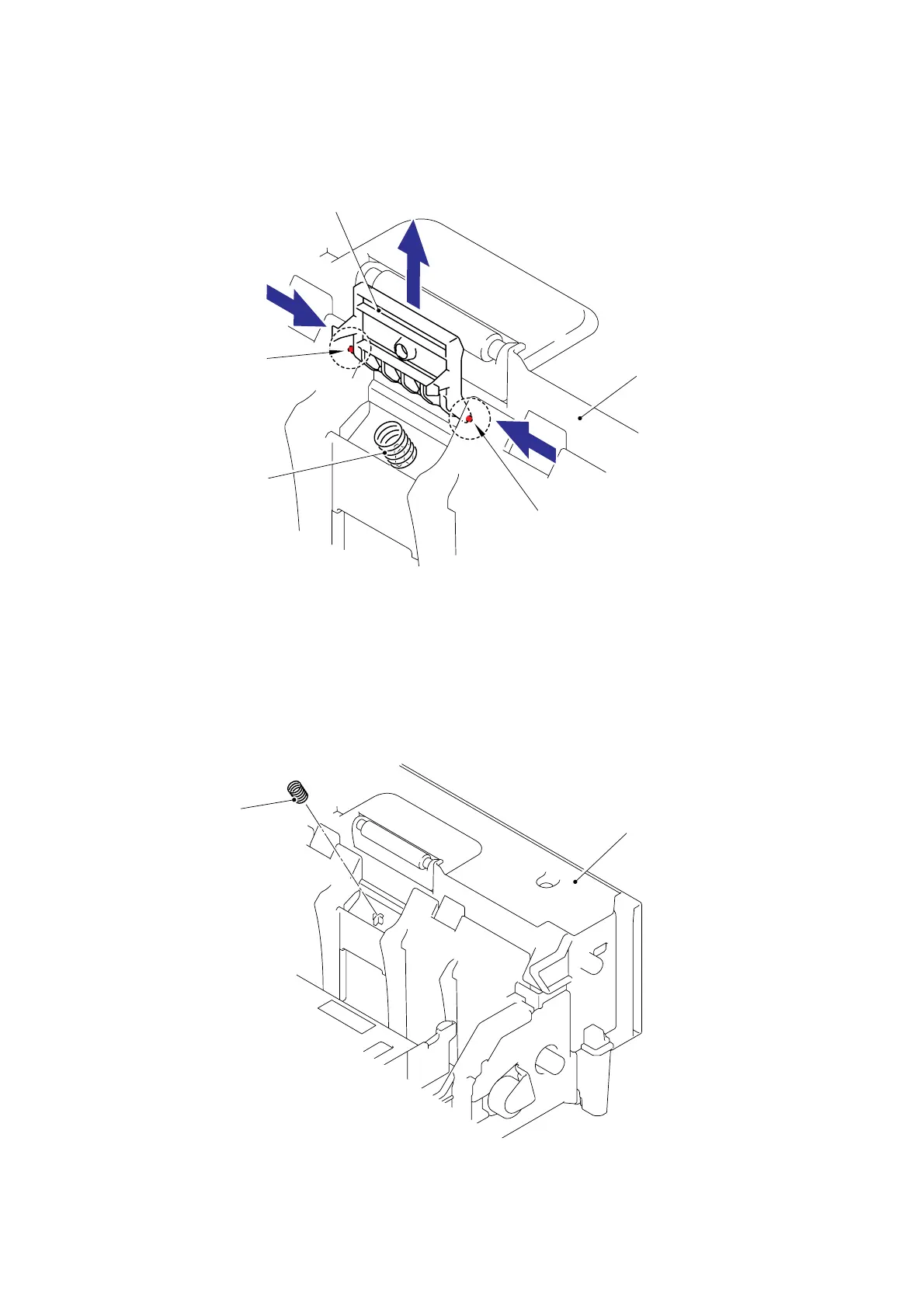

(3) Push both sides of the LT separation pad ASSY inwards to release the Pins and remove the
LT separation pad ASSY from the LT paper tray.
Fig. 3-289
(4) Remove the LT separation pad spring from the LT paper tray.
Fig. 3-290
LT separation pad ASSY
Pin
Pin
3b
3a
3a
<Front>
LT paper tray
LT separation pad spring
LT paper tray
<Front>
LT separation pad spring
