Confidential
3-208

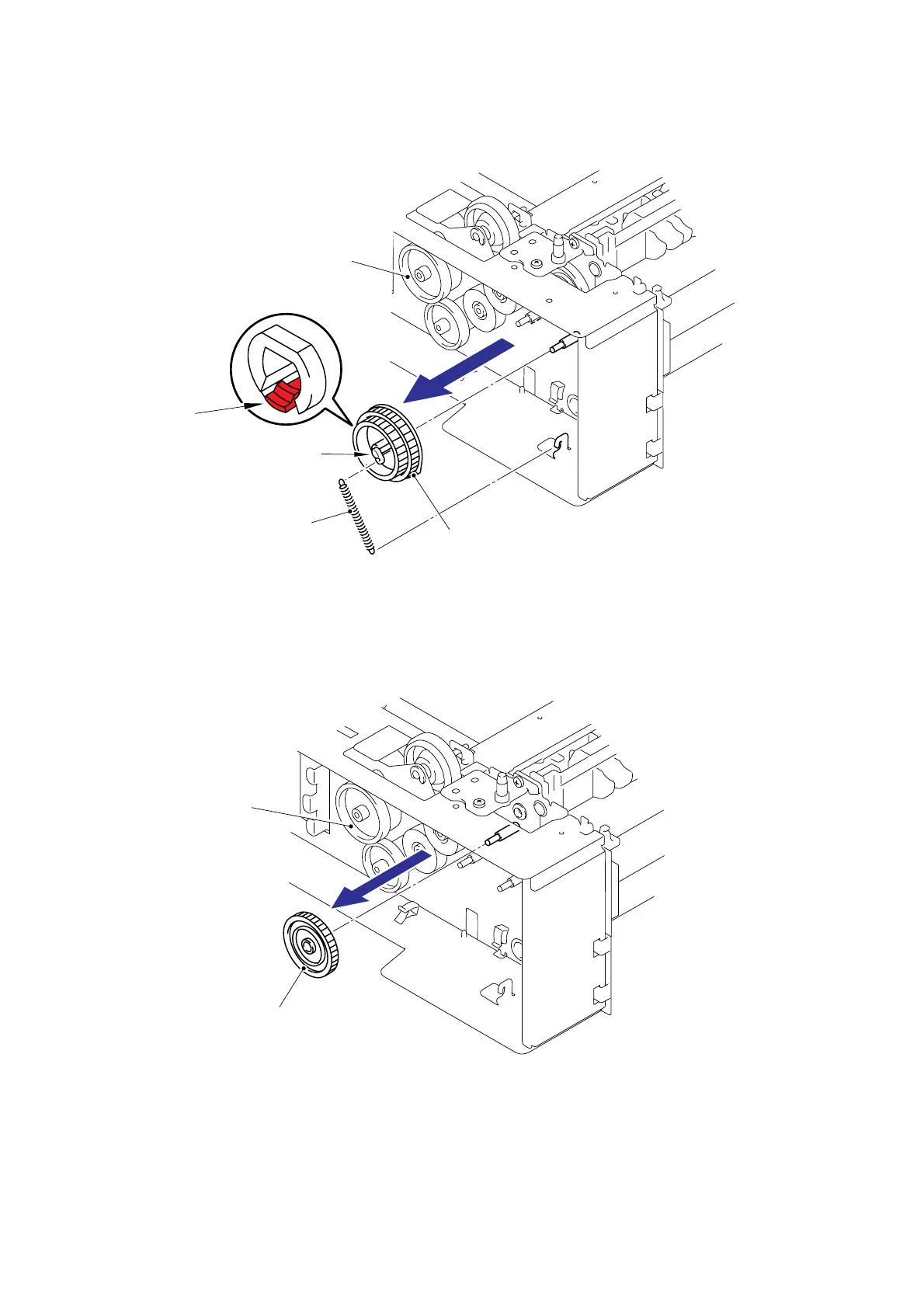

(9) Remove the Extension spring LT from the Spring hook and remove the Gear 46/55 from the
Drive unit by releasing the Hook.
Fig. 3-316
(10) Remove the Gear 46 LT from the Drive unit.
Fig. 3-317
Drive unit
Gear 46/55
Extension spring LT
Spring hook
Hook
Drive unit
Gear 46 LT
<Left side>
<Left side>
