Brother MFC-9840CDW Service Manual

Confidential
5-10
Note:
- To cancel this operation and return the machine to the initial stage of the maintenance mode
during the above procedure, press the Stop/Exit button.
- If there is a pause of more than one minute after a single-digit number is entered for double-
digit worker switch numbers, the machine will automatically return to the initial stage of the
maintenance mode.
[ 2 ] Printout of Worker Switch Data (Function code 11)
<Function>
The machine prints out the setting items and contents specified by the worker switches.
<Operating Procedure>
(1) Press the 1 button twice in the initial stage of the maintenance mode.
The “PRINTING” will appear on the LCD.
(2) The machine prints out the configuration list as shown in the figure below.
(3) Upon completion of printing, the machine beeps for one second and returns to the initial
stage of the maintenance mode.

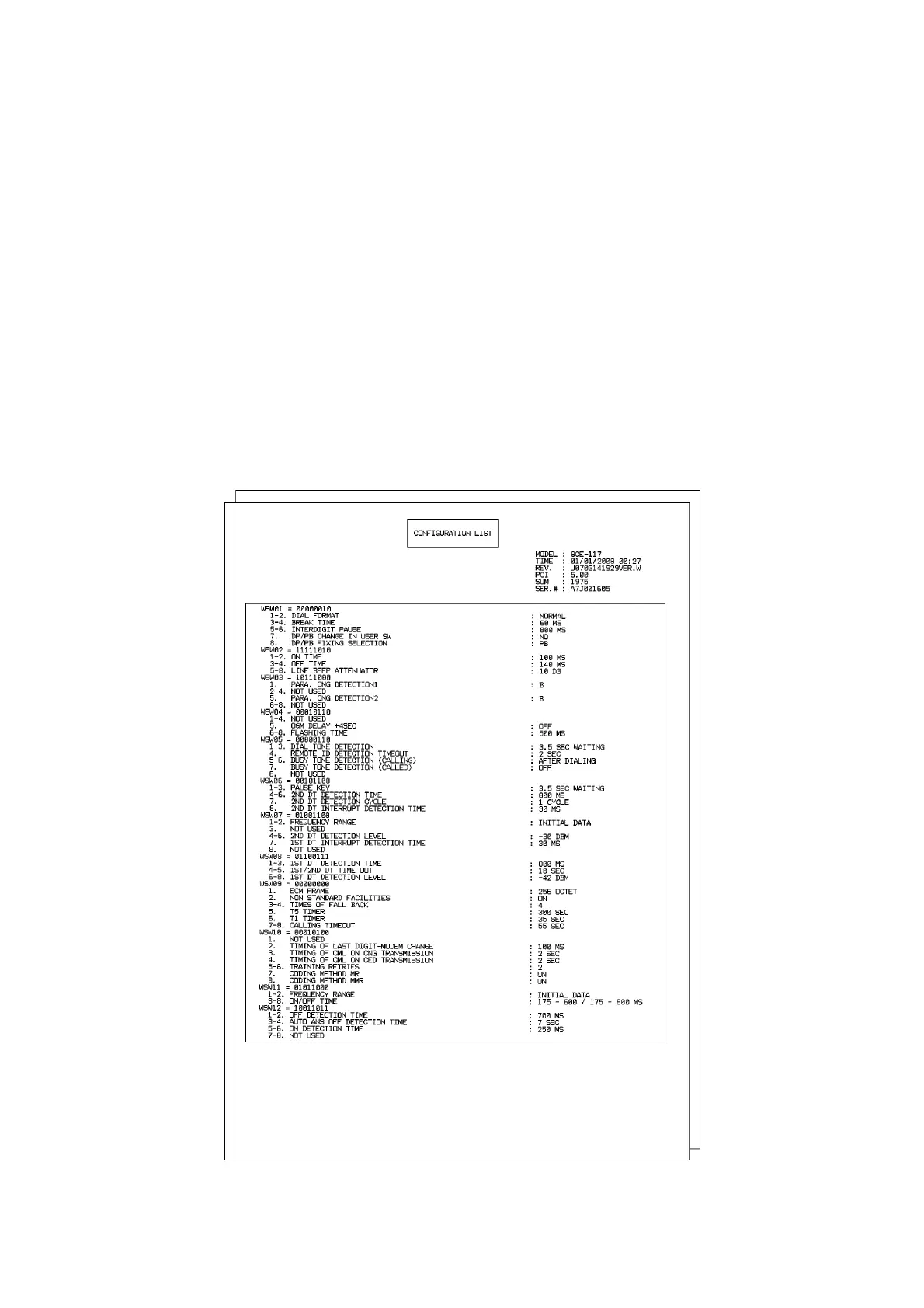

Fig. 5-3
