1-37

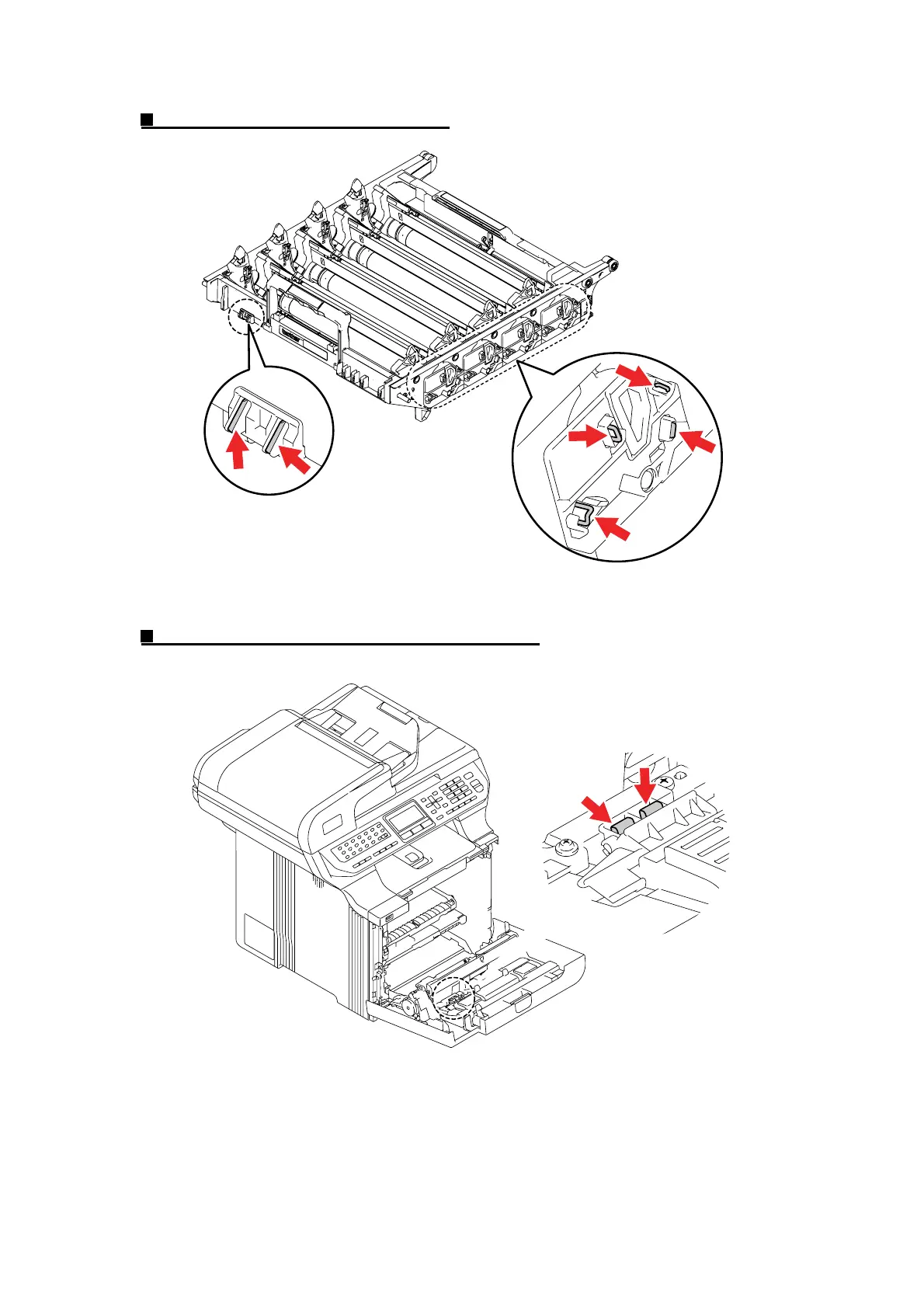

Electrodes location of the drum unit
Fig. 1-1
Electrodes location of the front door unit ASSY
Fig. 1-2
<How to clean the electrodes>
Turn off the power switch. Unplug the machine from the AC power outlet, and leave the machine
for a few minutes. Then, wipe the electrodes above carefully with a dry lint-free cloth. Be careful
not to change the shapes of the electrodes.
To Next Page
