Using the Squeegee Adjustment Tool
The MAX is equipped with its own adjustment tool for measuring the height of the squeegee. The
adjustment tool is located in the spare parts kit that accompanies the machine. The tool is used to
measure the distance between the lane surface and the squeegee extrusion. Refer to
Figure6-9.

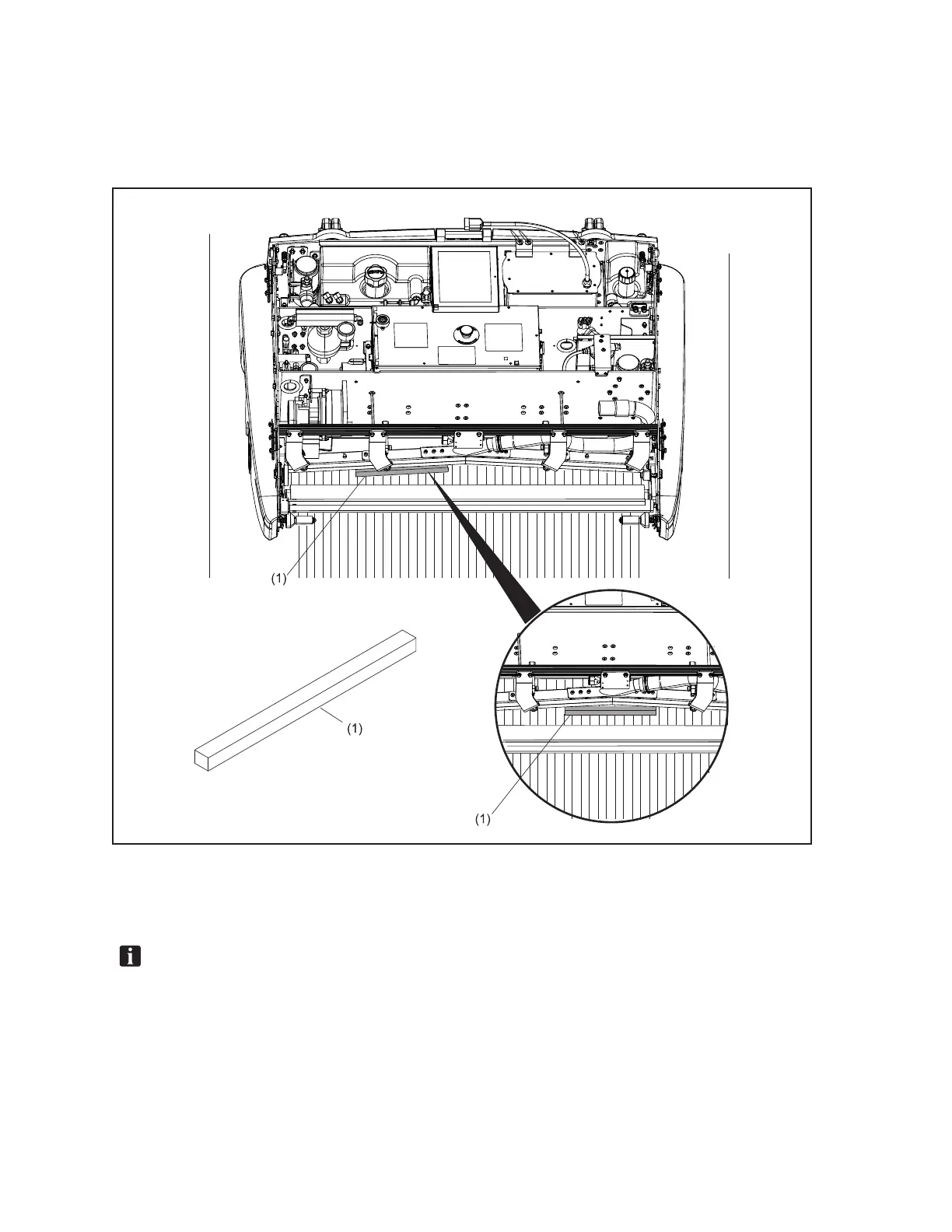

Figure6-9.UsingtheAdjustmentTool-SectionView
(1) SQUEEGEE ADJUSTMENT TOOL
NOTE: Refer to the Adjusting the squeegee blade height and Adjusting the buffer brush
height
inthissection.
