MAX Operation & Service Manual 107MAX Operation & Service Manual Section 6: Maintenance & Service 107
Adjusting the Down Stop for the Duster Contact Roller Pivot-Arm
Tools needed: 3/16” allen wrench, 7/16” Open-end wrench:
Refer to Figure 6-10.

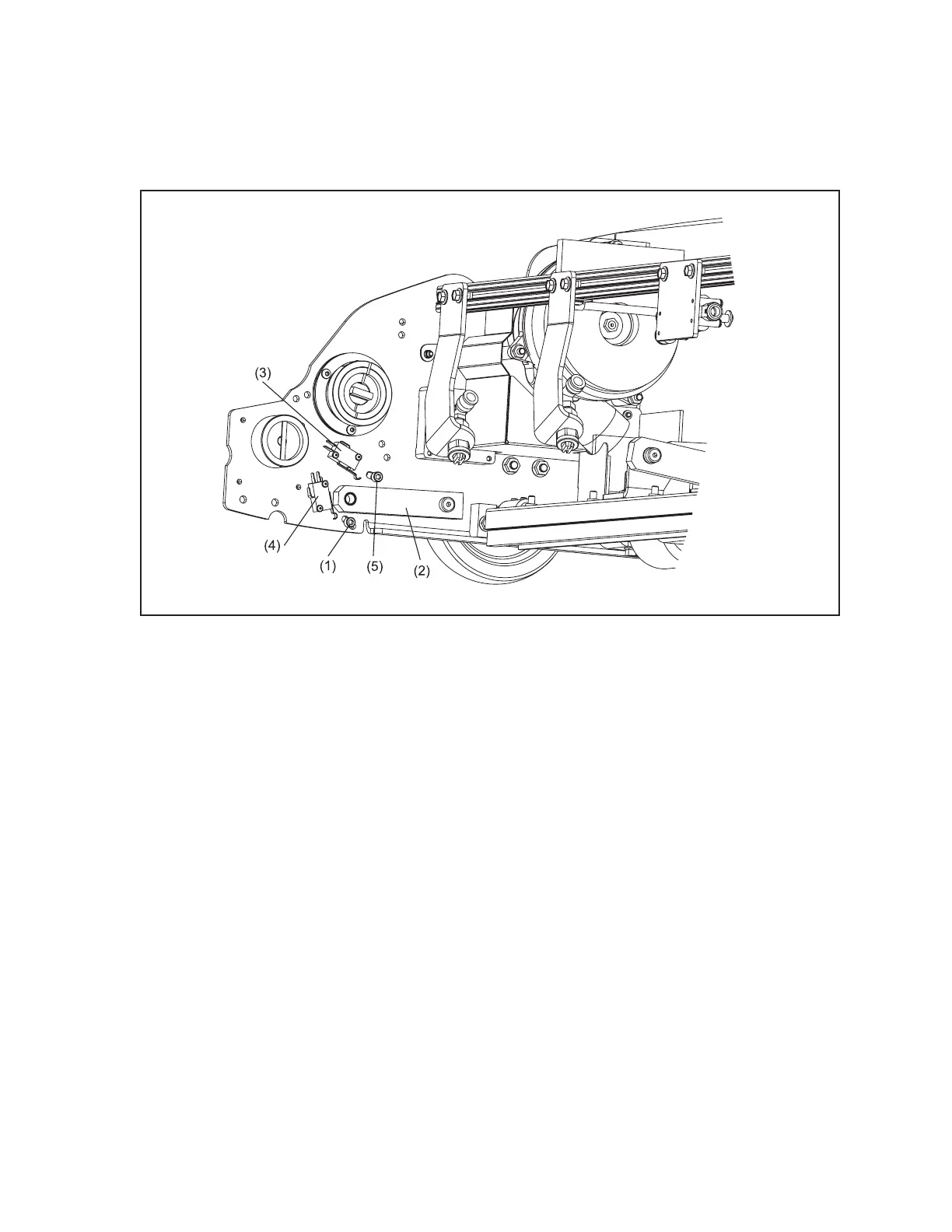

Figure6-10.AdjustingDownStop
(1) DUSTER CONTACT ROLLER DOWN
STOP BOLT
(2) DUSTER CONTACT ROLLER PIVOT
ARM
(3) DUSTER UP SWITCH
(4) DUSTER DOWN SWITCH
(5) DUSTER CONTACT ROLLER UP BOLT
1. Place the machine in transport position with the power off.
2. Locate the duster contact roller down stop bolt below the pivot arm of the contact roller.
3. Loosen the bolt using a 3/16” allen wrench and 7/16” open-end wrench and move the stop bolt
up or down in the slotted hole to adjust the position of the stop. The stop bolt should be located
in the center of the adjustment slot on both the 7 and 10-pin sides.
