108 MAX Operation & Service Manual108 Section 6: Maintenance & Service MAX Operation & Service Manual
Adjusting the Up Stop for the Duster Contact Roller Pivot-Arm
Tools needed: 3/16” Allen wrench, 7/16” Open-end wrench.
Refer to Fig ure 6 -11.

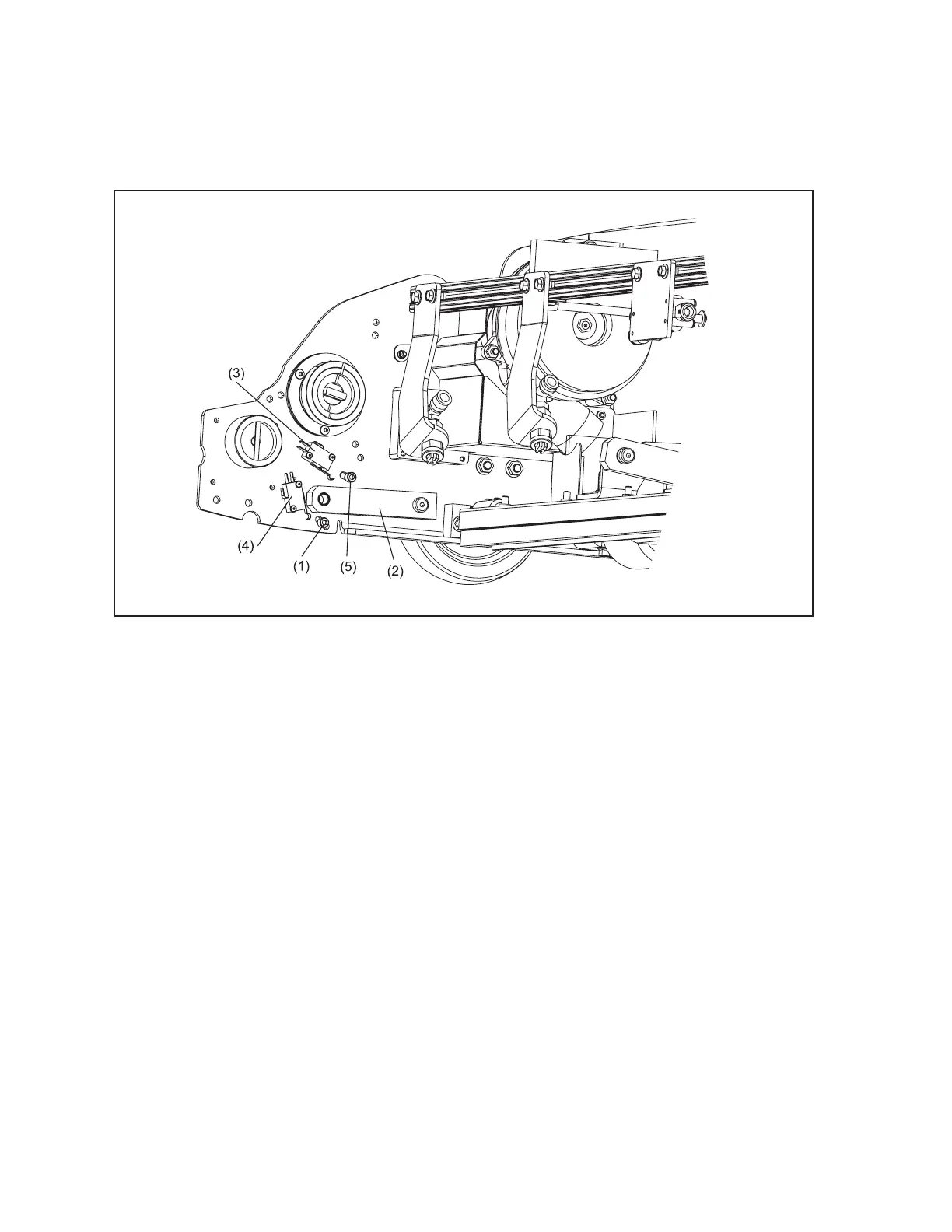

Figure6-11.AdjustingUpStop
(1) DUSTER CONTACT ROLLER DOWN
STOP BOLT
(2) DUSTER CONTACT ROLLER PIVOT
ARM
(3) DUSTER UP SWITCH
(4) DUSTER DOWN SWITCH
(5) DUSTER CONTACT ROLLER UP BOLT
1. Place the machine in the transport position with the power off.
2. Locate the duster contact roller up stop bolt above the pivot arm of the contact roller.
3. Loosen the bolt using a 3/16” allen wrench and 7/16” open-end wrench and move the stop bolt
up or down in the slotted hole to adjust the position of the stop.
4. The stop bolt should be located so that when the duster contact roller pivot arm is against the up
stop bolt it allows the up switch to be completely engaged, but does not push the arm of the up
switch past the switch body. Refer to Figure6-11.
