110 MAX Operation & Service Manual110 Section 6: Maintenance & Service MAX Operation & Service Manual
10. Verify the placement of the duster up switch.
a. The switch should be engaged when the contact roller pivot arm is against the up stop.
b. Loosen the screw and adjust the position of the switch until it is correct. Do not allow the
pivot arm to push the up switch arm past the body of the switch.
11. Replace the duster cloth.
12. Replace the side cover.
Adjusting the Squeegee Blade Height
Tools needed: Squeegee adjustment tool, ½” wrench, 7/16” socket with long extension.
Adjustment: 7/16” to ½” (min/max on adjustment tool)
Refer to Figure6-12.

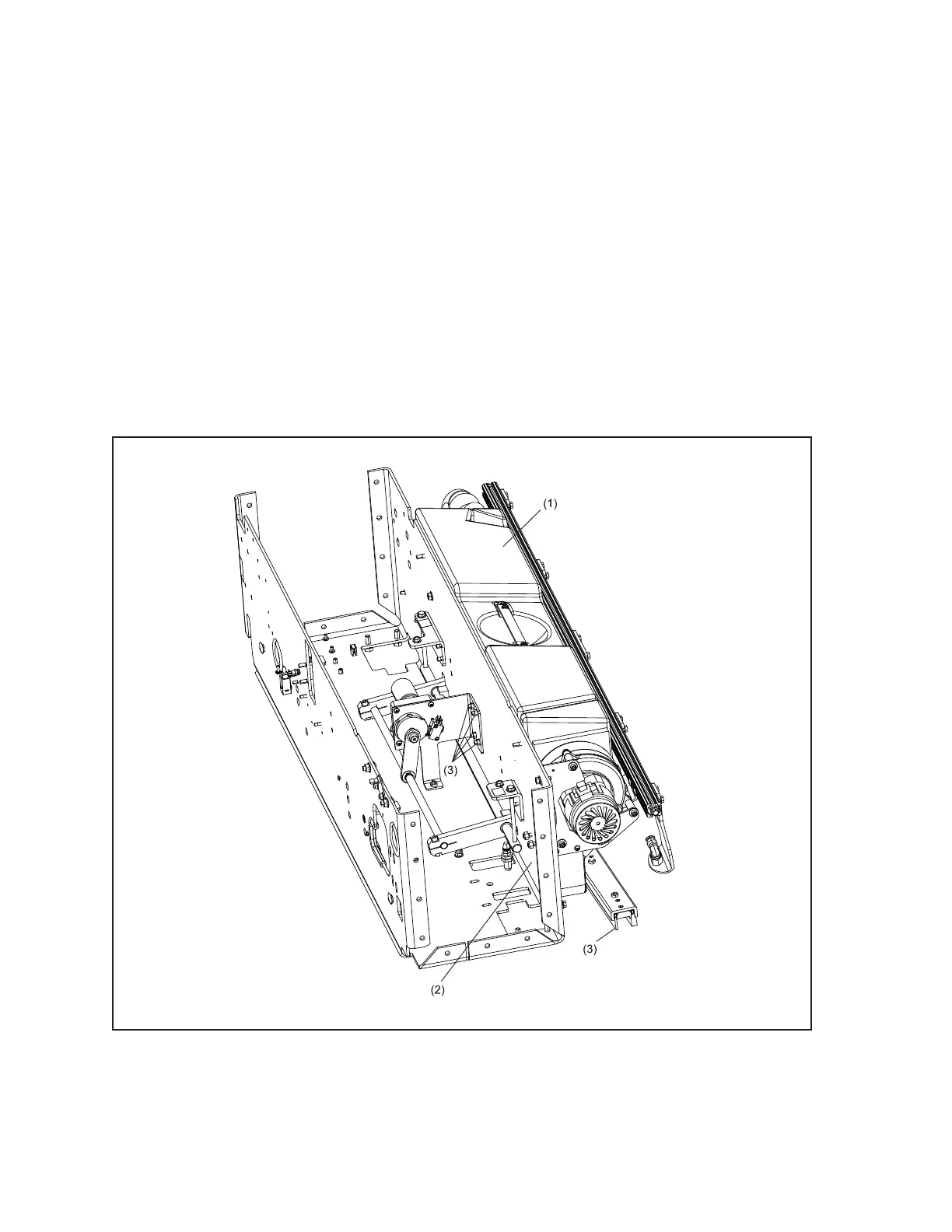

Figure6-12.AdjustingSqueegeeBladeHeight
(1) WASTE RECOVERY TANK
(2) FRONT FRAME DIVISION WALL
(3) SQUEEGEE BLADE
