MAX Operation & Service Manual 115MAX Operation & Service Manual Section 6: Maintenance & Service 115
Replacing the Squeegee Up/Down Switches
Tools needed: 1/16” allen wrench, 3/8” socket wrench with extension.
Parts needed: replacement switches (Part Number 11-616026-000).
Refer to Figure6-14.

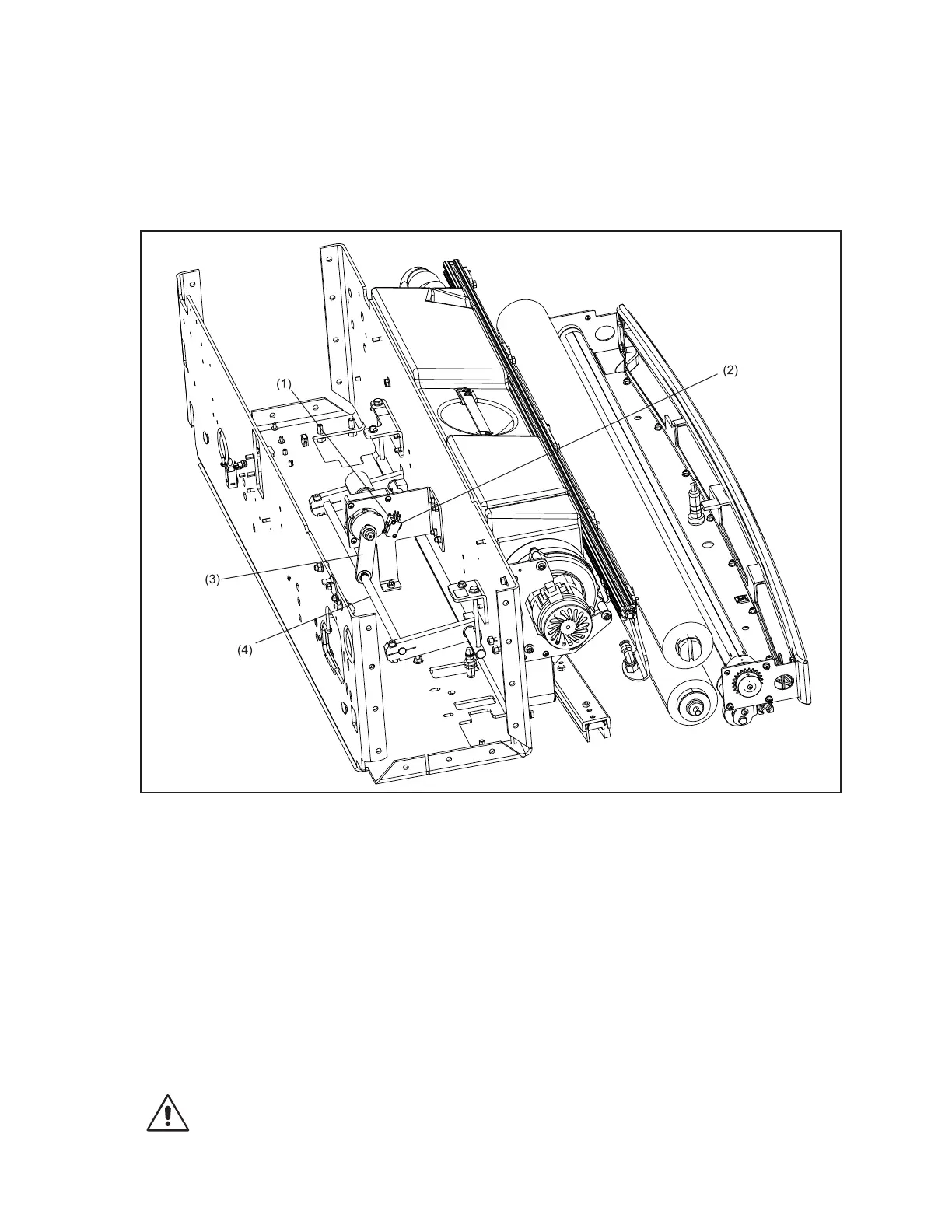

Figure6-14.ReplacingSqueegeeUp/DownSwitches
(1) SQUEEGEE UP SWITCH
(4) SQUEEGEE LIFTING LINKAGE
(2) SQUEEGEE DOWN SWITCH (3) SQUEEGEE PIVOT ARM
1. Place machine in operating position with the power supply disconnected and open the cover.
2. Remove the electronic enclosure and set aside using this process:
a. Disconnect all cables from the sides and rear of the enclosure.
b. Loosen and remove 4 bolts that secure electronic enclosure to mounting brackets.
c. Remove and set aside.
CAUTION! Do not use emergency stop button as a handle to lift enclosure
