MAX Operation & Service Manual 117MAX Operation & Service Manual Section 6: Maintenance & Service 117
Draining the Cleaner Supply Tank
Tools needed: None.
Parts needed: Drain tubing found in the spare parts kit, spare container.
Refer to
Figure6-15.
(2)
(6)
(7)
(9)
(3)
(1)
(8)
(5)
(4)

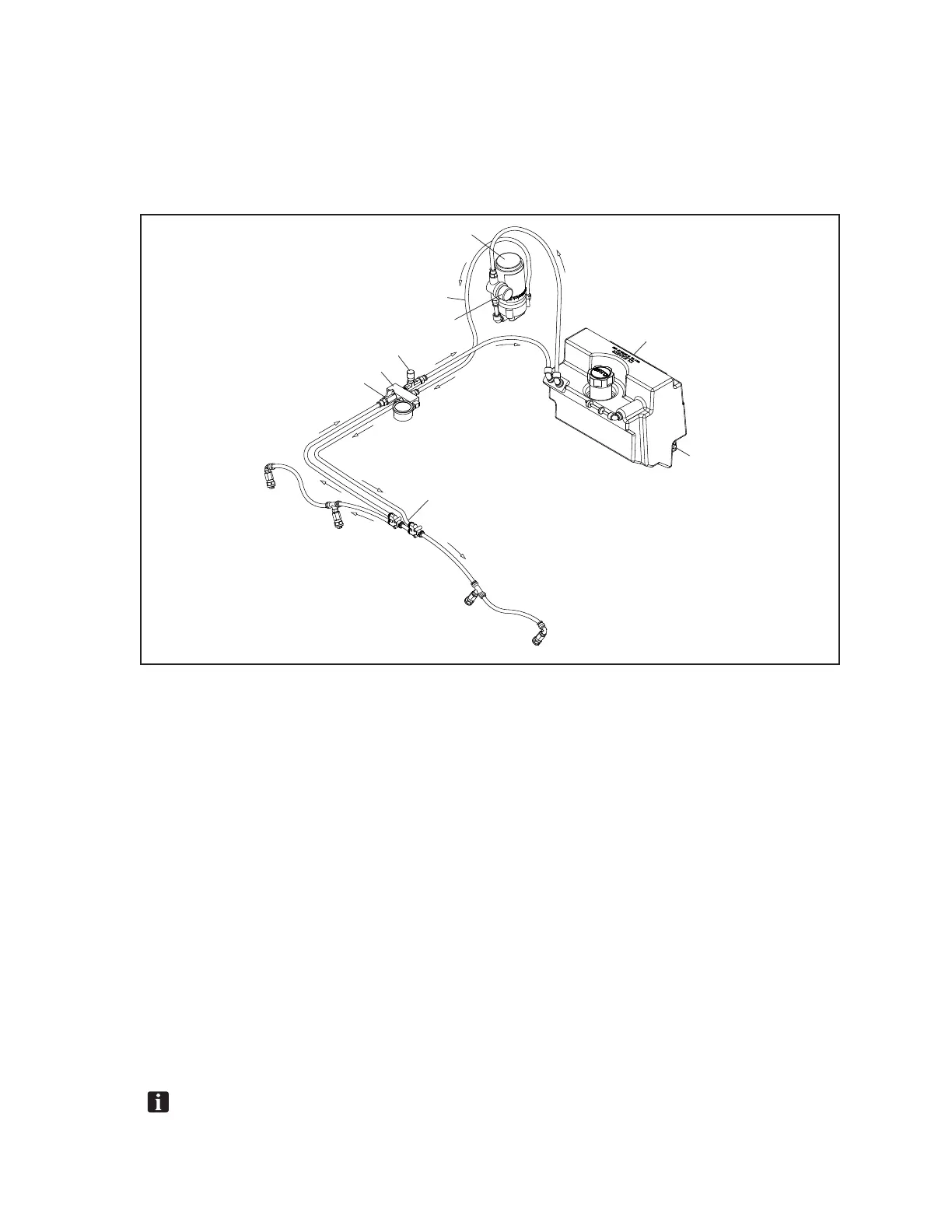

Figure6-15.DrainingtheCleanerSupplyTank
(1) CLEANER SHUT OFF VALVE
(2) CLEANER SUPPLY TANK
(3) CLEANER PUMP
(4) CLEANER MANIFOLD
(5) SUPPLY TUBING
(6) CLEANER LEVEL FLOAT SENSOR
(7) CLEANER SCREEN FILTER
(8) PRESSURE CONTROL VALVE
(9) DISCONNECT TO USE DRAIN TUBE
1. Place the machine in the operator position and supply power.
2. Place a rag underneath the cleaner manifold.
3. Disconnect the supply tubing from the left hand (7-pin side) top position of the union “Y”
assembly. Refer to number (9) in Figure6-15.
4. Attach the drain tubing with the 3/8” elbow union to the supply tubing removed in step 3.
5. Route the drain tubing into a container and hold in place.
6. Go to Cleaning Diagnostics and turn on the cleaner pump.
7. Continue to run pump until cleaner has been completely drained.
8. Remove the drain tubing and reconnect the supply line to the manifold.
IMPORTANT!:Itisveryimportanttomakesurethetubingisnotdamagedandthatitis
insertedcompletelyintothetting.
