MAX Operation & Service Manual 49MAX Operation & Service Manual Section4:UnderstandingTheTabletInterface49
Exporting Patterns to a USB Drive
1. Insert the USB into the USB port towards the top right corner of the tablet.
a. The bottom left corner “lane machine status” icon will change when the USB connects to
the tablet.
2. Select patterns to Export by touching the check box located to the left of the pattern name and
the “Export” icon will highlight. Refer toFigure4-19.

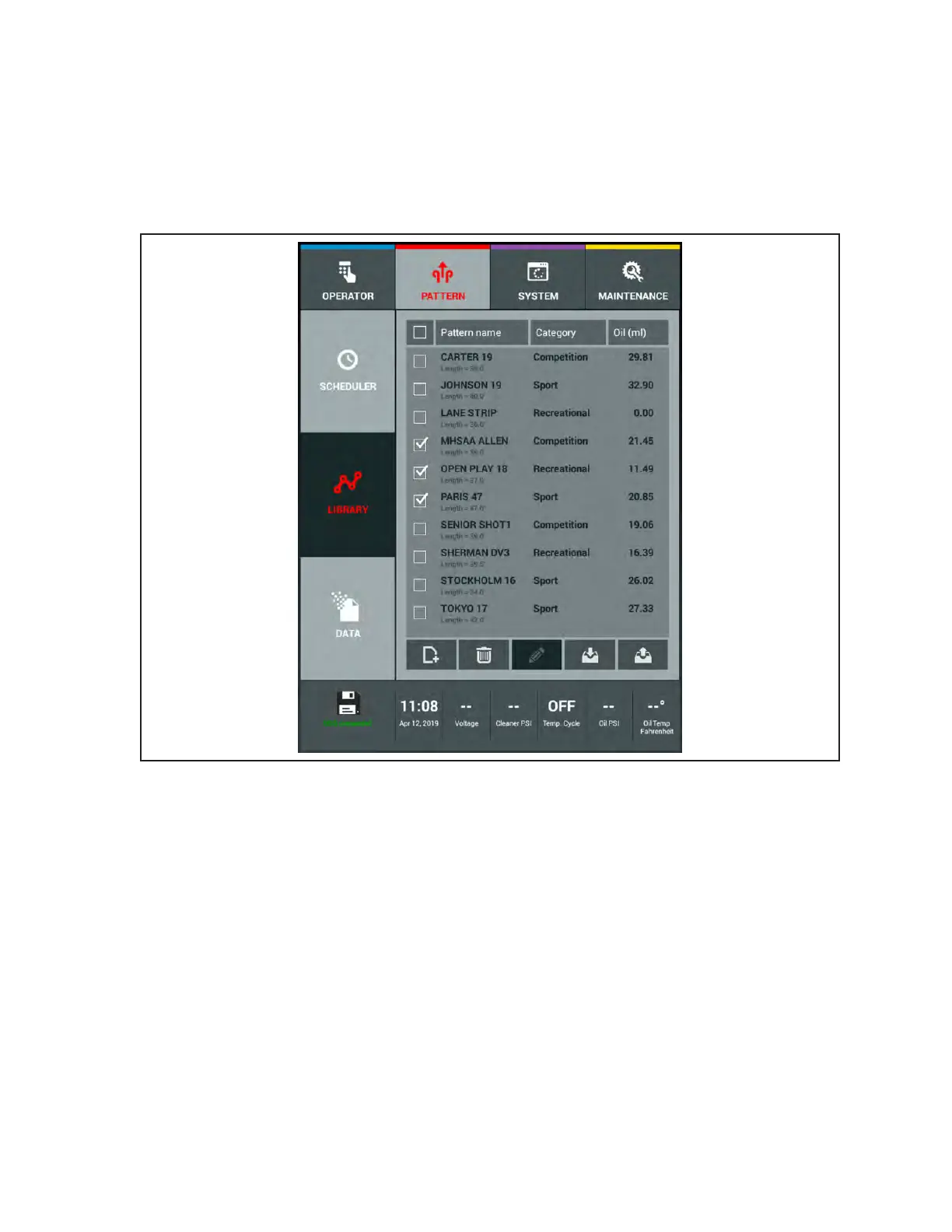

Figure4-19.PatternExportSelection
