68 MAX Operation & Service Manual68 Section4:UnderstandingTheTabletInterface MAX Operation & Service Manual
Cleaning
This menu lets you view the current status of all sensors or switches, and view or test all motors in the
cleaning system. Refer to Figure4-36.
NOTE: Therearetwowayswetestcomponentfunctions.Somecomponentswillrunfor
20seconds(vacuum,cleanerpump)whileothersmaytogglebetweensensors(dustercloth,
squeegee).Ifyouareunsurehowtoproperlytest,contactBrunswickTechnicalSupportoryour
BrunswickDistributor

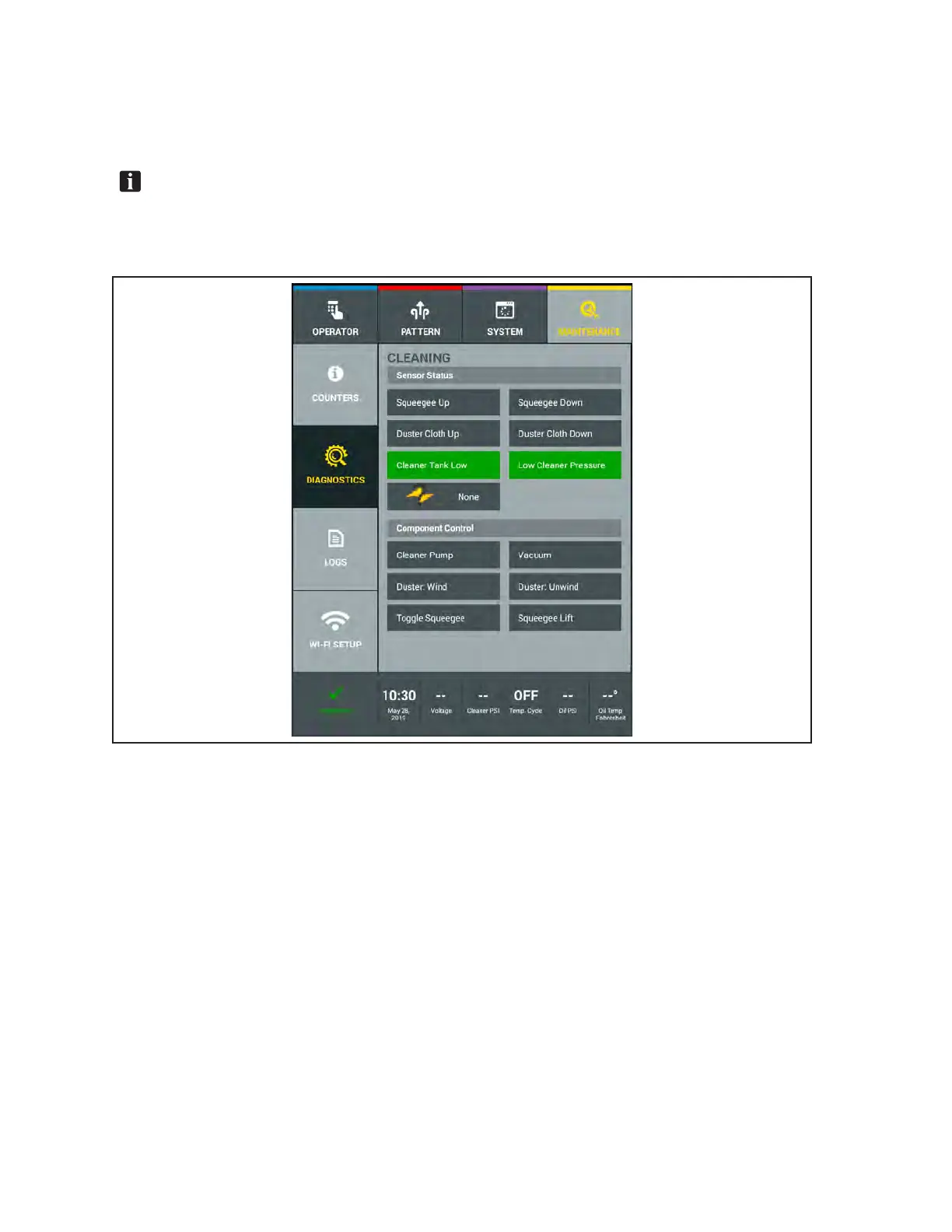

Figure4-36.MaintenanceDiagnosticsCleaning
To view a cleaning system sensor position or test a motor function:
1. Go to the Maintenance menu and select Diagnostics, then select Cleaning.
2. Select the Component Function you wish to test by pressing that button.
3. If there are corresponding sensors, you will see the Sensor Status change.
