Canon MVX200 E - Separation of Top Cover Ass’y

MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
5

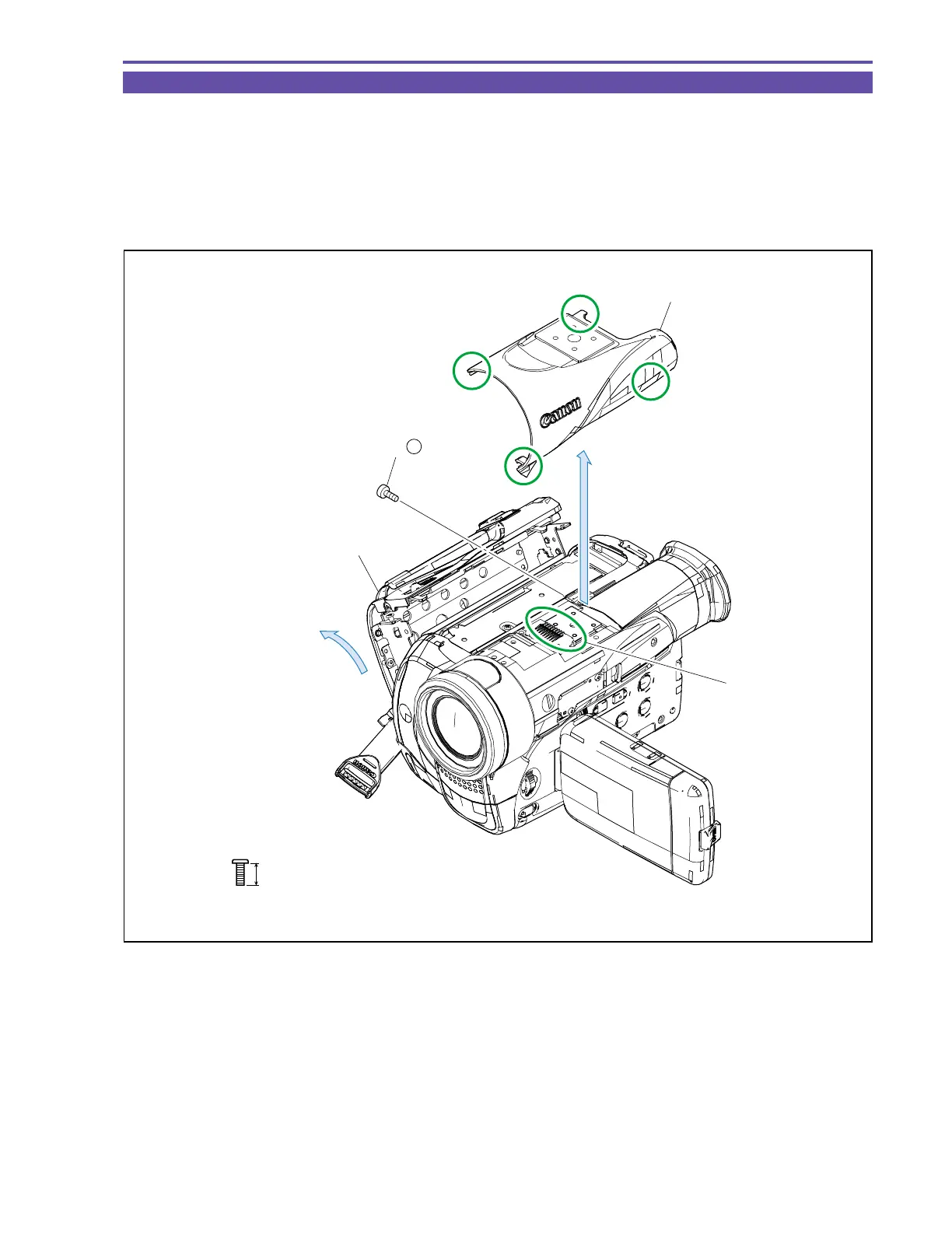

1-3 Separation of Top Cover Ass’y
(1) Open the Cassette Cover, and remove one screw (b × 1).
(2) Disengage claws A and B. While being free from part E of the Shoe Connector, pull up the claw A and claw B sides to demount the
Top Cover Ass’y.
<Note on Reassembling>
(1) When remounting the Top Cover Ass’y, engage claws B and C first. Then, while being free from the part E of the Shoe Connector,
insert the claw A and part D sides for engagement.
Fig. 2
5mm
Metal
M1.7
b
Top Cover Ass'y
Cassette Cover
Claw A
Part D
Part E
Claw B
Claw C
(1) - b
(2)
(1)
