Canon MVX200 E - COM-DC Level Adjustment

MVX250i E, MVX200i E, MVX200 E
SERVICE MODE · ADJUSTMENT
31
5-6-7 COM-DC Level Adjustment
MODE Card playback of monochrome master (still picture)
M. EQ. Oscilloscope
TP/TRIG. Extension connector - pin 22 (EVF COM) / VIDEO OUT
SPEC. 3.20 ± 0.05 [V] (DC. P-P center of EVF COM to GND level)
Procedure)
(1) According to the table shown below, carry out adjustment in
the card playback mode of the monochrome master.

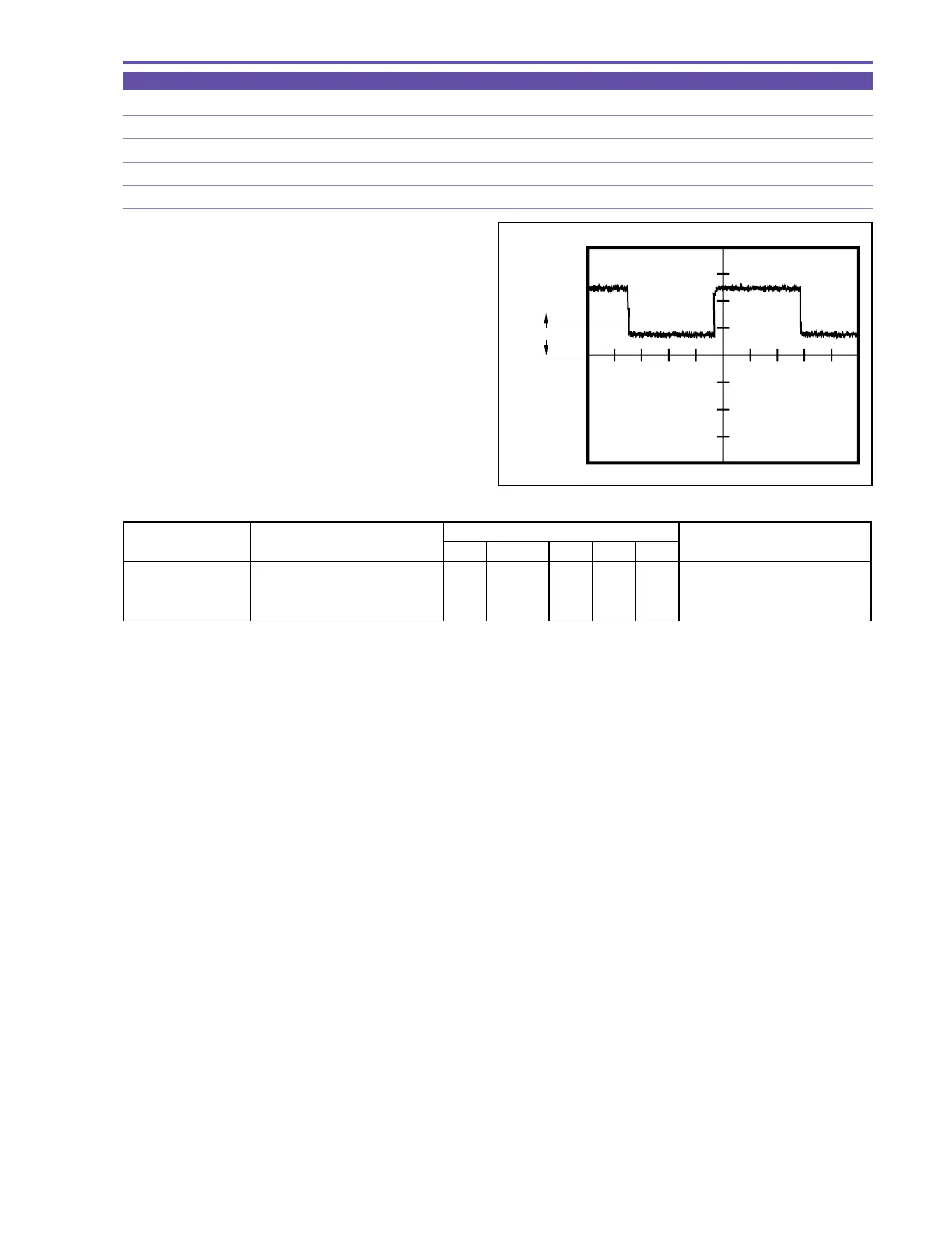

Fig. 23
3.20V ± 0.05V
CS Function MD ADDR DT
COM-DC Level 1) Make the setting shown at right
.
4 11 ST 000A "ADJ" Start of setting
Ajustment 2) Perform storing.
↑↑
RD
↑
ADJ Completion of setting
(press the PAUSE button.)
STEP PROCEDURE
MONITOR
Microcomputer operation
