Canon MVX200 E - Virtual EEPROM and Flash Memory Writing

MVX250i E, MVX200i E, MVX200 E
SERVICE MODE · ADJUSTMENT
21
5-3-3 Virtual EEPROM and Flash Memory Writing
SPEC. Automatic writing
Procedure)
(1) According to the table shown below, write adjustment data (5-3-1) into the virtual EEPROM and flash memory.
STEP PROCEDURE Microcomputer operation
EEPROM & FLASH WRITING CS Function MD ADDR DT ST
1 1) Make the setting shown at right. 2 08 ST 320F 00
2) Perform storing.
↑↑
RD
↑
05 Completion of virtual EEPROM writing.
(press the PAUSE button.) Completion with ST:05, NG with ST:09
2 1) Make the setting shown at right. 0 08 ST 0081 -- Preparation for flash memory updating.
2) Perform storing.
↑↑
RD
↑
Execution of flash memory updating.
(press the PAUSE button.)

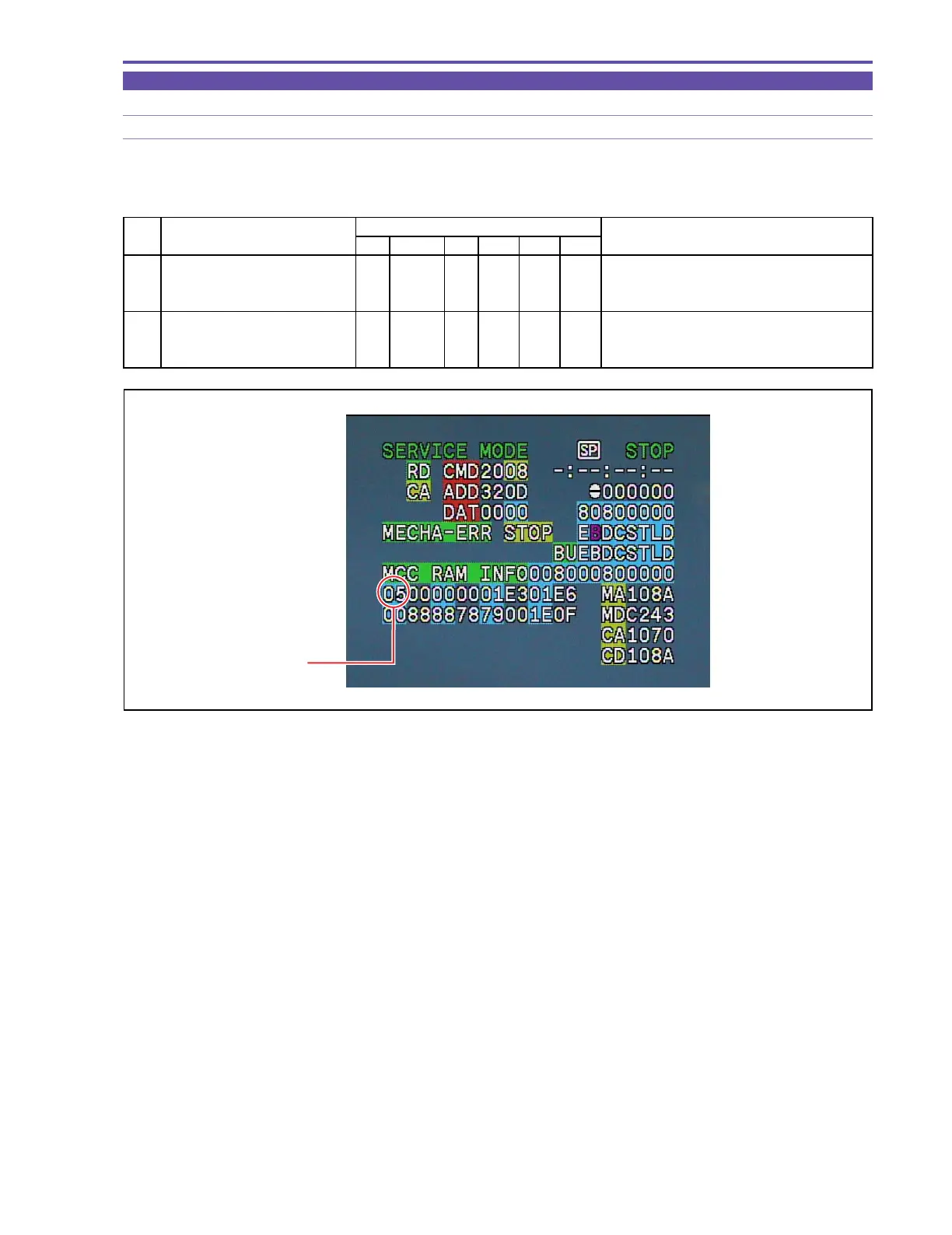

MONITOR
Fig. 18
ST
