Canon MVX200 E - Disassembly of Lens Unit

MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
47
1-36 Disassembly of Lens Unit
(1) Remove seven screws (n × 3, p × 2, s × 2), and detach the IG Meter Ass’y.
(2) Unsolder the part (α), and detach the PZ Motor and AF Motor.
<Note on Reassembling>
(1) Run the flexible cable through the groove of part A.

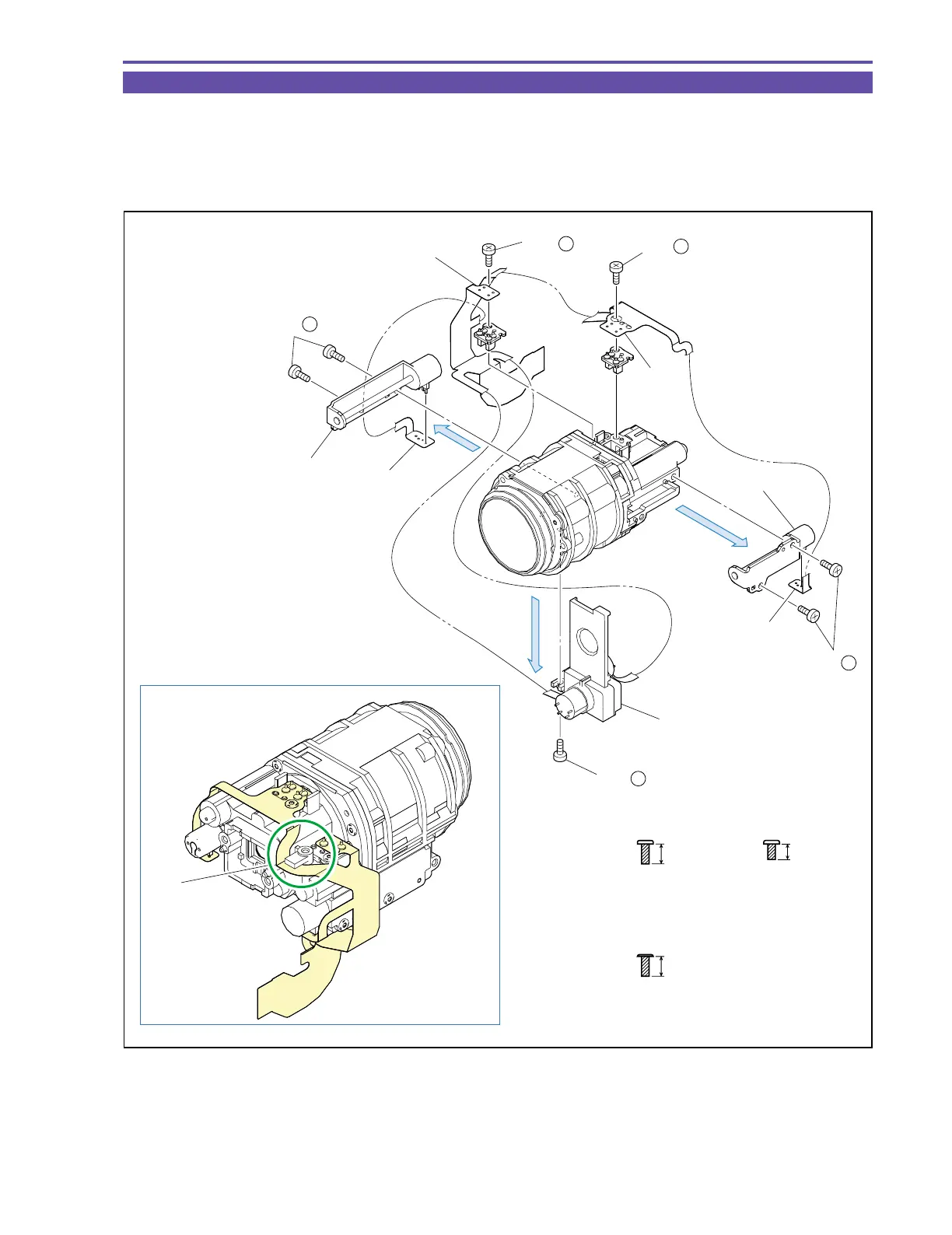

Fig. 44
Metal
M1.7
(self tap)
4.5mm
n
Metal
M1.7
(self tap)
4.5mm
s
3.5mm
Metal
M1.7
(self tap)
p
Note on Reassembling (1)
(2) - α
(2) - α
(2) - α
(2) - α
(1)
(2)
(2)
PZ Motor
IG Meter Ass'y
AF Motor
A
(1) - s
(1) - n
(1) - p
(1) - p
(1) - n
