MVX250i E, MVX200i E, MVX200 E
SERVICE HINTS
2

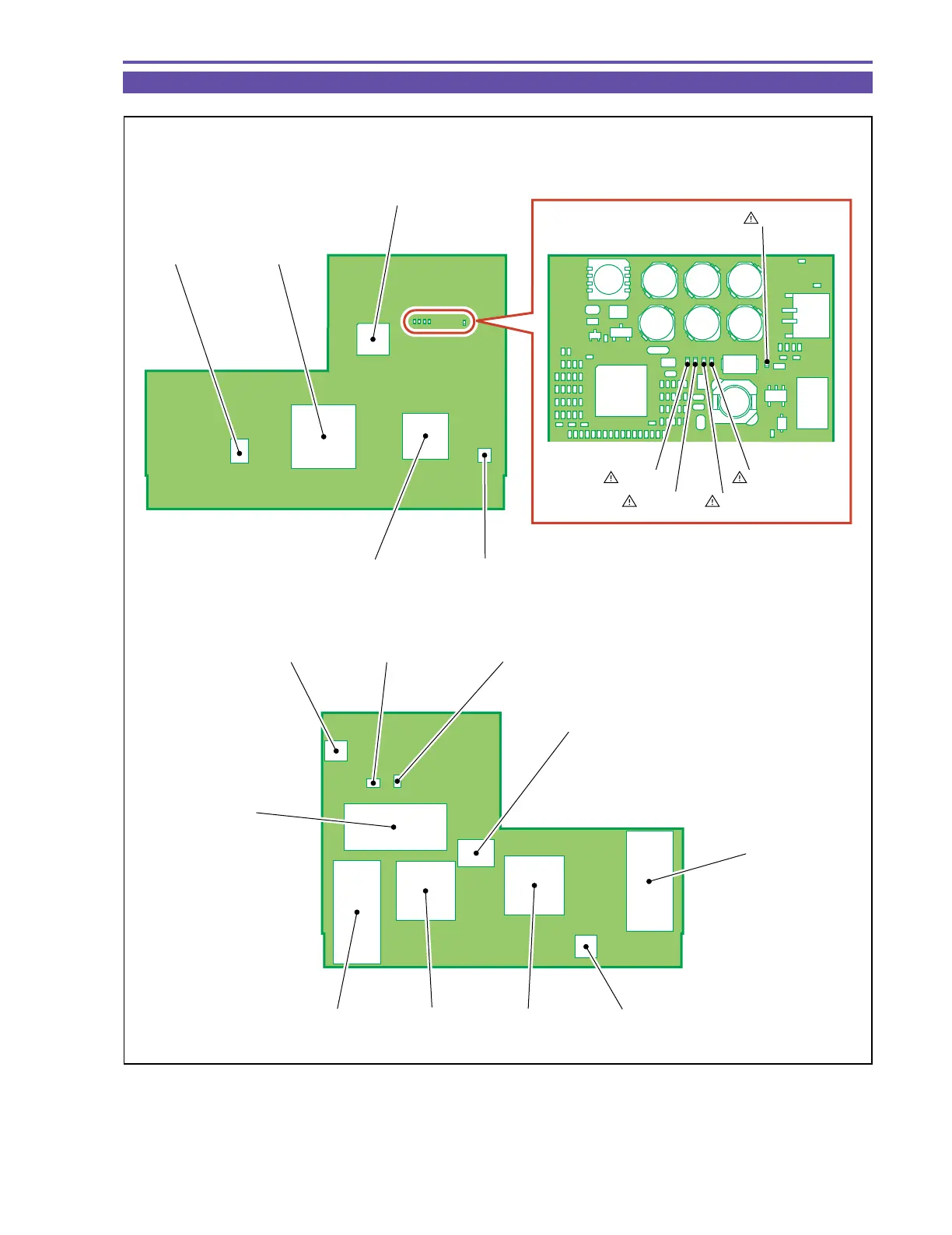

1-2 Location of Main Elements
Fig. 2
IC2302
SDRAM
IC1102
SDRAM
IC1103
DIGIC DV
IC2301
VIC4
IC2000
VRP2
MAIN P.C.B.
FU1810
FU3202
FU3201
FU3205
FU3203
IC3201
DC/DC CONVERTER CONTROL
IC100
MODE MI-COM
IC102
BACKUP
IC300
OPE AMP
IC301
MOTOR DRIVE
IC1810
CHARGE IC
IC1811
OPE AMP
IC3203
4.7V REGULATOR
IC2300
FLASH
IC1101
SDRAM
