MVX250i E, MVX200i E, MVX200 E
SERVICE MODE · ADJUSTMENT
18

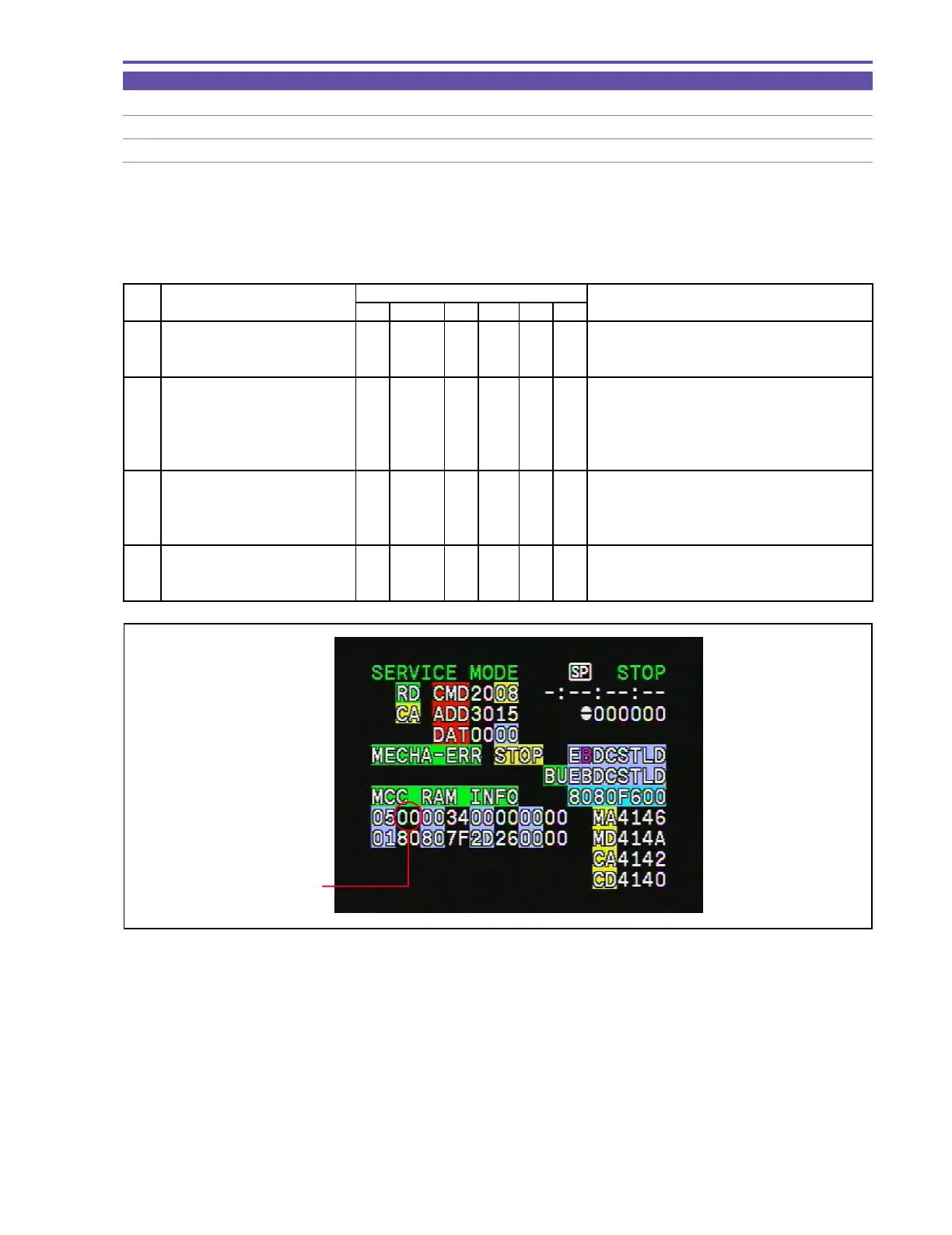

5-2-1 CZ Automatic Adjustment
CHART CZ adjustment chart
SPEC. At STEP 3, DT : AA should be attained. Execution of STEP 4.
Procedure)
(1) In the telephoto-end setting, bring the center of chart image to the center of monitor TV.
(2) Referring to the table shown below, carry out CZ automatic adjustment in the service mode.
(3) Perform the cam correction.
Fig. 16
ST2
STEP PROCEDURE Microcomputer operation
CZ CS Function MD ADDR DT ST 2
1 1) Make the setting shown at right. 2 08 ST 3100 00
2) Perform storing.
↑↑
RD
↑↑
Move to adjustment mode.
(press the PAUSE button.)
22) Perform storing. 2 08ST3100--
(press the PAUSE button.)
㸡 㸡 㸡㸡㸡
Automatic adjustment is started. Then, it is
completed in 30 seconds approximately. If any NG
condition is encountered in automatic adjustment,
check the parts inside the lens section.
3 Judgment on result of adjustment 2 08 RD 3100 AA Adjustment is completed (result is OK).
Perform the cam correction.
㸡㸡
RD
㸡
FF Adjustment is completed (result is NG).
T ake the procedure again from t he beginning.
4 1) Make the setting shown at right. 0 08 ST 0081 -- Preparation for flash memory updating.
2) Perform storing.
↑↑
RD
↑↑
Execution of flash memory updating.
(press the PAUSE button.)
