Canon MVX200 E - Power Fuses

MVX250i E, MVX200i E, MVX200 E
TECHNICAL DESCRIPTION
5
2-2 Power Fuses
The power supply from the battery DC JACK is supplied to five fuses on the MAIN P.C.B., through which the following five power
voltage are delivered.
(1) CCD, 1.4V, 2.7V, 3V, DC/DC UNREG : FU3201
• CCD drive power source (-7V, +15V)
• 1.4V power source (MACS1.4V, DVDD1.4V, AVDD1.4V)
• 2.7V power source (M SDRAM2.7V, AA2.7V, SDRAM2.7V, AVDD2.7V, LCD2.7V, DIF2.7V)
• 3V power source (DVDD3V, CAM3V, HA3V)
• DC/DC CONVERTER power source
(2) LCD, 4.7V, 5V, VCR UNREG : FU3202
• LCD drive power source (8.5V)
• 4.7V power source (AA4.7V, HA4.7V)
• 5V power source (P5V, LCD5V)
• VCR UNREG
(3) MECHA UNREG : FU3203
• DRUM /CAPSTAN
(4) SHOE UNREG : FU3205
• Advanced Accessory shoe power source
(5) CHARGE UNREG : FU1810
• Charge circuit power source

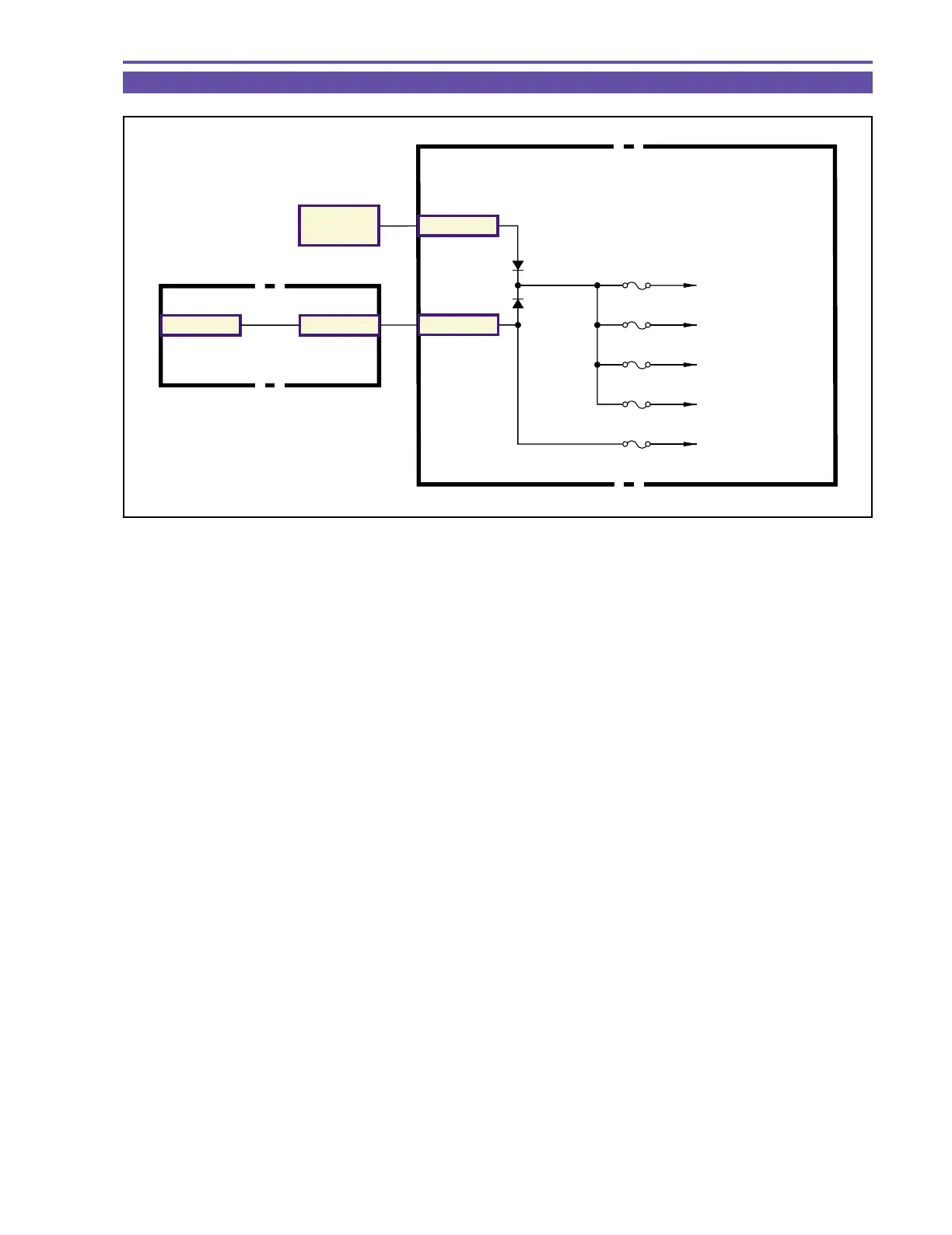

Fig. 2
BATT. +
BATT.
TERNINAL
DC JACK DC +
DC +
MAIN P.C.B.
JACK1 P.C.B.
FU3201
LCD, 4.7V, 5V,
VTR UNREG
CCD, 1.4V, 2.7V, 3V,
DC/DC CONVERTOR
FU3203
FU3205
MECHA UNREG
FU1810
CHARGE UNREG
SHDE UNREG
FU3202
CN3201
CN3202
CN3211
