Canon MVX200 E - Separation of R-LCD Unit

MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
6
1-4 Separation of R-LCD Unit

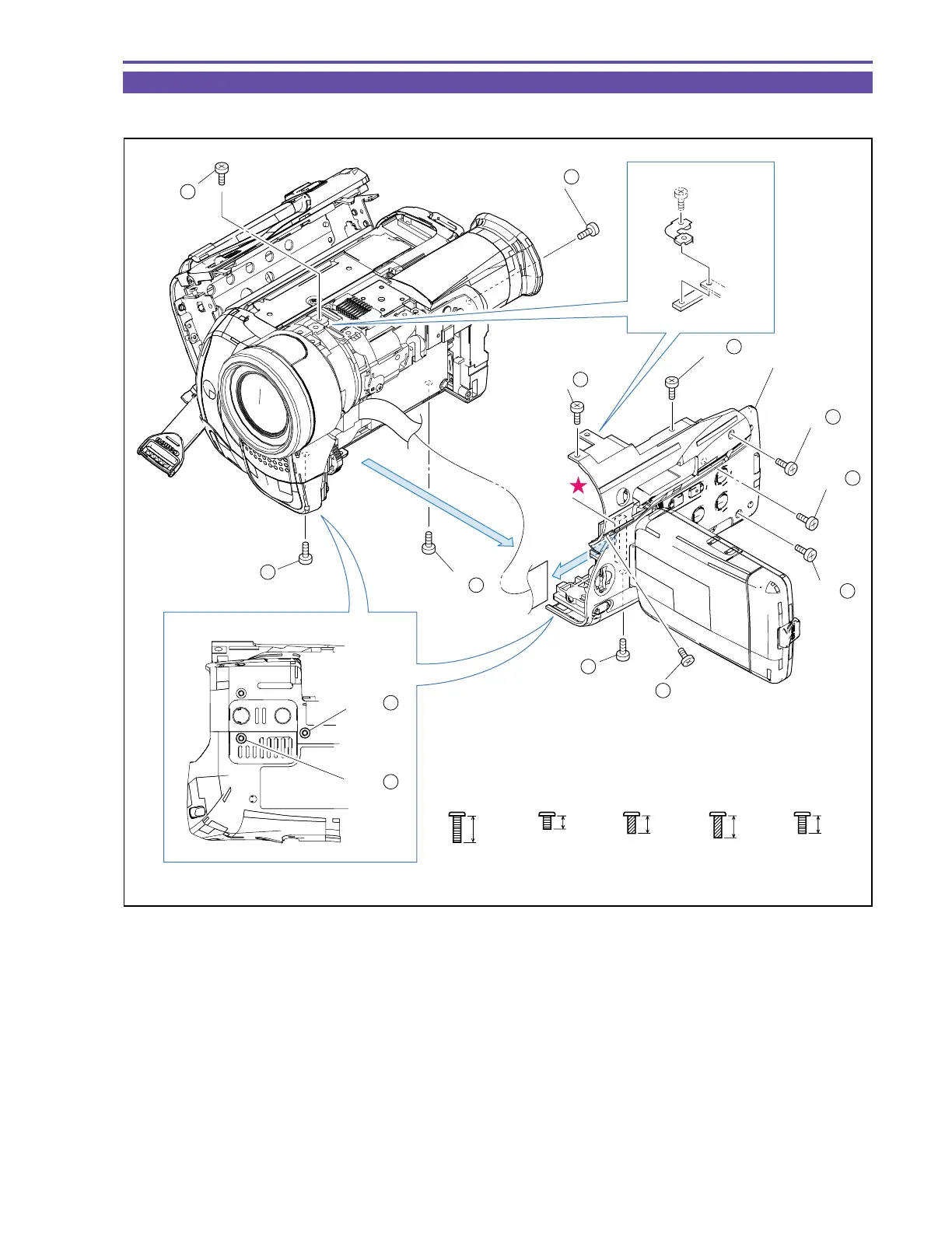

(1) Remove eleven screws (c × 1, d × 5, e × 2, f × 2, g × 1), disconnect the CN101, and detach the R-LCD Unit.
Fig. 3
3mm
Metal
M1.7
gefd
4mm
Metal
M1.7
(self tap)
5mm
Metal
M1.7
(self tap)
4mm
Metal
M1.7
6mm
Metal
M1.7
c
R-LCD Unit
(1) - c
CN101
(1)
(1)
(1) - e
(1) - d
(1) - d
(1) - d
(1) - d
(1) - d
(1) - e
(1) - f
(1) - f
(1) - f
(1) - f
(1) - g
