Canon MVX200 E - Disassembly of Rear Cover Unit - 1

MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
38
1-28 Disassembly of Rear Cover Unit - 1
(1) Remove two screws (n × 1, p × 1), and detach the Grip Belt Plate, the Shaft, and the Grip Belt.
(2) Remove three screws (e × 3), and detach the Battery Terminal Ass’y.
<Note on Reassembling>
(1) Attach the Battery Terminal Ass’y as illustrated below.

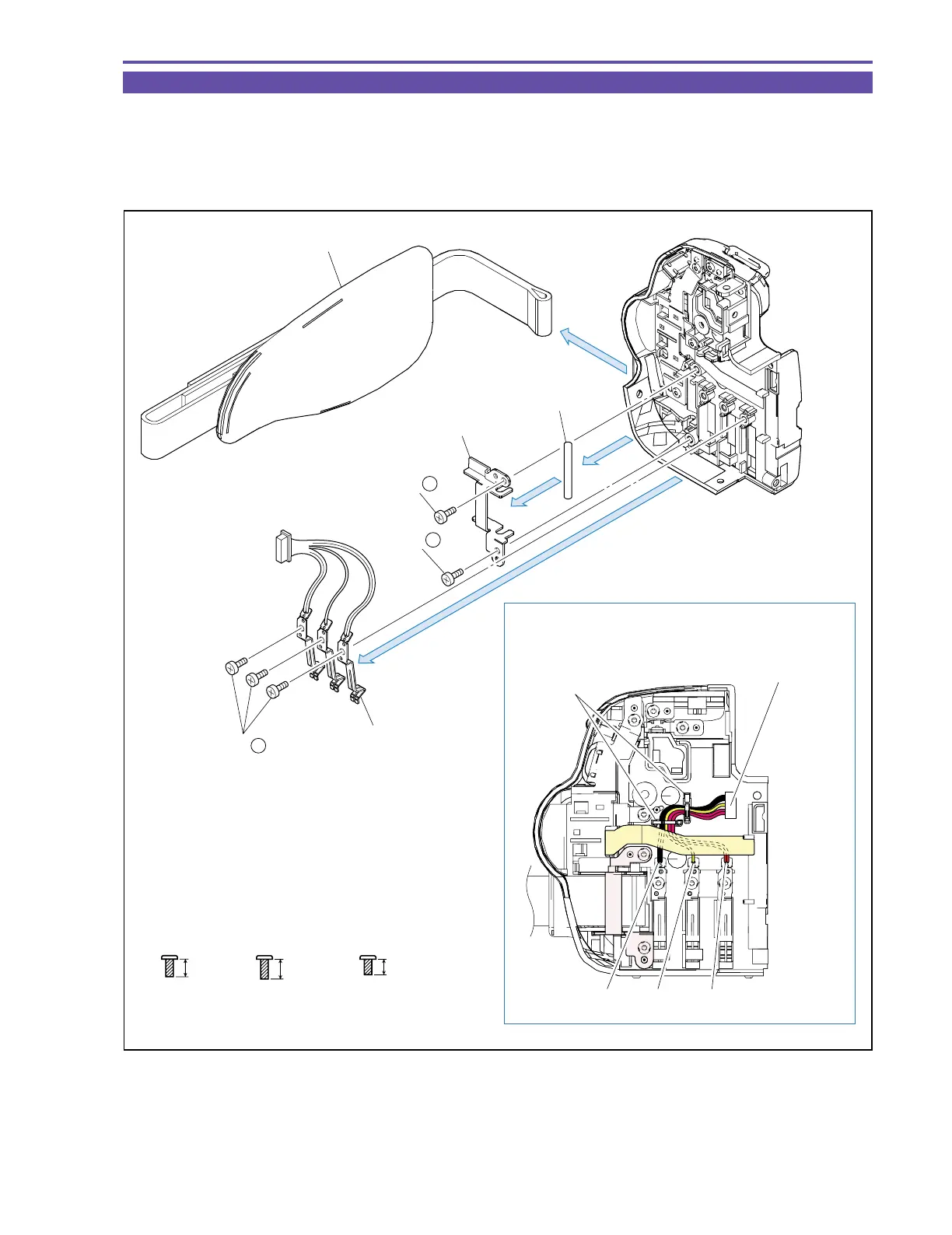

Fig. 35
Metal
M1.7
(self tap)
4.5mm
en
4mm
Metal
M1.7
(self tap)
3.5mm
Metal
M1.7
(self tap)
p
Note on Reassembling (1)
Grip Belt
Grip Belt Plate
Battery Terminal Ass'y
Battery Terminal Ass'y
Shaft
(1)
(1)
(1)
(2)
Run the cable
through two hooks.
Black Yellow Red
(2) - e
(1) - n
(1) - p
