3-2-2 Progress of Charging
The IC1810 starts a trickle charge under control of the MODE MI-COM (IC100). The trickle charge continues until the battery voltage
reaches 6.5V. At the point in time when 6.5V is reached, the IC1810 starts a 0.66A quick charge. Then, the charge current decreases
gradually with the progress of charging (because of an increase in impedance of the battery). When the charge current becomes 80 mA
or less, the end-of-charging indication is provided. Thereafter, supplementary charging is performed for 24 minutes at maximum until
the charge current becomes 40 mA or less.

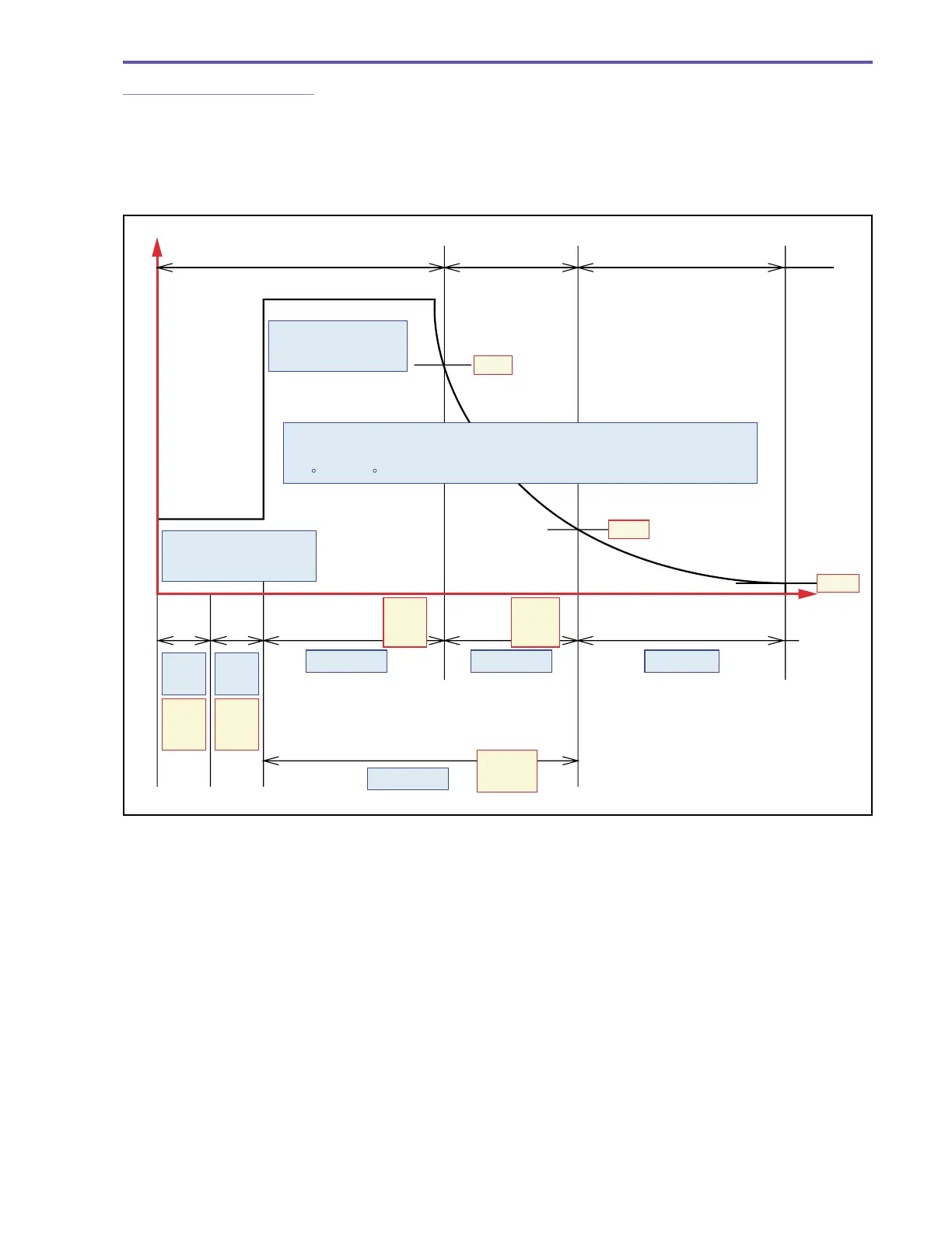

Fig. 5
When the battery voltage
reaches 5.2 V, the trickle
timer (2) is started.
0.56A
80mA
40mA
135min.
max
5min.
max
24min.max204min.max144min.max
330min.max
Charging current
LED flashes once LED flashes twice LED lights up steadily
Quick charge 0.66A
When battery voltage
reaches 6.5V, quick
charge starts.
Trickle
100mA
An error is indicated if the battery voltage becomes 5.7V or lower during quick
charging or constant-voltage charging.
An error is indicated if the battery temperature is not within the range of
−10 C to 52.5 C.
Quick charge timer
2-flash
timer
Supplementary charge timer
Elapsed
time
Timeout
error
Full charge
indication
at timeout
Full charge
indication
at timeout
Total timer
Trickle1
timer
Trickle2
timer
Timeout
error
Timeout
error
