Canon MVX200 E - Setting B

MVX250i E, MVX200i E, MVX200 E
SERVICE MODE · ADJUSTMENT
4
2-3 Setting B
(1) Remove the FRONT COVER, REAR COVER, LEFT COVER UNIT, RIGHT COVER UNIT referring to “Disassembling”.
Note 1 : Referring to Fig.5, connect the required cables.
Note 2 : Observe the signal in the same manner as that for setting A.
Note 3 : For ejection, use the switch concerned on the P.C.B. For mode transition, use the wireless remote controller.

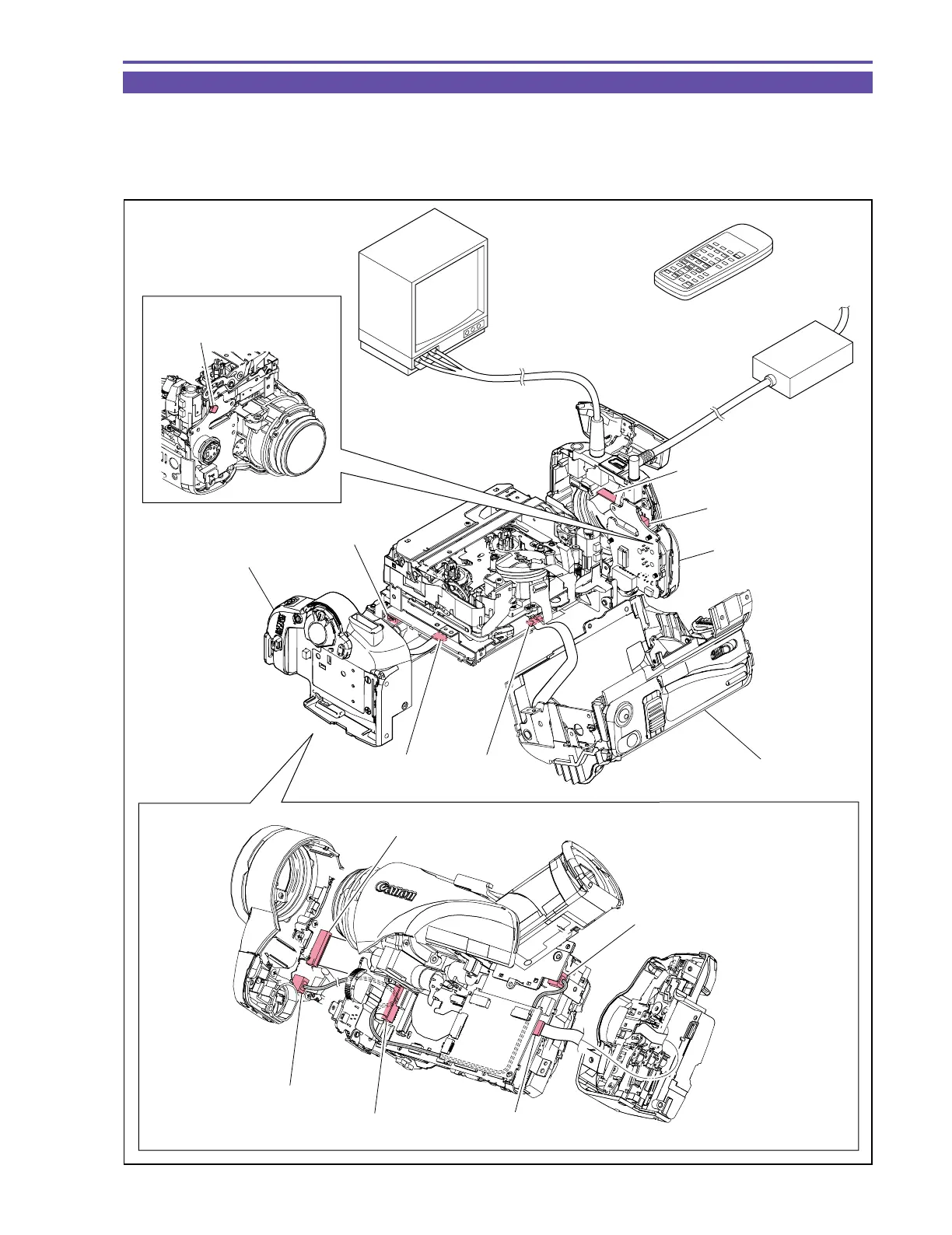

Fig. 6
MONITOR TV
WIRELESS CONTROLLER
CA-570
LEFT COVER UNIT
FRONT COVER UNIT
FRONT COVER
UNIT
REAR COVER UNIT
REAR COVER UNIT
MAIN P.C.B.
CN100
MAIN P.C.B.
CN101
JACK1 P.C.B.
CN51
JACK1 P.C.B.
CN3211
JACK1 P.C.B.
CN51
MAIN P.C.B.
CN2101
JACK1 P.C.B.
CN3211
MAIN P.C.B.
CN3201
MAIN P.C.B.
CN3201
MAIN P.C.B.
CN101
JACK2 P.C.B.
EJECT SWITCH
