MVX250i E, MVX200i E, MVX200 E
SERVICE MODE · ADJUSTMENT
29
5-6-5 Black Limiter Level Adjustment
MODE Card playback of monochrome master (still picture)
M. EQ. Oscilloscope
TP/TRIG. Extension connector - pin 23 (EVF G) / VIDEO OUT
SPEC. 4.45 ± 0.05 [V]
Procedure)
(1) According to the table shown below, carry out adjustment in
the card playback mode of the monochrome master.

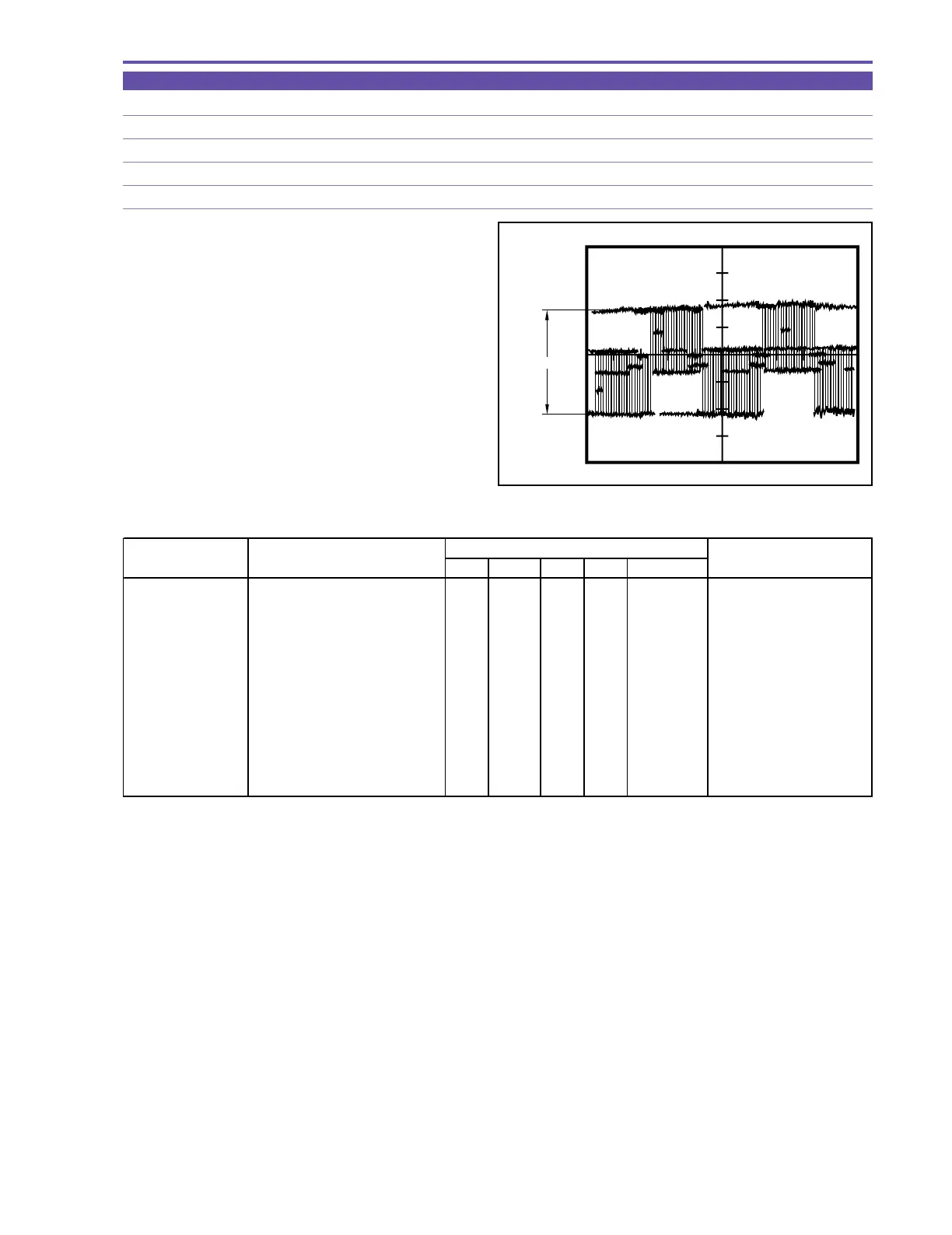

Fig. 21
4.45V ± 0.05V
CS Function MD ADDR DT
Black Limiter Level 1) Make the setting shown at right. 4 11 RD 0006 Original value Record the original value.
Adjustment 1) Make the setting shown at right. 4 11 ST 0006 00 Setting of 00
2) Perform storing.
↑↑
RD
↑↑
(press the PAUSE button.)
3) Make the setting shown at right. 4 11 ST 0009 "ADJ" Start of setting
4) Perform storing.
↑↑
RD
↑
ADJ Completion of setting
(press the PAUSE button.)
5) Make the setting shown at right. 4 11 ST 0006 Original value Reset to the recorded
original value.
6) Perform storing.
↑↑
RD
↑↑
(press the PAUSE button.)
STEP PROCEDURE
MONITOR
Microcomputer operation
