Canon MVX200 E - Disassembly of CVF Unit - 3

MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
43

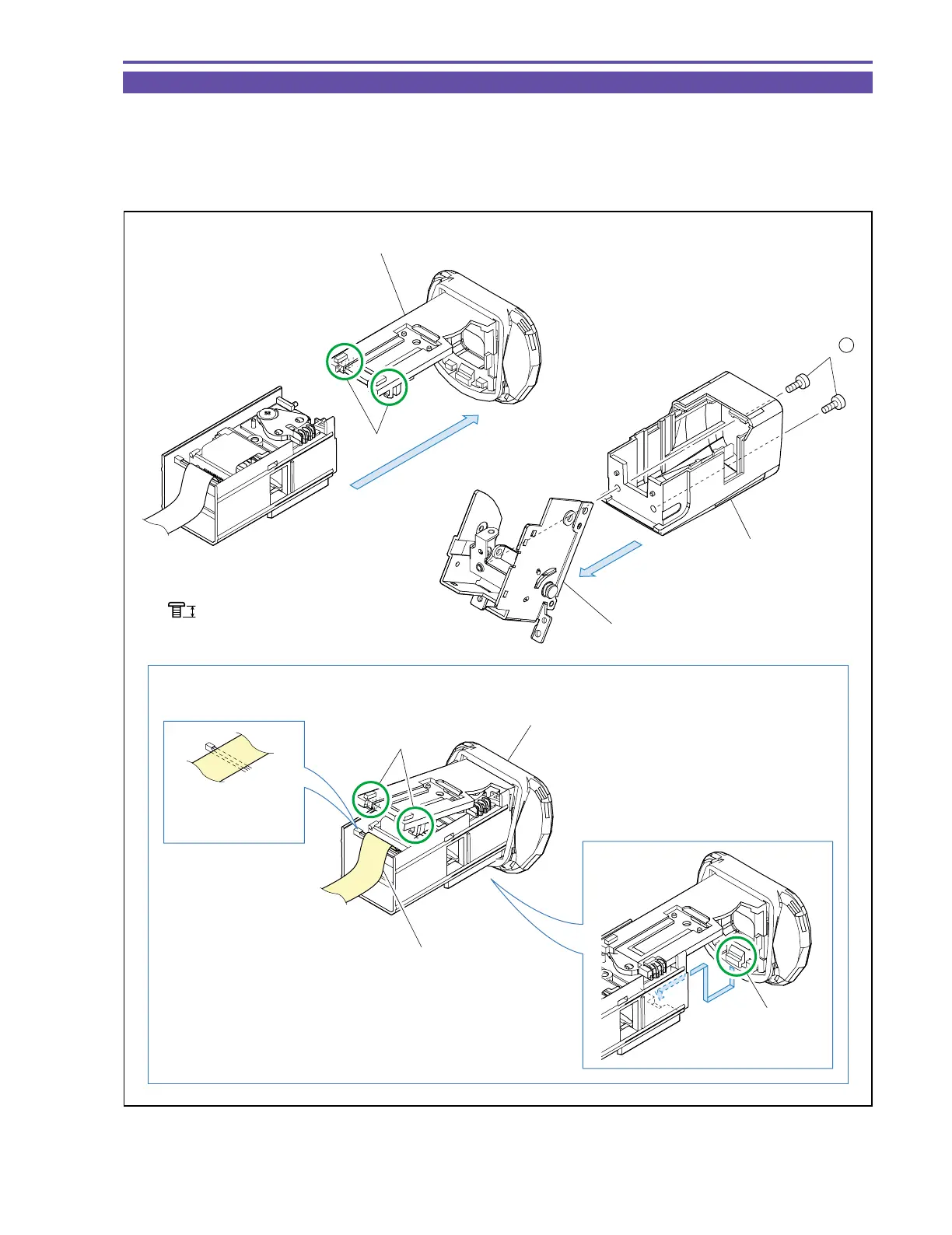

1-32 Disassembly of CVF Unit - 3
(1) Disengage two claws A, and detach the CVF Inner Bottom Cover Ass’y.
(2) Remove two screws (k × 2), and detach the CVF Hinge Unit.
<Notes on Reassembling>
(1) Attach the CVF Inner Bottom Cover Ass’y as illustrated below.
Fig. 40
k
2.5mm
Metal
M1.7
Note on Reassembling (1)
First engage the Eye Piece side (claw B)
and engage the claw A.
Claw A
Claw A
(2)
CVF Top Cover
CVF Hinge Unit
Running CVF FPC
between the ribs.
Claw B
Eye Piece
CVF FPC
(2) - k
(1)
CVF Inner Bottom Cover Ass'y
