Canon MVX200 E - Contrast Adjustment

MVX250i E, MVX200i E, MVX200 E
SERVICE MODE · ADJUSTMENT
27
5-6-3 Contrast Adjustment
MODE Card playback of monochrome master (still picture)
M. EQ. Oscilloscope
TP/TRIG. Extension connector - pin 23 (G), pin 21 (R), pin 24 (B), / VIDEO OUT
SPEC. 2.20 ± 0.05 [V]
Procedure)
(1) According to the table shown below, carry out adjustment in
the card playback mode of the monochrome master.
CS Function MD ADDR DT
Contrast Adjustment (G) 1) Make the setting shown at right . 4 11 ST 0003
"ADJ"
Start of setting
2) Perform storing.
↑↑
RD
↑
ADJ Completion of setting
(press the PAUSE button.)
Contrast Adjustment (R) 1) Make the setting shown at right . 4 11 ST 0004
"ADJ"
Start of setting
2) Perform storing.
↑↑
RD
↑
ADJ Completion of setting
(press the PAUSE button.)
Contrast Adjustment (B) 1) Make the setting shown at right . 4 11 ST 0005
"ADJ"
Start of setting
2) Perform storing.
↑↑
RD
↑
ADJ Completion of setting
(press the PAUSE button.)
STEP PROCEDURE
MONITOR
Microcomputer operation

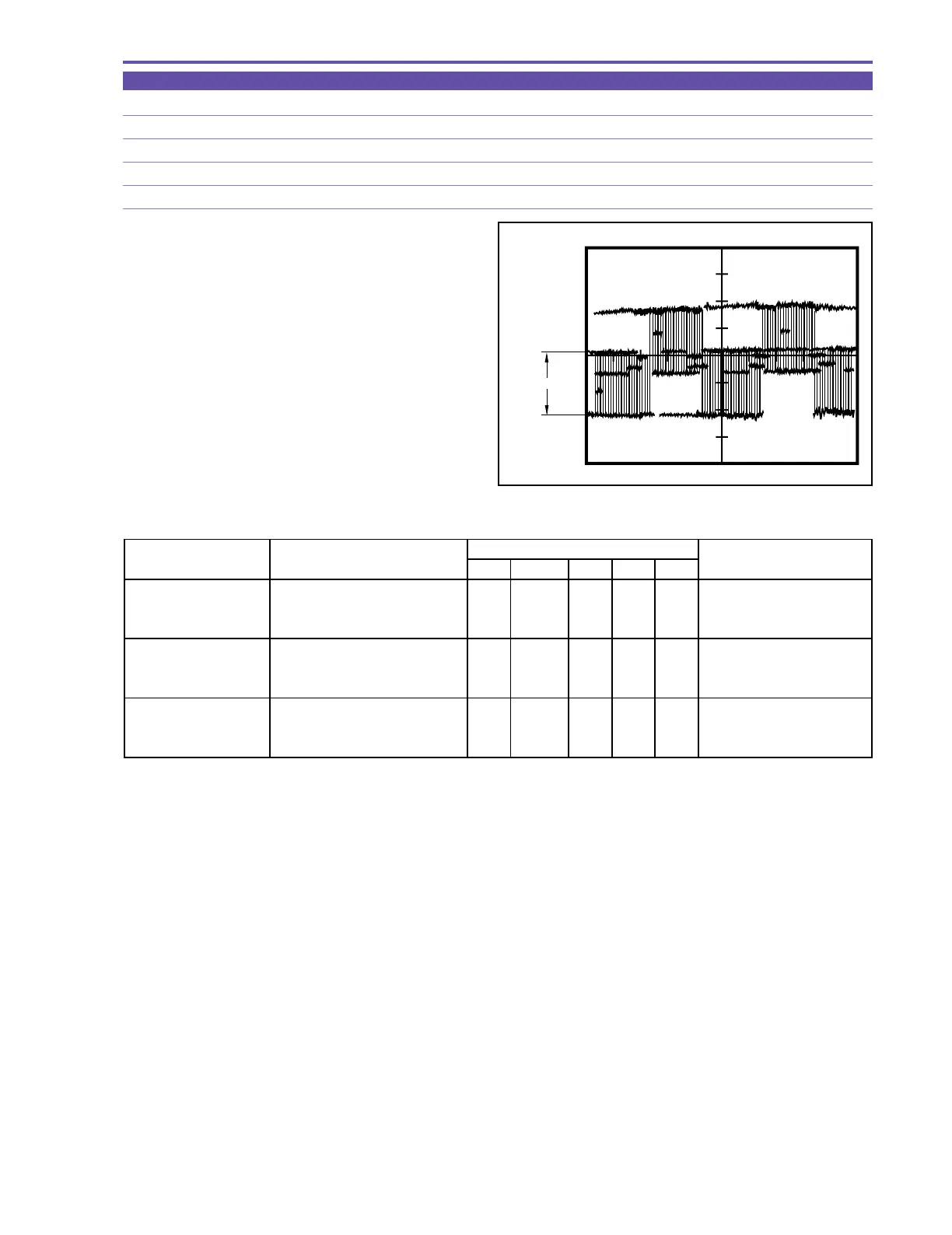

Fig. 19
2.20V ± 0.05V
