Canon MVX200 E - Separation of Recorder Holder

MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
18
1-14 Separation of Recorder Holder
(1) Remove three screws (m × 3), and detach the Spring, Recorder Holder, and Insulation Rubber.
<Instruction for Supply>
Entire surface of Insulation Rubber : Hanal KS-39M (DY9-3053-000)

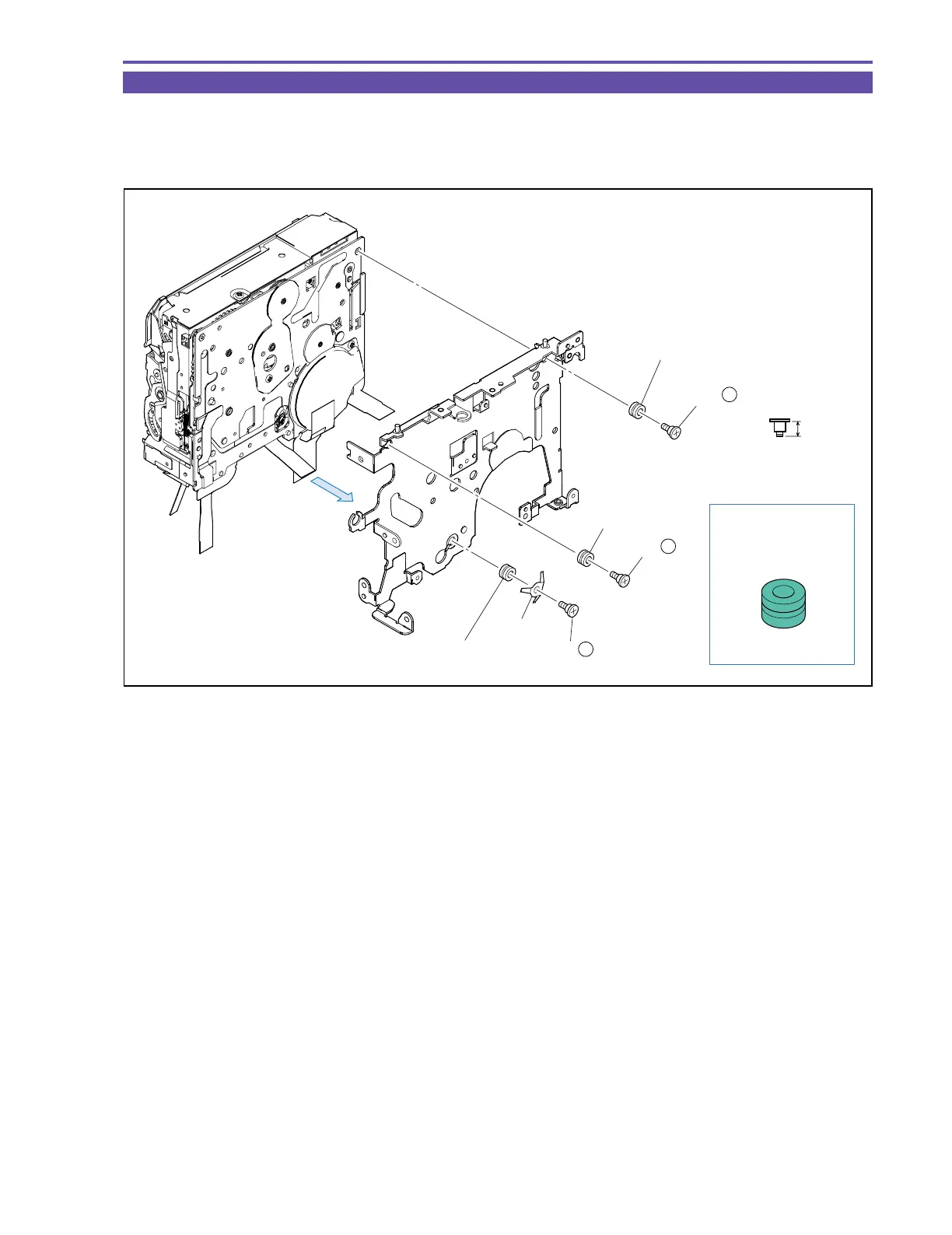

Fig. 15
3.4mm
Metal
M1.4
Steped Screw
m
Instruction for Supply
Hanal KS-39M
Insulation Rubber
DMC III
(1)
Recorder Holder
Insulation Rubber
Insulation Rubber
Insulation Rubber
Spring
(1) - m
(1) - m
(1) - m
