Canon MVX200 E - Disassembly of CVF Unit - 4

MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
44
1-33 Disassembly of CVF Unit - 4
(1) Disengage two claws A, and detach the CAV-CVF FPC, the CVF Mask, and the other parts between them.
(2) Disengage two claws B, and detach the CVF Reflector from the CVF P.C.B.
(3) Disconnect the CN4101 and CN4102, and detach the CAV-CVF FPC and the CVF Ass’y.
<Note on Reassembling>
(1) When mounting the CVF Reflector, push the CVF Mask, CVF Ass’y, Cushion and Diffuser lightly in the arrow direction.
(2) Insert the CVF Ass’y flexible cable under the rib of the CVF Inner Cover as illustrated below.

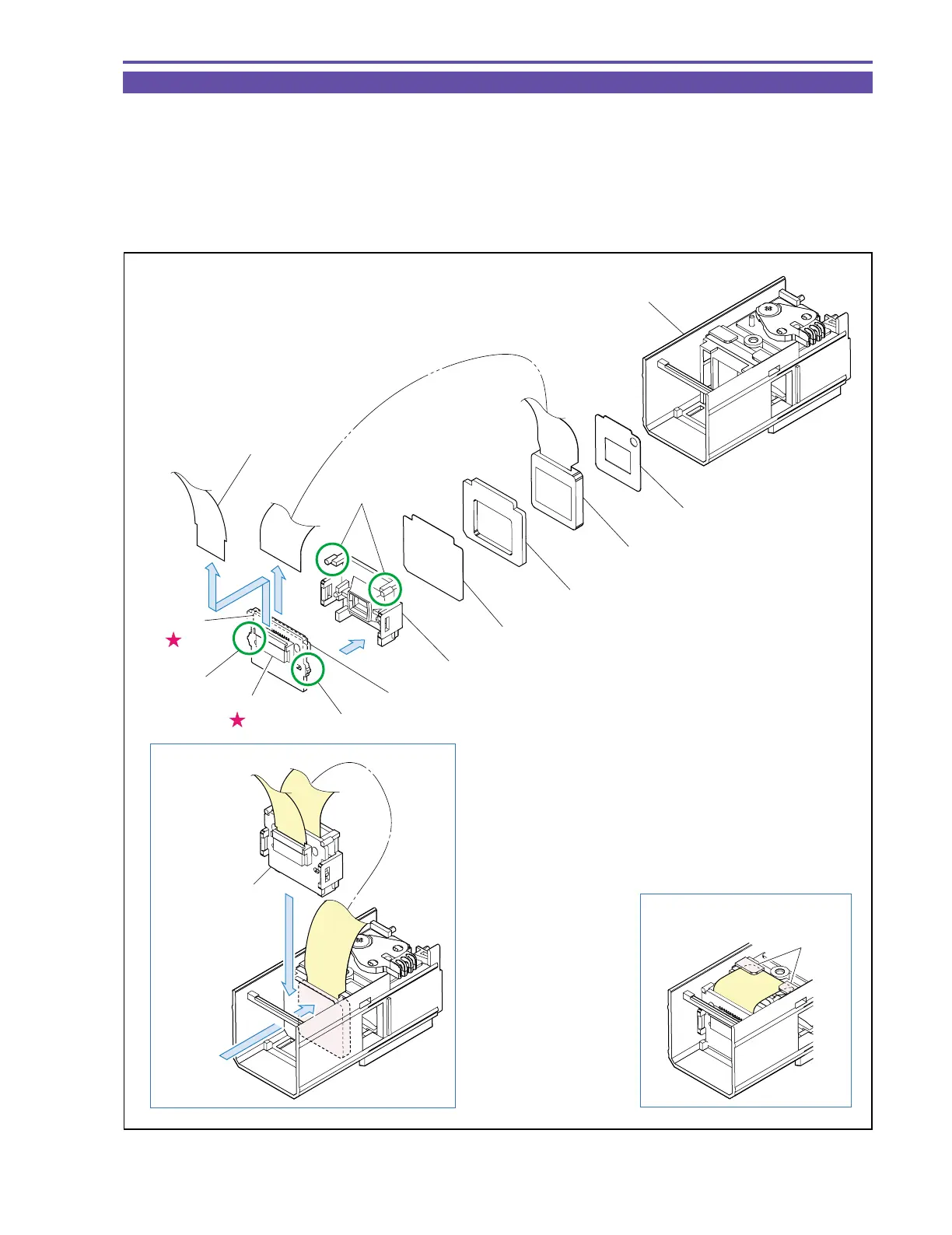

Fig. 41
Note on Reassembling (1)
Note on Reassembling (2)
Claw B
Claw B
Claws A
(3)
(3)
CN4102
CN4101
CAV-CVF FPC
CVF Inner Cover
CVF Mask
CVF Ass'y
Cushion
Diffuser
CVF Reflector
CVF P.C.B.
CVF Reflector Part
Push in
Ribs
(2)
