MVX250i E, MVX200i E, MVX200 E
SERVICE MODE · ADJUSTMENT
28
5-6-4 Brightness Adjustment
MODE Card playback of monochrome master (still picture)
M. EQ. Oscilloscope
TP/TRIG. Extension connector - pin 23 (G), pin 21 (R), pin 24 (B), / VIDEO OUT
SPEC. 2.60 ± 0.05 [V]
Procedure)
(1) According to the table shown below, carry out adjustment in
the card playback mode of the monochrome master.

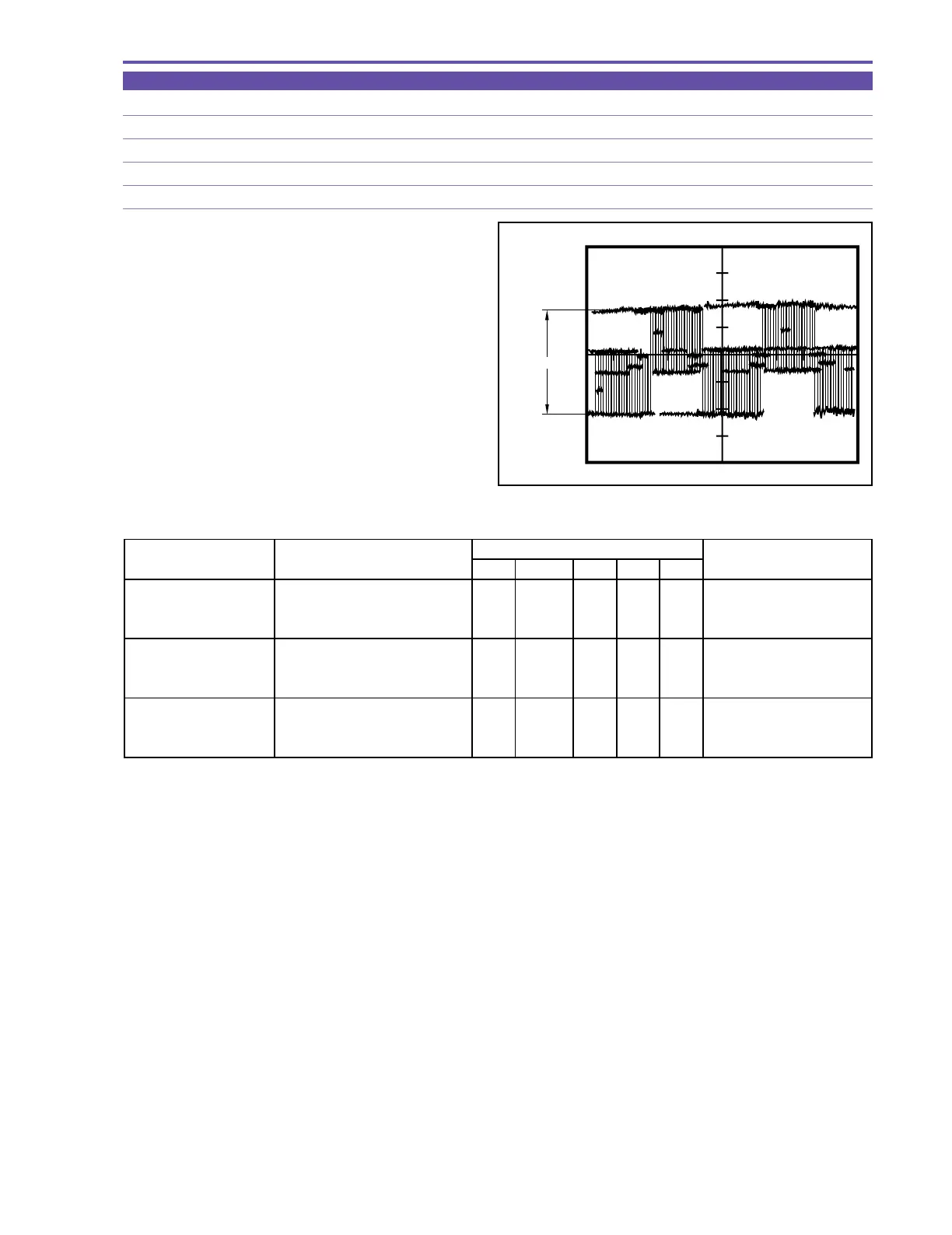

Fig. 20
2.60V ± 0.05V
CS Function MD ADDR DT
Brightness Adjustment (G) 1) Make t he setting shown at right . 4 11 ST 0006
"ADJ"
Start of setting
2) Perform storing.
↑↑
RD
↑
ADJ Completion of setting
(press the PAUSE button.)
Brightness Adjustment (R) 1) Make the setting shown at right. 4 11 ST 0007
"ADJ"
Start of setting
2) Perform storing.
↑↑
RD
↑
ADJ Completion of setting
(press the PAUSE button.)
Brightness Adjustment (B) 1) Make the setting shown at right. 4 11 ST 0008
"ADJ"
Start of setting
2) Perform storing.
↑↑
RD
↑
ADJ Completion of setting
(press the PAUSE button.)
STEP PROCEDURE
MONITOR
Microcomputer operation
