MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
42
<Note on Reassembling>
(1) When attaching the CVF Bottom Cover, push the CAV-CVF FPC inside as illustrated below.
<Instruction for Supply>
CVF Click Plate : Hanal KS-39M (DY9-3053-000)
Rail part of CVF Top Cover, two points : Hanal KS-39M (DY9-3053-000)
Inside-wall rail part of CVF Top Cover, four points : Hanal KS-39M (DY9-3053-000)

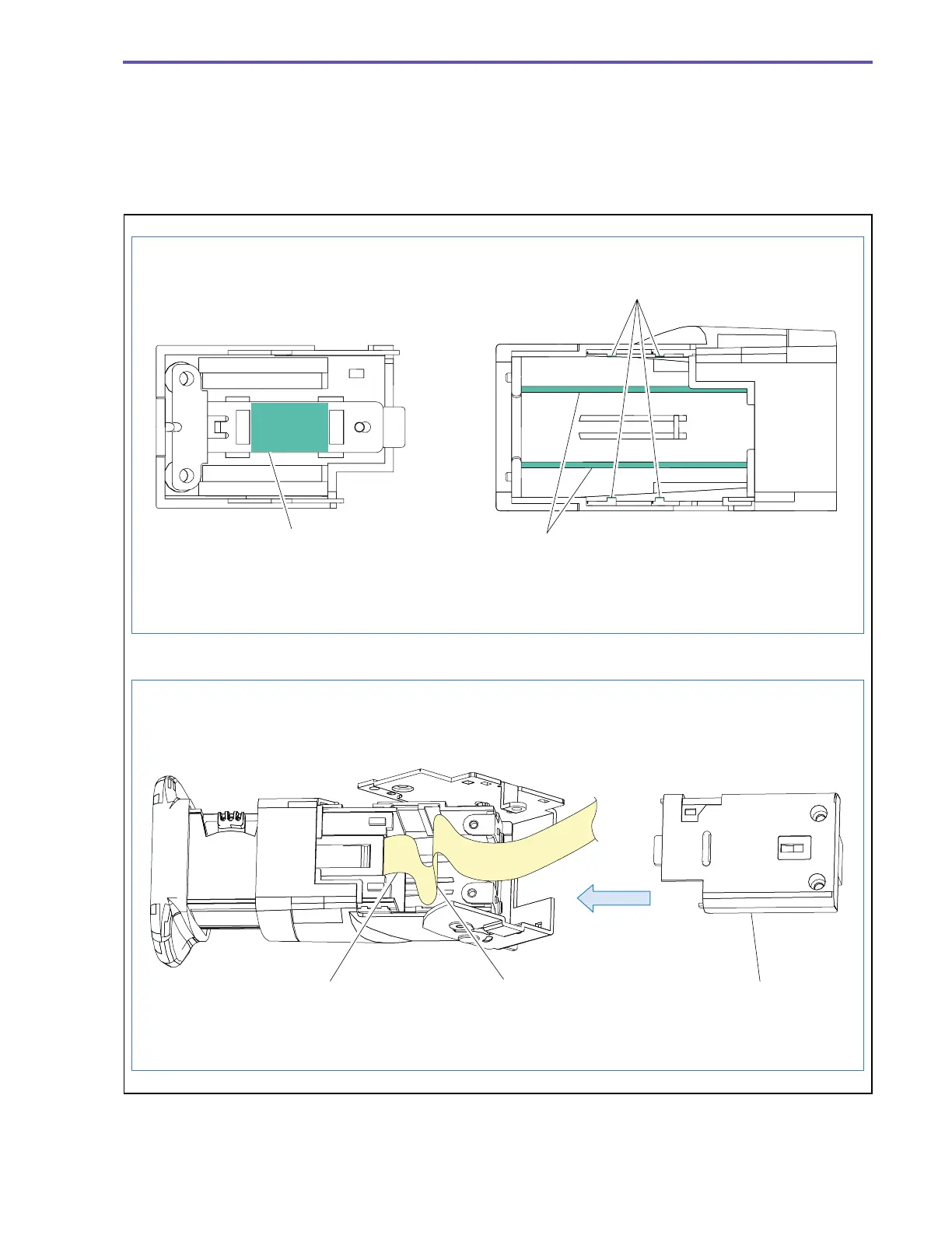

Fig. 39
Note on Reassembling (1)
CAV-CVF FPC
CVF Bottom Cover
Push in
CVF Click Plate
Hanal KS-39M
Instruction for Supply
CVF Top Cover's rail parts
Hanarl KS-39M
CVF Top Cover's inner wall rail parts
Hanarl KS-39M
