MVX250i E, MVX200i E, MVX200 E
SERVICE HINTS
3

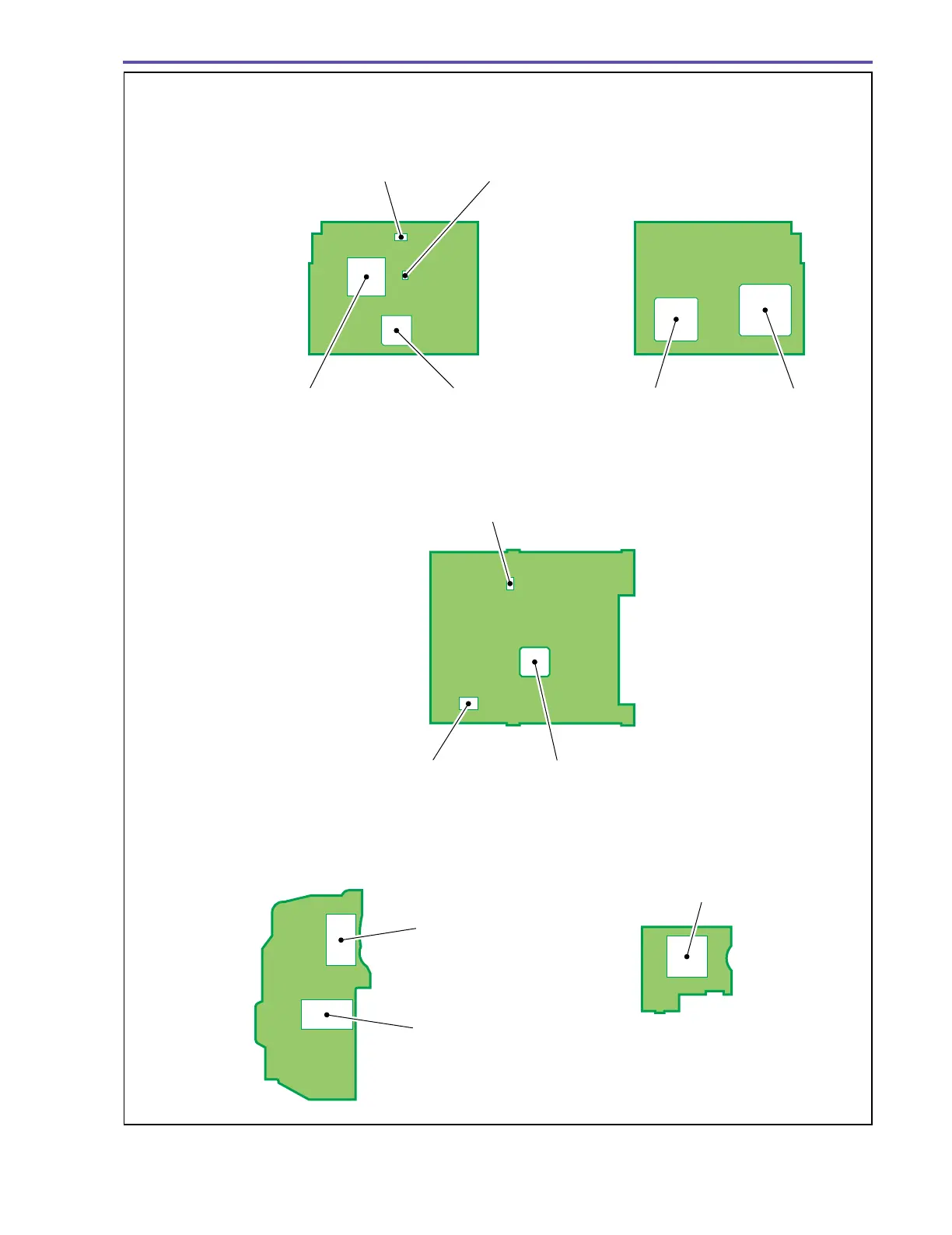

Fig. 3
CAV P.C.B.
LCD P.C.B.
JACK1 P.C.B. CCD P.C.B.
IC1004
2.8V REGULATOR
IC1001
INVERTER
IC1002
TG/CDS/AGC/AD/V-DRIVER
IC801
AUDIO INTERFACE
IC1501
EVF DRIVER
IC1200
LENS DRIVE
IC4201
DC/DC CONVERTER CONTROL
IC901
EEPROM
IC902
LCD DRIVE
IC1602
SENSOR GYRO
IC1601
SENSOR GYRO
IC1070
CCD
