MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
11
<Note on Reassembling>

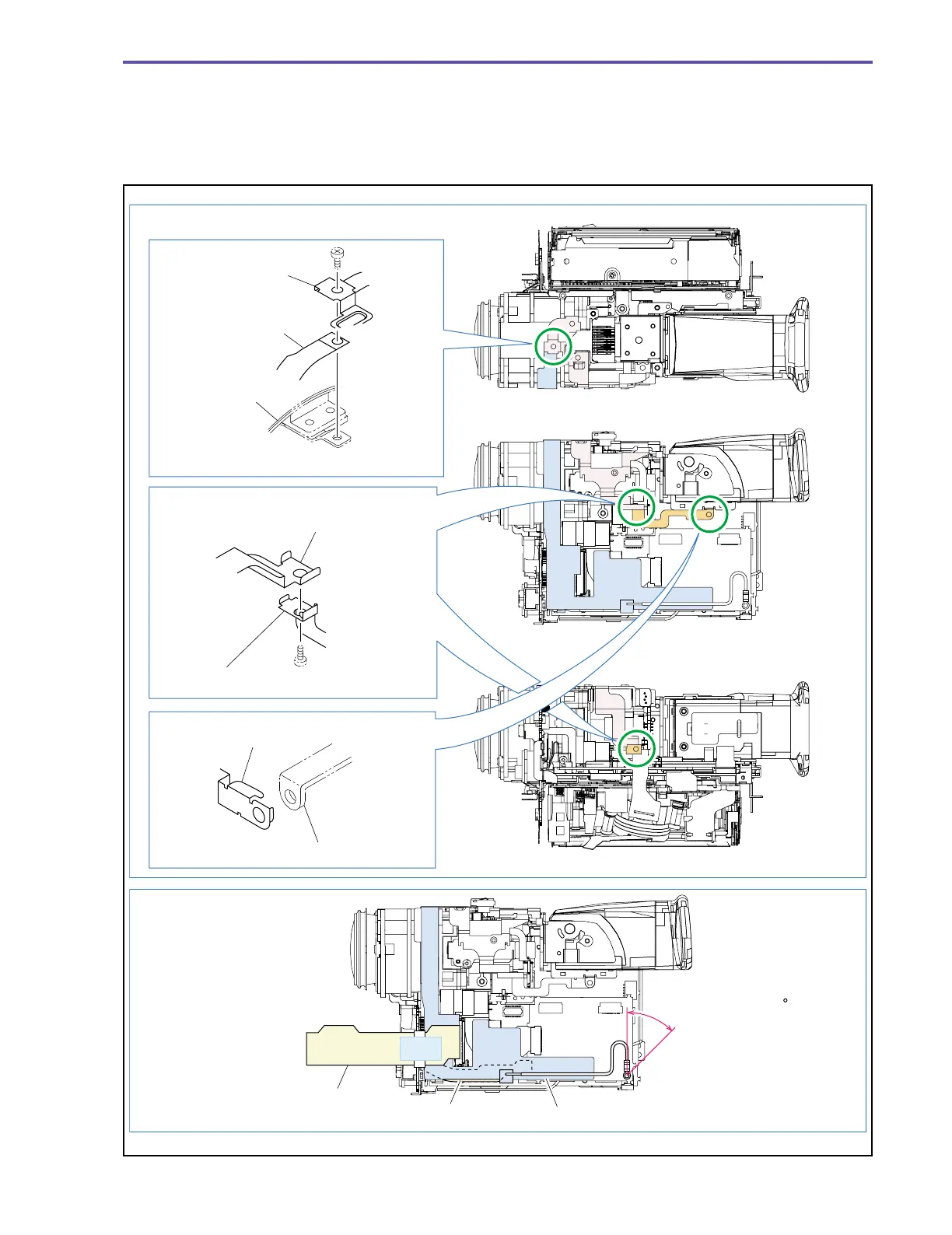

(1) Reassemble the Lens Shield, Lens Shield B, and FPC Shield Unit as illustrated below.
(Refer to 1-6 : Separation of Front Cover Unit.)
(2) Attach the FPC Shield above the CAV-JACK1 FPC (8 pins) to provide a distance as large as possible. With the MAIN-KEY FPC
folded, it shall not come into direct contact with the CAV-JACK1 FPC.
Fig. 8
Note on Reassembling (1)
Note on Reassembling (2)
Front Cover
Lug terminal mounting
angle : Within 45.0
A Part of Lens Shield
Refer to 1-6:Separation of Front Cover Unit.
C Part of FPC Shield
B Part of Lens Shield
D Part of Lens Shield B
F Part of CVF Unit
E Part of Lens Shield B
MAIN-KEY FPC
CAV-JACK1 FPC
FPC Sheld Unit
