MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
25
<Note on Reassembling>
(1) When attaching the SPEAKER FPC, engage the dowels F and G of the Cassette Cover and secure the SPEAKER FPC with Double
Sided Tape.
(2) When attaching the Cassette Cover, connect the Zoom Photo Key Ass’y flexible cable to the connector. Then, engage the claws C
and D and the dowels E and F while taking care not to dislocate the Speaker.
(3) When attaching the Zoom Photo Key Ass’y, mount the Open Knob and then engage the claws A (two points) and the dowels B (two
points) in that order.
<Instruction for Supply>
Open Knob : EM-30L (DY9-3031-000)
Note on Reassembling (1),(2)
Note on Reassembling (3)
Instruction for Supply
Cassette Cover
Dowel E Dowel G Dowel F
Claw C Claw D
SPEAKER FPC
Speaker
Double Sided Tape
Zoom Photo Key Ass'y
Dowel B
Open Knob
EM-30L
Claw A
Open Knob Lower Part
Connector

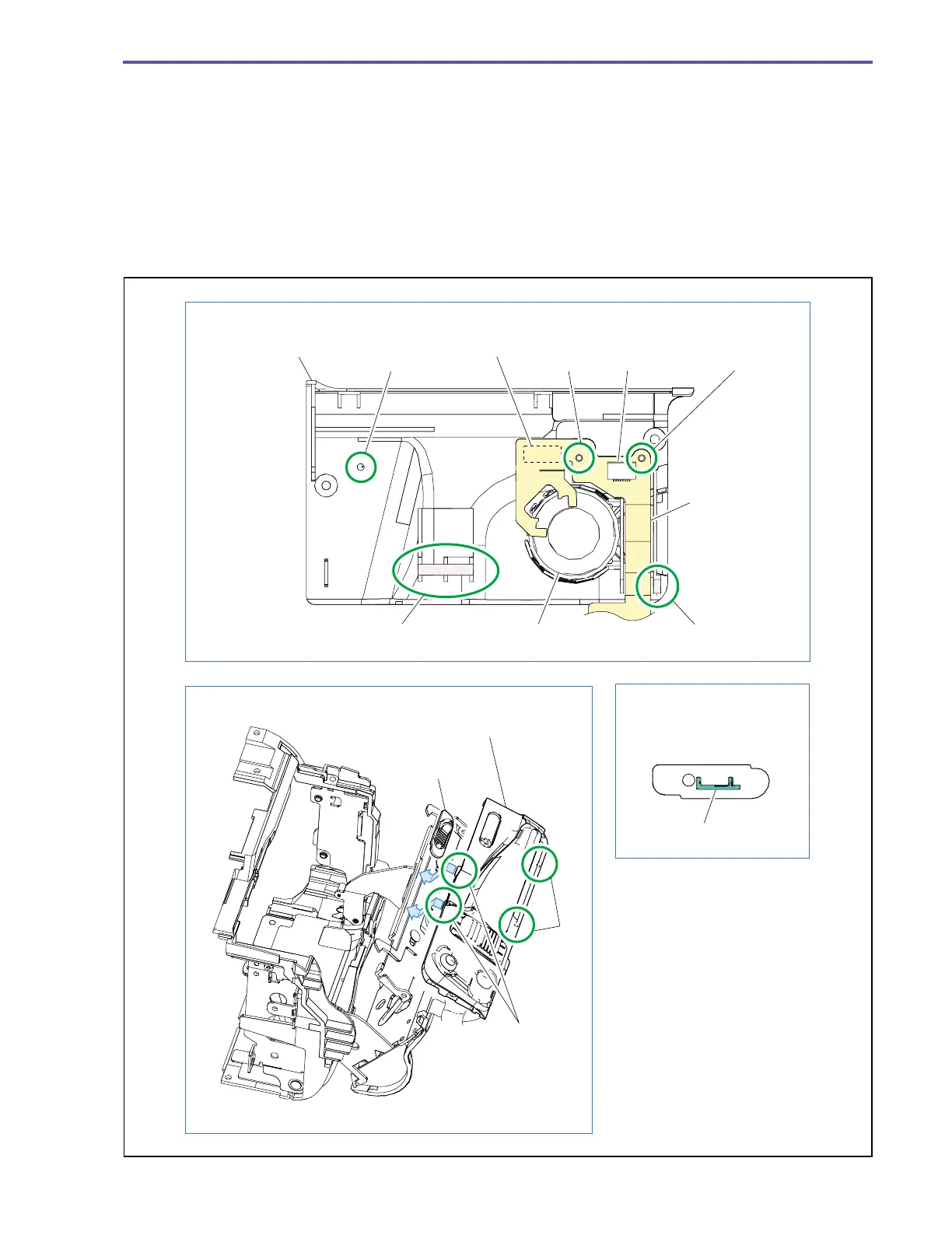

Fig. 22
To Next Page
