RFP: FibeAir 2000 Considerations Chapter 10
FA4800 User Manual Release 1.9.40 10-10

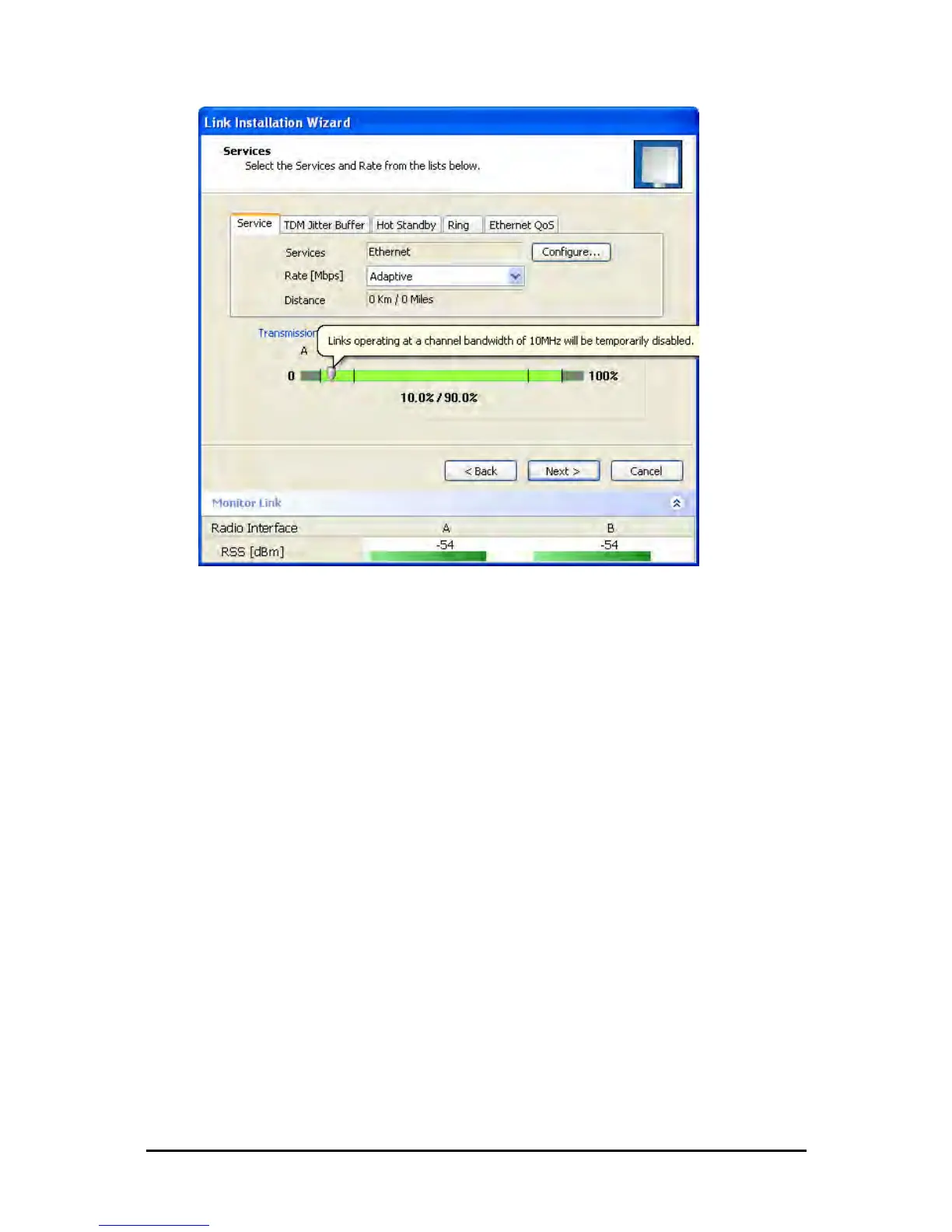

Figure 10-12: Services and Rates - FibeAir 2000 100 master, FibeAir 2000 clients - Extreme
asymmetric allocation
By restricting one direction into the restricted area, the more distant sites may not
even be able to sustain the link much less send or receive data.
• Asymmetric Allocation and Collocation: If the link is collocated, the use of Asymmetric
Allocation is limited.
The effective available range for Asymmetric Allocation (between the two circled tick
in Figure 10-11) is primarily determined by three factors:
• The RFP in use (B or E)
• Channel Bandwidth
• Link distance
The first two parameters are entered during Link
Installation/Configuration.
• Possible scenarios are shown in Table 10-4.Whenever Asymmetric Allocation is avail-
able, it is static for all traffic conditions.
