Ceragon FA4800 - Figure 18-3 G

To Next Page

To Previous Page

External Lightning Surge Suppressors and Grounding Chapter 18

FA4800 User Manual Release 1.9.40 18-5

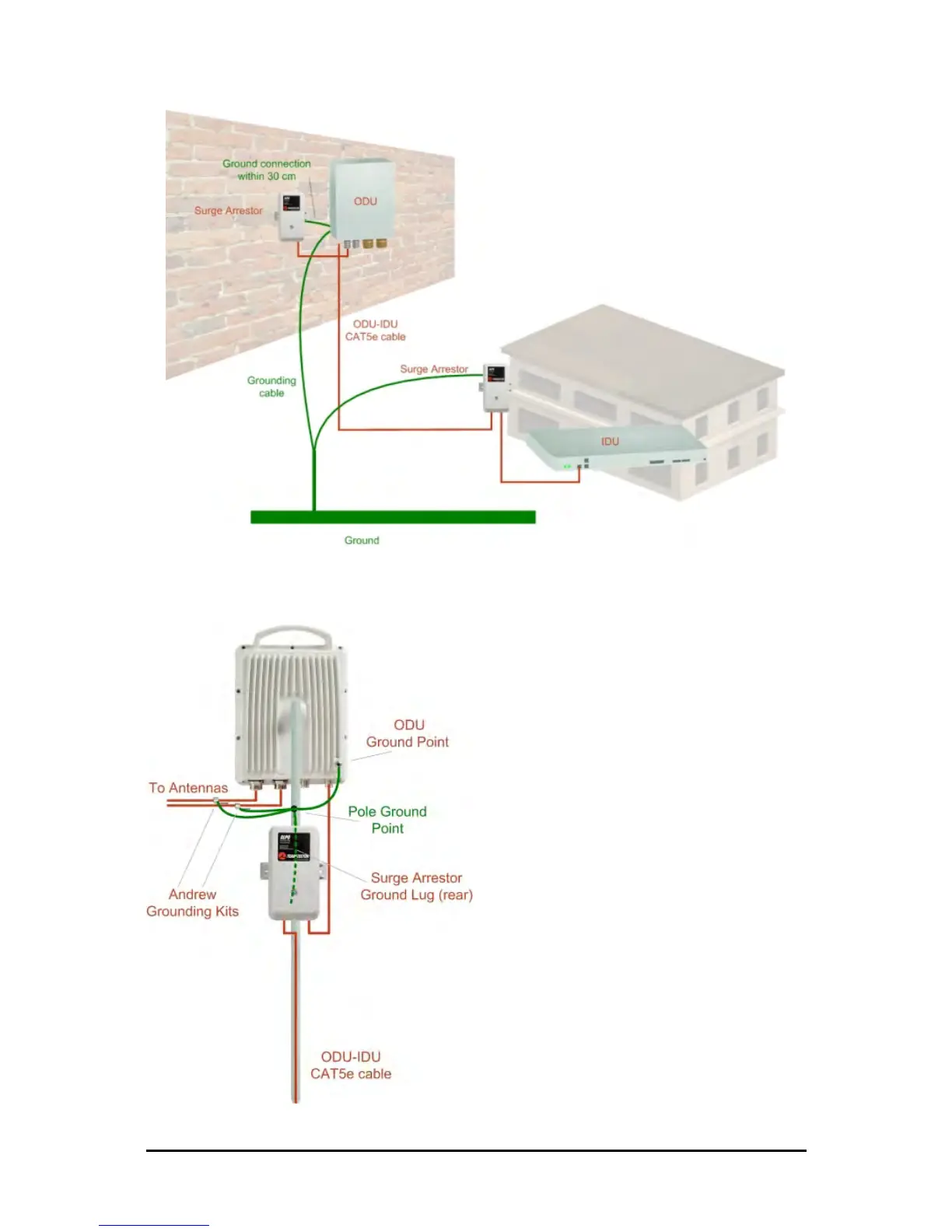

Figure 18-3: Grounding a typical wall installation

The next figure shows a close-up of the rear of grounded ODU:

Figure 18-4: ODU Surge Suppressor and grounding
