The procedure Chapter 19

FA4800 User Manual Release 1.9.40 19-3

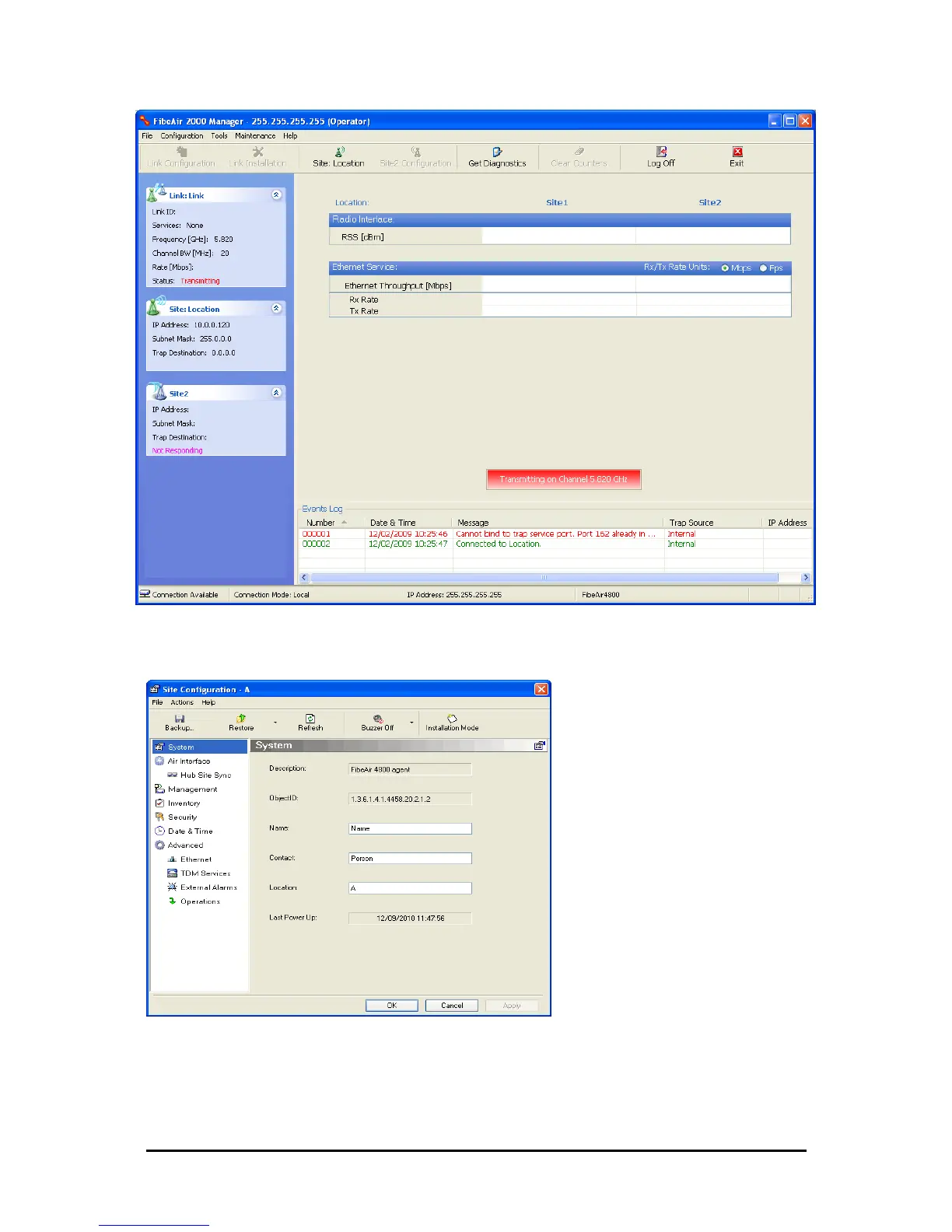

Figure 19-2: Opening FibeAir2000 Manager window prior to installation

8. Click the un-grayed Site:Location button. The following dialog window appears:

Figure 19-3: Configuration Dialog Box

9. Click the Management item in the left hand panel. The following window is pre-

sented:
