FA4800 User Manual Release 1.9.40 12-1

Chapter 12

Monitored Hot Standby

Installation Procedure

What is a Ceragon Monitored Hot Standby

The Ceragon Monitored Hot Standby (MHS a.k.a 1+1) is a duplicated link set up as a primary

link and a secondary link in hot standby mode as shown in Figure 12-1 below.

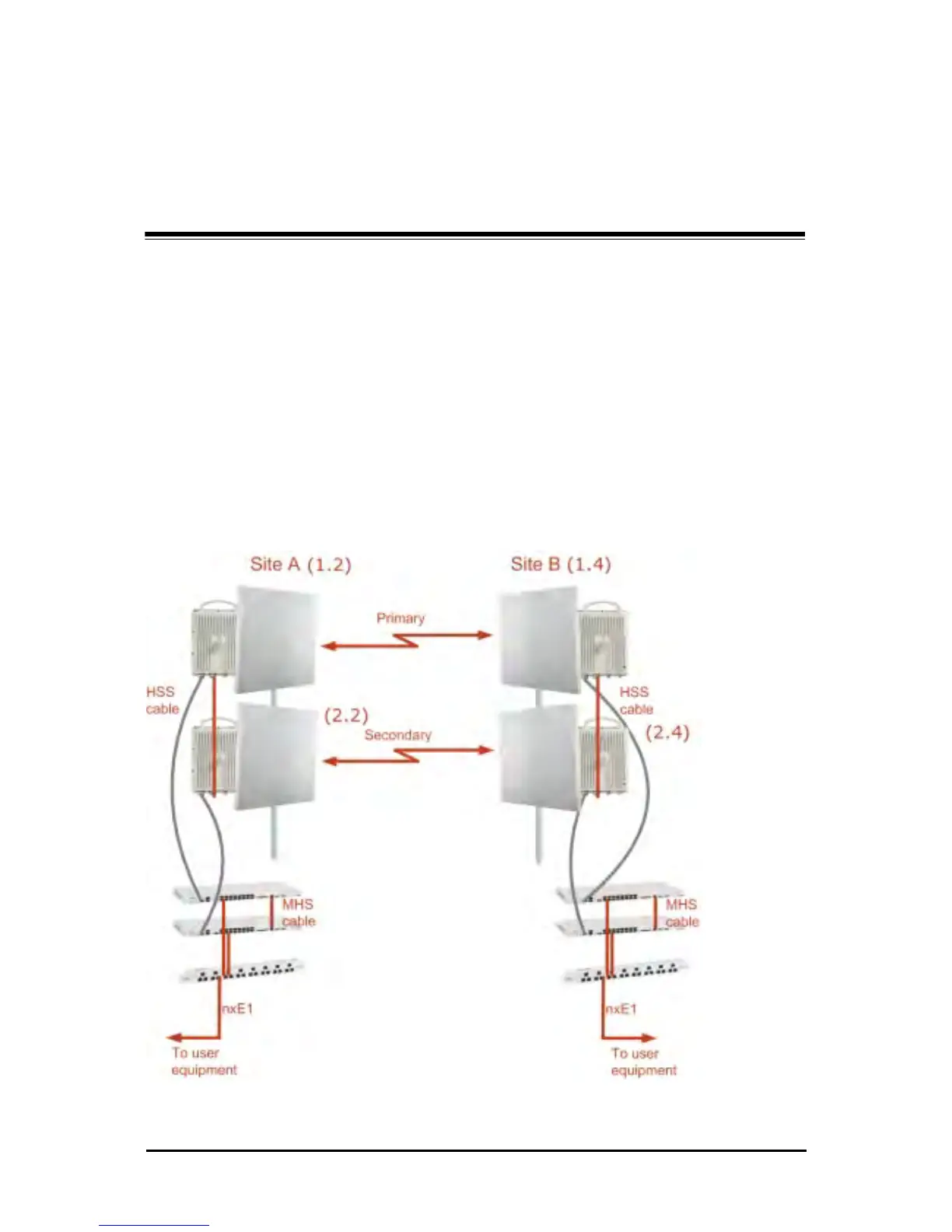

Figure 12-1: Ceragon Monitored Hot Standby
