Running the Link Budget Calculator Chapter 21

FA4800 User Manual Release 1.9.40 21-12

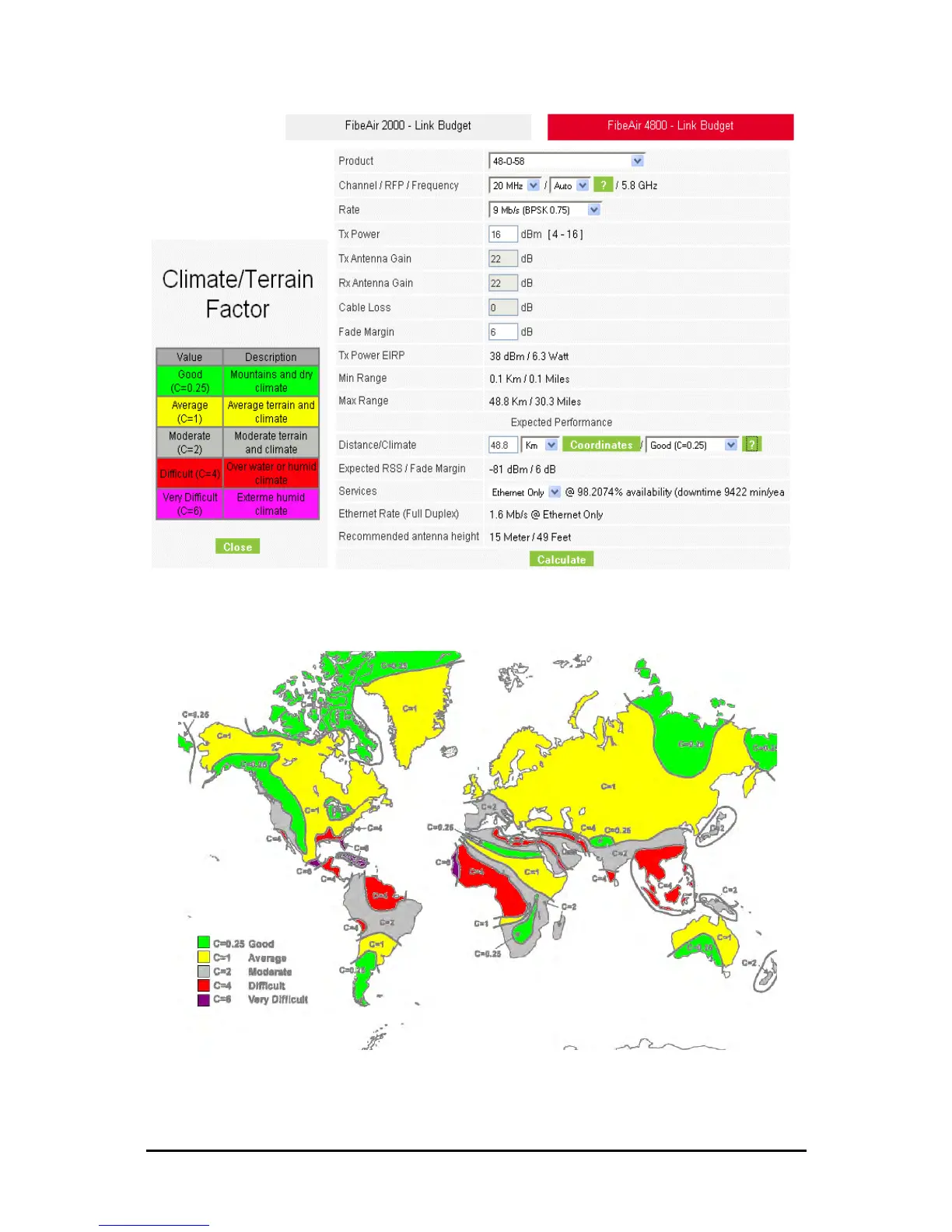

Figure 21-11: Climactic C Factor description

In Figure 21-12 we display a map of the world showing C Factor contours:

Figure 21-12: World map showing C Factor contours

7. Choose the required services:
