Ceragon FA4800 - Figure 21-13 Services Selector

Running the Link Budget Calculator Chapter 21
FA4800 User Manual Release 1.9.40 21-13

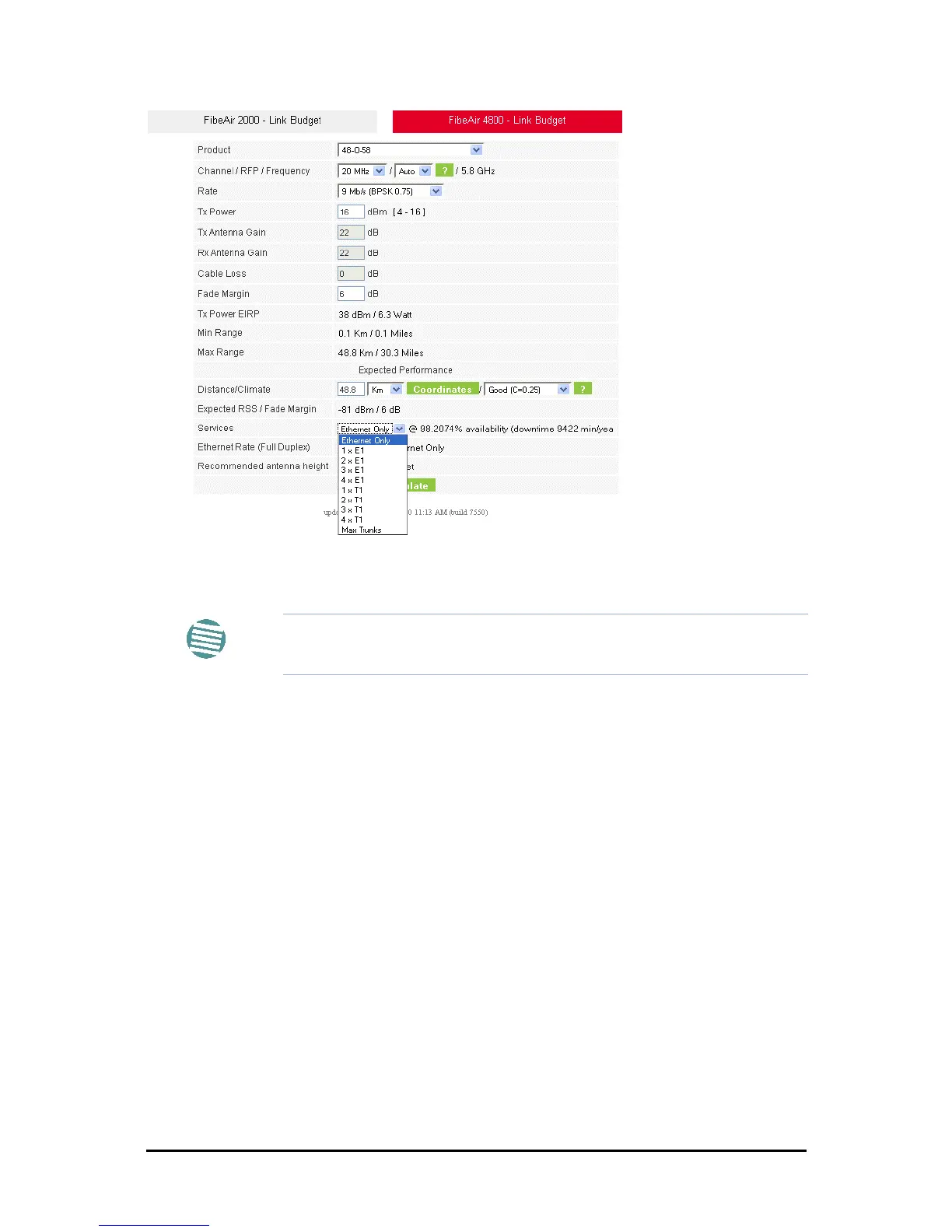

Figure 21-13: Services selector
8. Click Calculate to obtain the required performance estimate.
The Expected Performance parameters are calculated and displayed:
• Expected RSS - the expected RSS that the FibeAir2000 Manager shows when the
FA4800 ODUs are optimally aligned
• Services Type - max number of T1 or E1 trunks if “Max Trunks” is selected
• Ethernet Rate - maximum throughput available for the chosen parameter combina-
tion
• Antenna height for LOS – the minimum antenna height required for line-of-sight
operation. It is the sum of the height required for boresight clearance due to the
earth’s curvature plus the height required to clear the Fresnel zone
If the expected performance is not suitable for your application, try different parameters and
repeat the calculation.
Note
Placing the cursor in any other calculated field will also update the
calculated results.
