Installing Cascaded Links Chapter 24
FA4800 User Manual Release 1.9.40 24-2

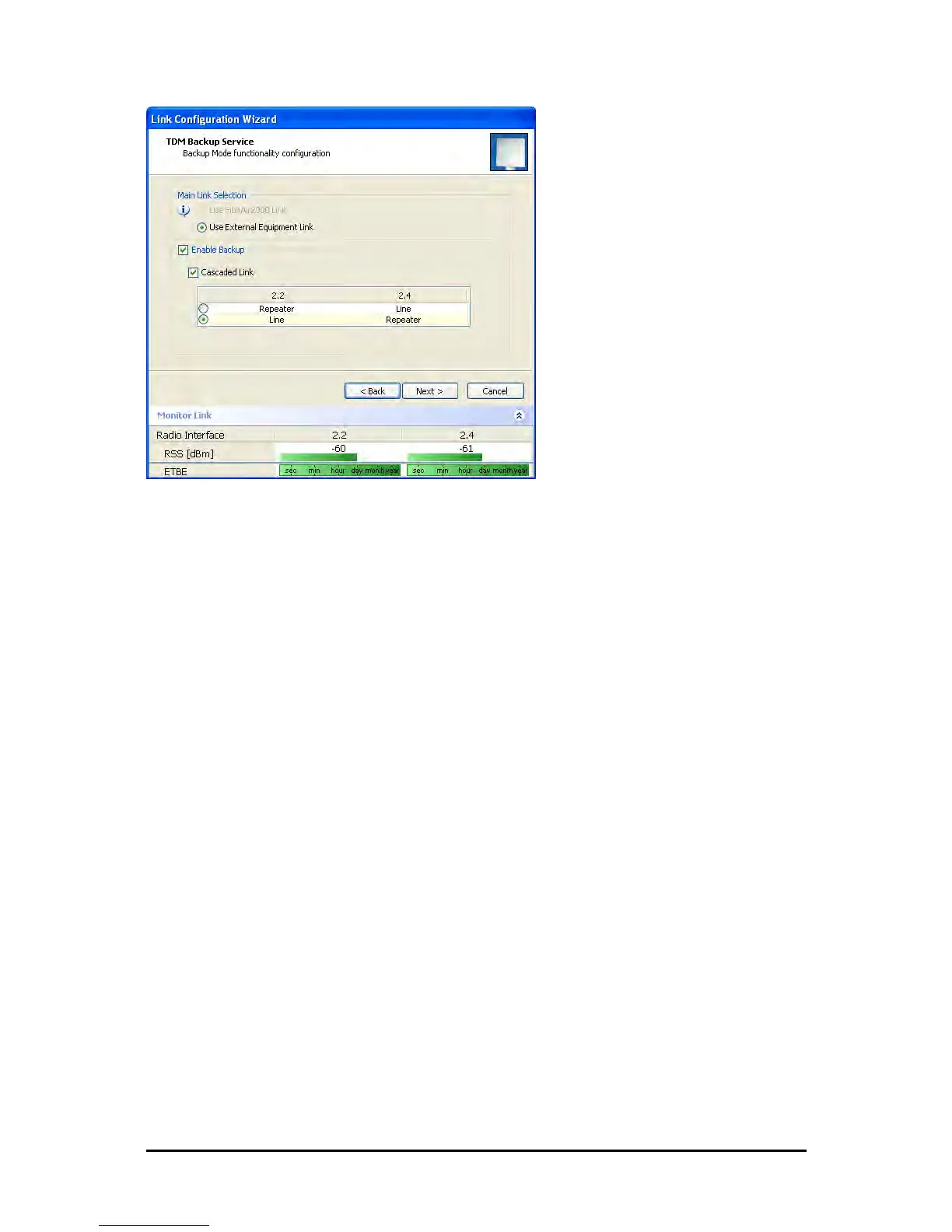

Figure 24-2: Configuring an IDU-R in a cascaded link
To backup a single hop, leave Cascaded Link unchecked. In a cascaded situation, check it
and then chose the Line / Repeater combination that reflects your setup.
You should repeat this procedure for the second link, making sure that your definition of Line
/ Repeater IDU-Rs is consistent.
