Running the Link Budget Calculator Chapter 21

FA4800 User Manual Release 1.9.40 21-8

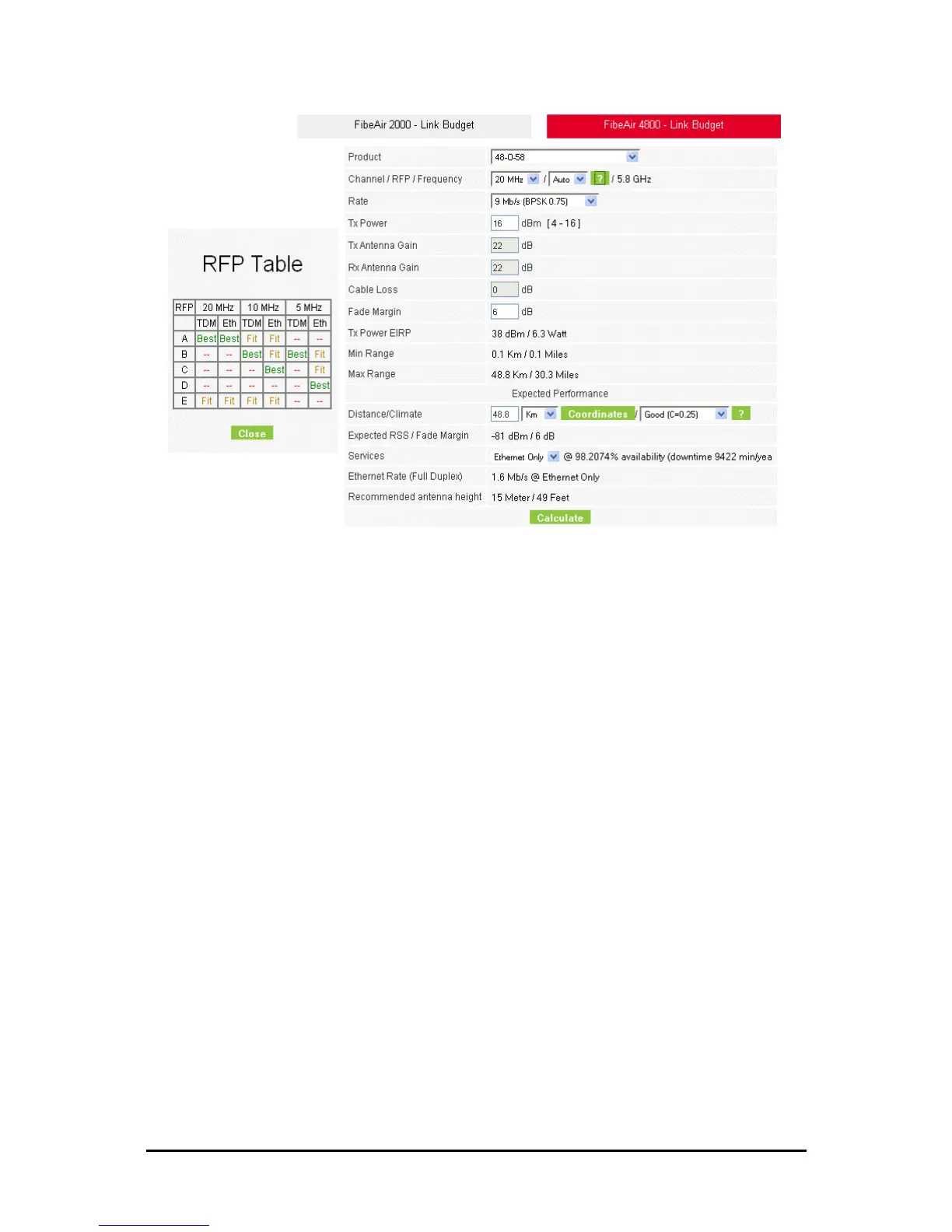

Figure 21-7: RFP Selection Guide

You must select E for a Hub Site containing FibeAir 2000 links.

4. Enter the radio details. Note that Rate is chosen from a drop-down list:
