Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)

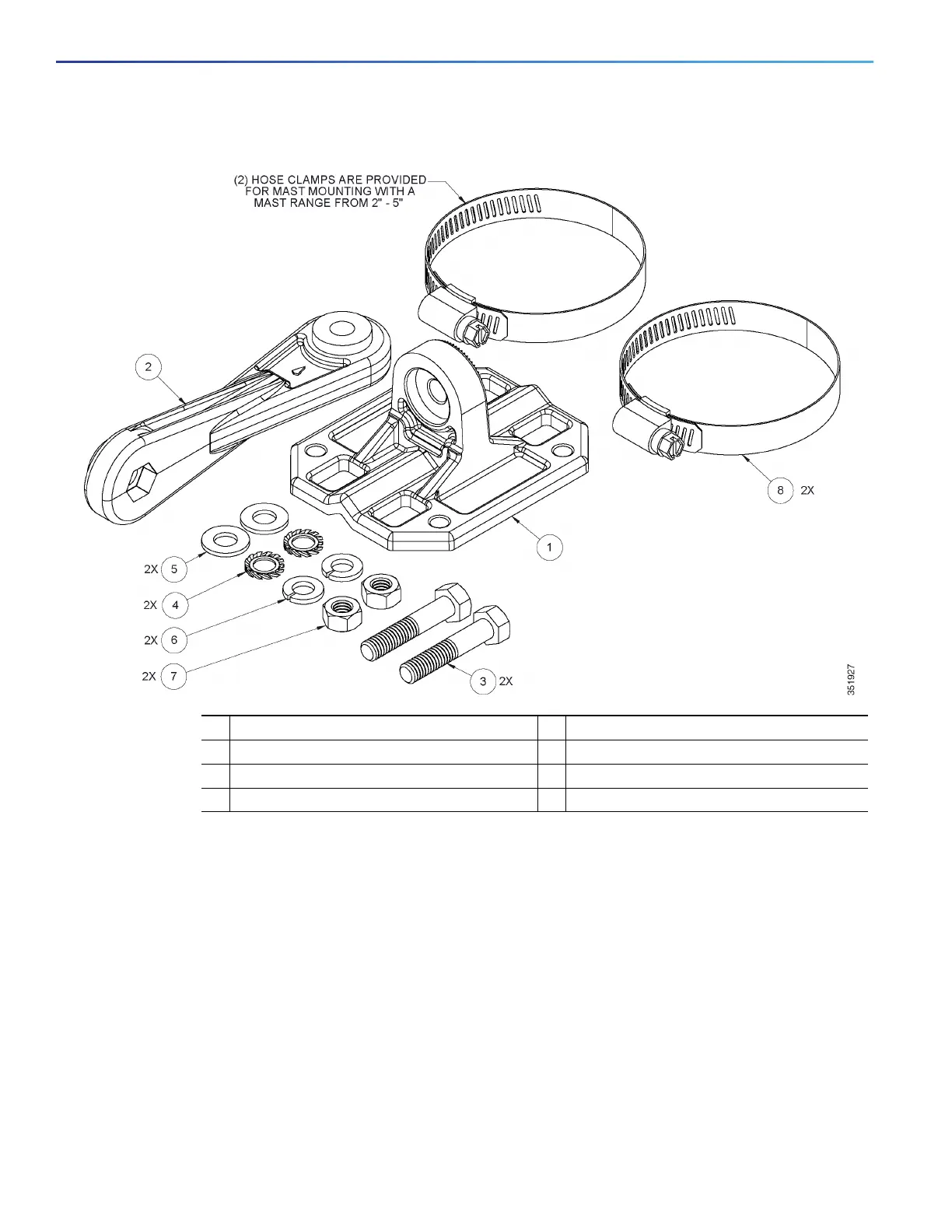

Figure 4 Antenna Bracket Kit Contents
NOTE: One flange (not pictured here) ships attached to the antenna. The flange pictured here is the one that you attach to the
wall or the pole.
Tools and Equipment Required
You will need these tools to loosen and tighten the adjustment bolts on the bracket:
 A 1/2 in. (13-mm) wrench or socket
To mount the antenna on a wall or ceiling, you will need these supplies:
 Four mounting screws or bolts and wall anchors
NOTE: The fasteners and mounting surface should be capable of maintaining a minimum pullout force of 150 pounds (68 kg) to
support the weight of the antenna and bracket plus the potential wind loading on the antenna.
To mount the antenna on a pole or mast, you will need either or both of these supplies:
1 Mounting flange 5 Flat washers
2 Mounting arm 6 Lock washers
3 Arm attachment bolts (5/16-18 x 1-5/8") 7 Arm attachment nuts (5/16-18)
4 Serrated washers 8 Hose clamps (50 – 135 mm adjustment)
