Cisco Aironet 8-dBi Omni-Directional Antenna (AIR-ANT2480V-N)
Technical Specifications
Table 2 on page 146 lists the minimum required attenuation between the access point radio and the antenna when using the
lowest RF power setting. Using a higher RF power setting will require additional attenuation (for a given antenna).
Table 1 Specifications
Antenna type Omni-directional
(collinear array)
Operating frequency range 2400–2484 MHz
VSWR < 1.7:1
Gain 8 dBi
Polarization Linear, vertical
Horizontal half-power
beamwidth
10 degrees
Vertical half-power
beamwidth
Omni-directional
Length 19-1/2 in. (49.5
cm)
Tube diameter 3/4 in. (1.91 cm)
Cable length and type none
Connector N-male
Operating temperature –22 to 158° F
(–30 to +70° C)
Wind rating 100 mph
operational,
165 mph gusts
(160–265 km/h)

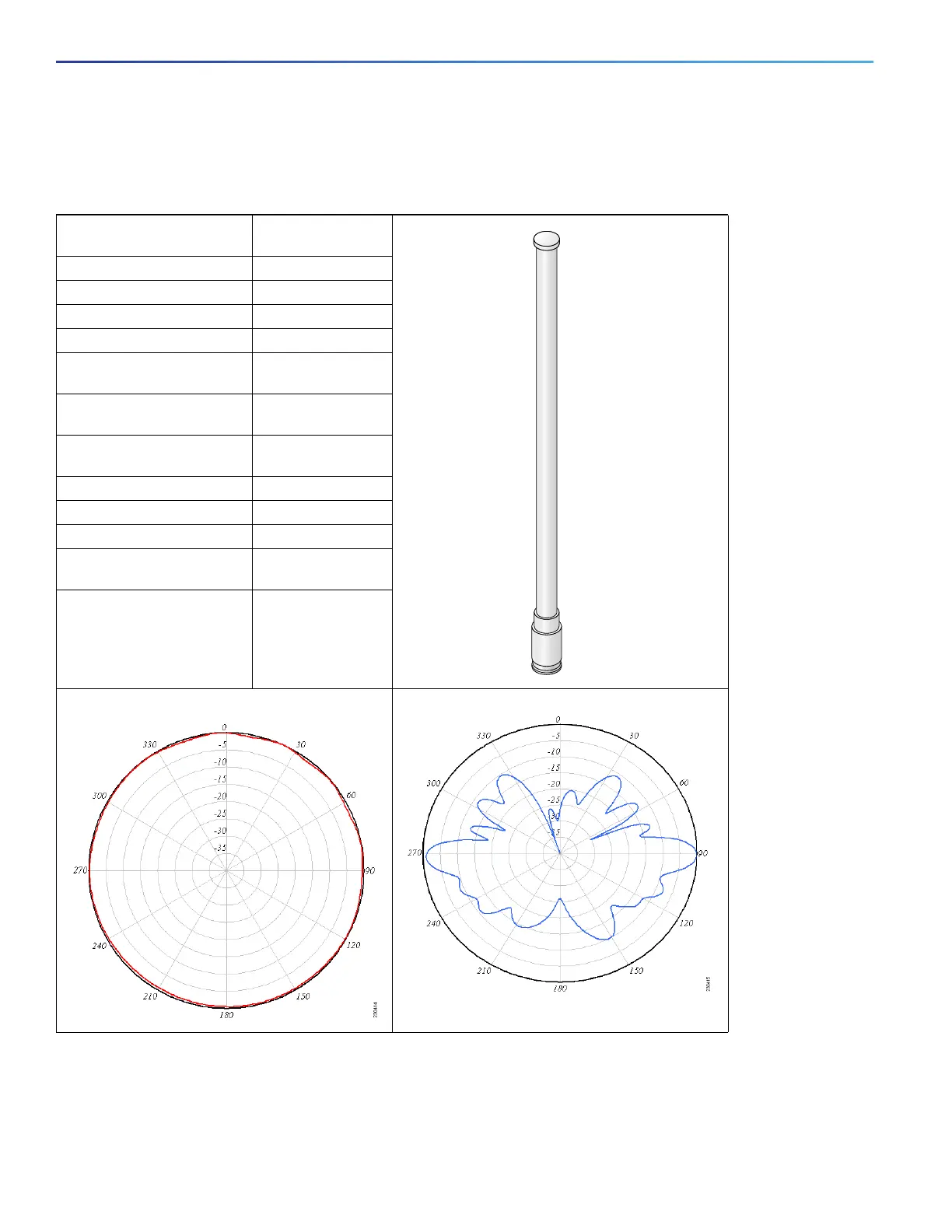

Azimuth Radiation Pattern Elevation Radiation Pattern
230540
