Cisco Outdoor Omni Antenna for 900 MHz WPAN (ANT-WPAN-OM-OUT-N)

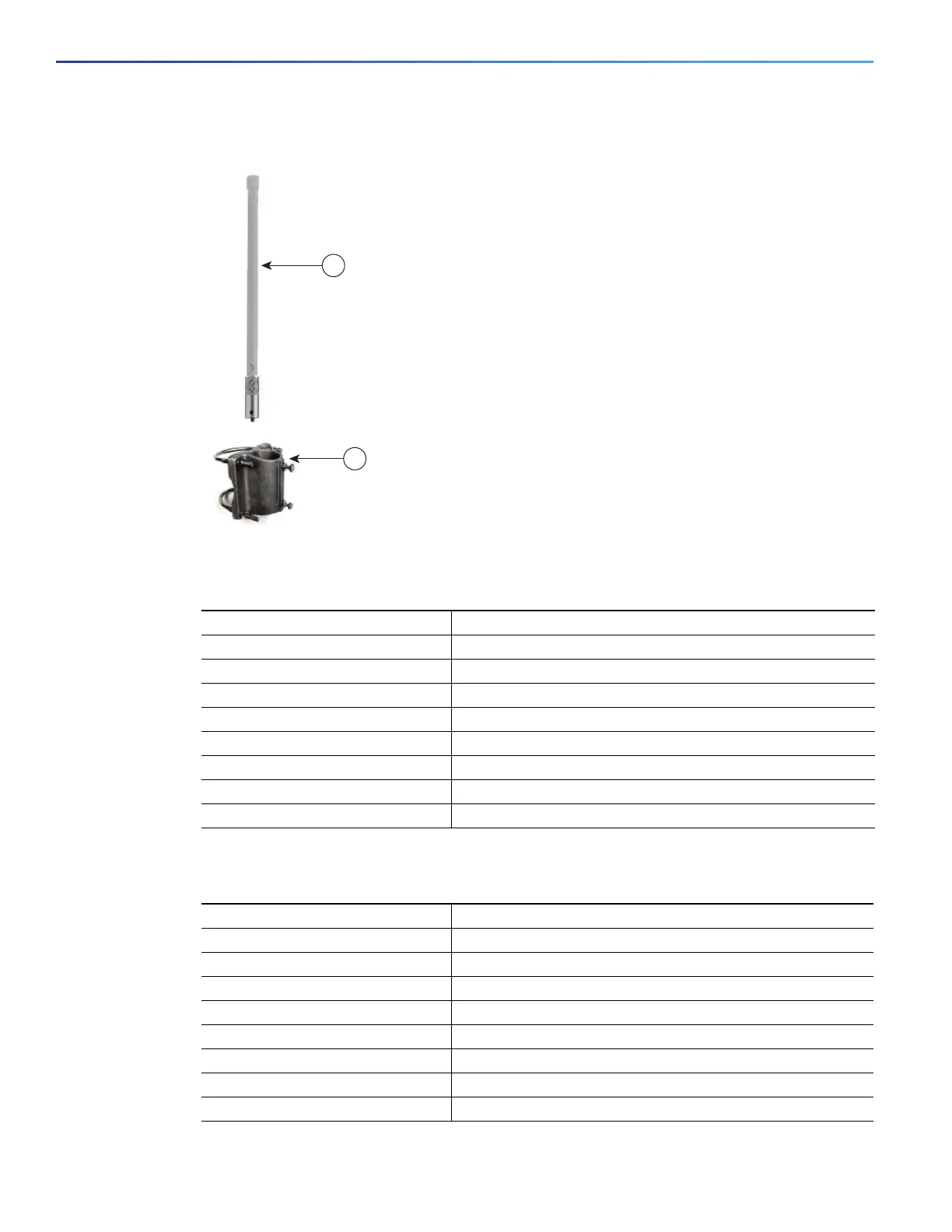

Figure 1 Outdoor Omnidirectional Antenna
RF Specifications
Mechanical Specifications
Specification Description
Frequency range 902 to 928 MHz
Nominal gain (dBi) 4 dBi
Vertical beamwidth 30 degrees
Horizontal beamwidth 360 degrees
Normal impedance 50 ohms
Polarization Vertical, linear
VSWR 1.5 typical, 2.0 max
Radiation pattern Omnidirectional
Specification Description
Mount style Adjustable mast or wall mount
Environment Outdoor
Connector Type N female
Antenna length 23.25” (59.1 cm)
Weight 1.5 lbs (.68 kg)
Temperature range -40 to 185-degrees F (-40 to 85 degrees C)
Bending moment at rated wind 4.7 lbf
Equivalent flat plate area .12 sf
300663
1
2

Cisco AIR-ANT2544V4M-R Specifications
