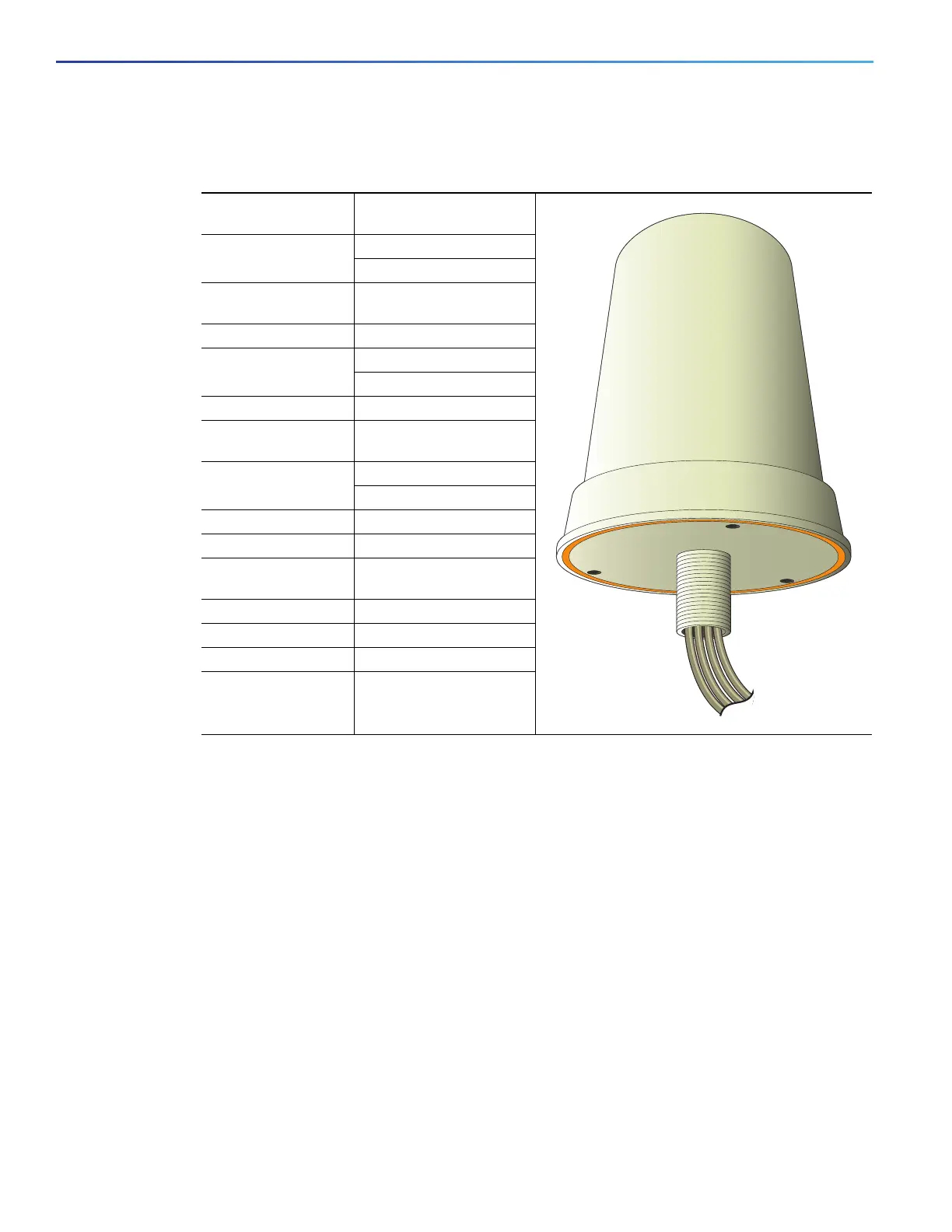

Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
Technical Specifications
The figures below show the azimuth plane patterns (indicated by red lines) and elevation plane patterns (indicated by blue lines)
for each element in the antenna.
Antenna type 4-element MIMO
omnidirectional
Operating frequency
range
2400–2484 MHz
5150–5850 MHz
Nominal input
impedance
50 Ohms
VSWR 2:1 or less
Peak gain 2.4-GHz band: 4 dBi
5-GHz band: 4 dBi
Polarization Linear, vertical
Azimuth plane
(3 dB beamwidth)
Ominidirectional
Elevation plane
(3 dB beamwidth
2.4-GHz band: 60°
5-GHz band: 33°
Length 8.6 in (21.8 cm)
Diameter 6.3 in (16 cm)
Weight Antenna: 1.48 lb.
(671.5 g);
Cable 3 foot (91.4 cm) plenum
Connector RP-TNC
Environment Indoor/outdoor
Temperature range -22° F to 158° F
(-30° C to 70° C)
