Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)

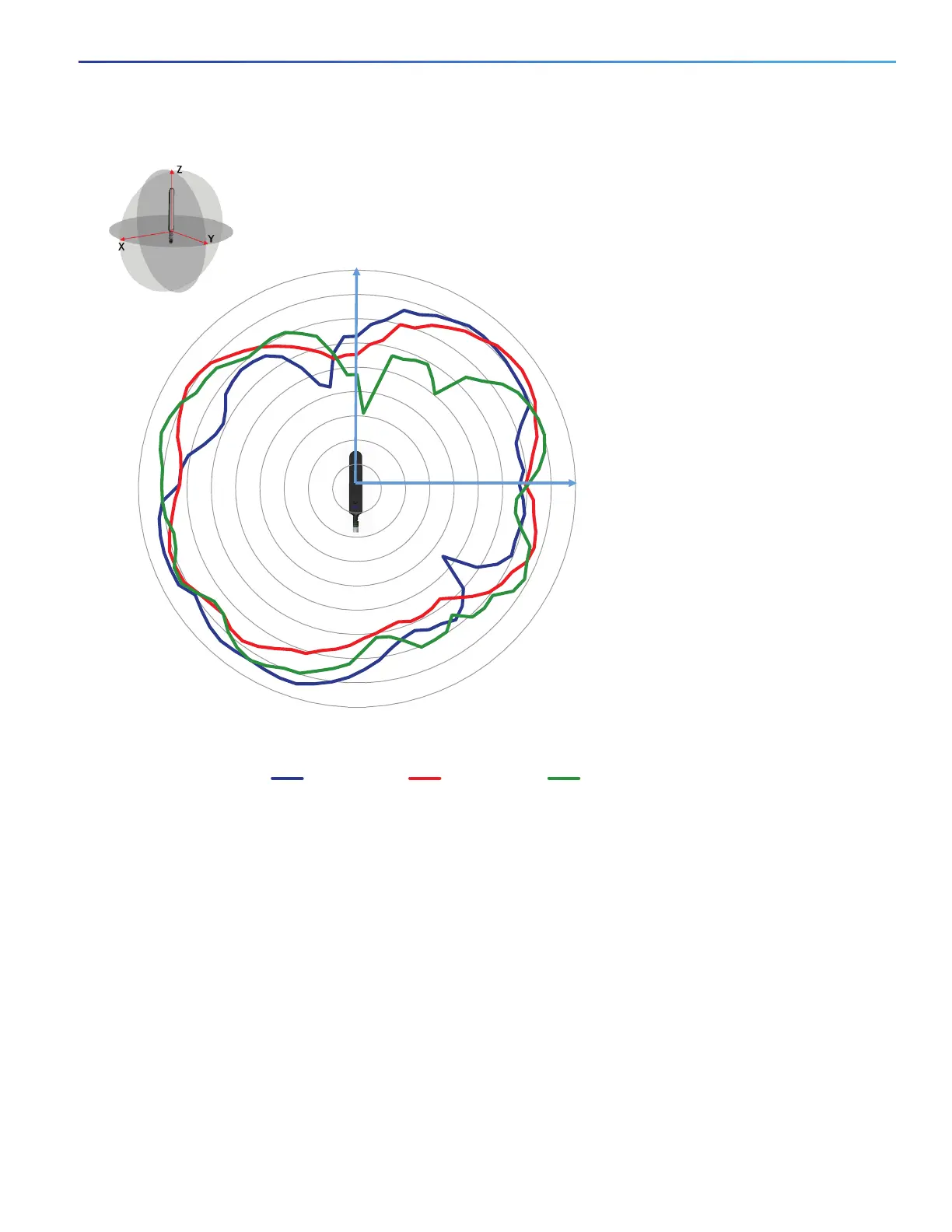

Figure 7 1710, 2170, 2690 MHz Antenna Radiation Pattern (dBi), Elevation, Phi = 90
Safety Instructions
Warning: IMPORTANT SAFETY INSTRUCTIONS
A warning means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware
of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.
SAVE THESE INSTRUCTIONS
Follow these safety instructions when installing the antenna.
Antenna Installation Warning
Warning: In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of
7.9 inches (20 cm) or more from the body of all persons.
Warning: When installing or replacing the unit, the ground connection must always be made first and disconnected last.
-40
-35
-30
-25
-20
-15
-10
-5
0
5
0
30
60
90
120
150
180
210
240
270
300
330
Theta Angle (°)
YZ Plane
366536
( niaGdBi)
Z
Y
1710MHz 2170MHz 2690MHz
-4.53
2.10
125
-4.42
1.83
95
-4.65
1.88
110
Avg (dBi) =
Peak (dBi) =
Avg -3 (deg) =
1710MHz
Avg (dBi) =
Peak (dBi) =
Avg -3 (deg) =
2170MHz
Avg (dBi) =
Peak (dBi) =
Avg -3 (deg) =
2690MHz
